Microchip Technology PIC16F690-I/SS

Part No.:: PIC16F690-I/SS

Manufacturer:: Microchip Technology

Package:: 20-SSOP (0.209", 5.30mm Width)

Datasheet:: PIC16F690-I/SS.pdf

Description:: IC MCU 8BIT 7KB FLASH 20SSOP

In Stock:: 2450

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC16F690-I/SS Specifications

Package/Case:
20-SSOP (0.209", 5.30mm Width)
Packaging:
Tube
Series:
PIC® 16F
RoHS:
RoHS
Speed:
20MHz
RAM Size:
256 x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
18
Core Processor:
PIC
Data Converters:
A/D 12x10b
Oscillator Type:
Internal
Program Memory Size:
7KB (4K x 14)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC16F690-I/SS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC16F690-I/SS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC16F690-I/SS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC16F690-I/SS information

Views：

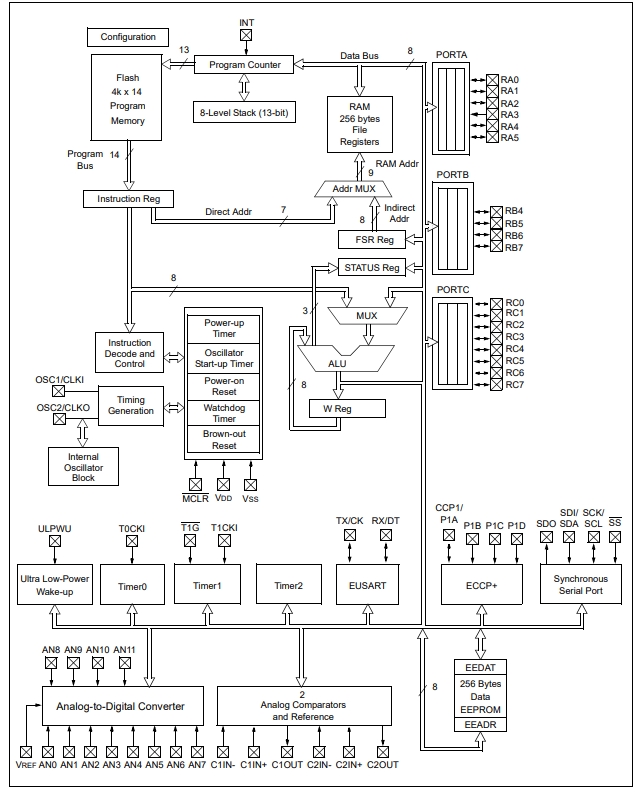

PIC16F690-I/SS Typical application Circuitry

PIC16F690-I SS

The PIC16F690-I/SS is a widely used 8-bit microcontroller from Microchip Technology, part of the PIC16F series. Known for its flexibility and integrated features, it's suitable for a variety of applications, particularly in embedded systems.

Key Features and Parameters of PIC16F690-I/SS:

1. 8-Bit Architecture: Ideal for basic to moderate complexity tasks.

2. Flash Memory: Ample storage for program code.

3. Analog-to-Digital Converters (ADCs): For interfacing with analog sensors.

4. Multiple I/O Pins: Provides great flexibility for various peripheral connections.

5. Integrated Communication Protocols: Supports UART, SPI, and I2C.

6. PWM Output: Useful for motor control or LED dimming.

7. Internal Oscillator: Reduces external component requirements.

8. Low-Power Operation: Suitable for battery-powered devices.

Application Scenario: Home Security System

Let's use the PIC16F690-I/SS in a basic home security system:

1. Sensor Integration:

- Motion Sensor Connection: Attach a motion sensor to one of the ADC pins (AN0 - PIN 17) of the PIC16F690-I/SS for intrusion detection.

- Window/Door Sensor Inputs: Use GPIO pins (RC0, RC1 - PINs 16, 15) for connecting magnetic sensors from windows and doors.

2. Alarm Output Control:

- Siren Control: Utilize a GPIO pin (RC2 - PIN 14) to control a siren or alarm.

- LED Indicators: Connect LEDs to GPIO pins (RC3, RC4 - PINs 13, 12) for system status indication.

3. User Interface:

- Control Buttons: Implement buttons connected to GPIO pins (RA0, RA1 - PINs 19, 18) for system arming/disarming.

- LCD Display: Interface an LCD to I/O pins to display system status and alerts.

4. Power Supply and Grounding:

- Voltage Regulation: Connect a stable power supply to VDD (PIN 20) and ground to VSS (PIN 8).

5. Communication for Remote Monitoring:

- Serial Communication: Use UART pins (TX, RX - PINs 9, 10) for remote communication with a monitoring center or smartphone app.

Design Considerations:

1. Reliability: Ensure the PIC16F690-I/SS-based system operates reliably under various conditions.

2. Power Efficiency: Optimize for low power consumption, especially if battery operated.

3. User Accessibility: Design a user-friendly interface for ease of use.

4. Sensor Accuracy: Ensure accurate and false-alarm-free sensor readings.

5. Safety Features: Include circuit protection mechanisms to safeguard the system.

In conclusion, the PIC16F690-I/SS microcontroller is an effective choice for creating a basic home security system, offering the necessary features for control, interfacing, and communication. This detailed guide outlines the integration of the PIC16F690-I/SS into a security system, emphasizing reliability, user interaction, and efficient operation.
