Microchip Technology PIC16F690-I/ML

Part No.:: PIC16F690-I/ML

Manufacturer:: Microchip Technology

Package:: 20-VFQFN Exposed Pad

Datasheet:: PIC16F690-I/ML.pdf

Description:: IC MCU 8BIT 7KB FLASH 20QFN

In Stock:: 3764

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC16F690-I/ML Specifications

Package/Case:
20-VFQFN Exposed Pad
Packaging:
Tube
Series:
PIC® 16F
RoHS:
RoHS
Speed:
20MHz
RAM Size:
256 x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
18
Core Processor:
PIC
Data Converters:
A/D 12x10b
Oscillator Type:
Internal
Program Memory Size:
7KB (4K x 14)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC16F690-I/ML this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC16F690-I/ML price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC16F690-I/ML to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC16F690-I/ML information

Views：

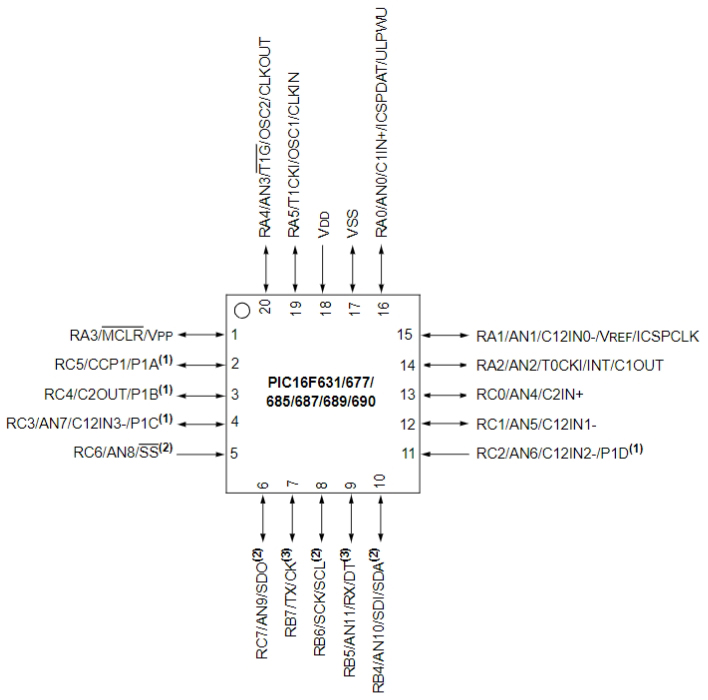

PIC16F690-I/ML Typical application Circuitry

PIC16F690-I ML

The PIC16F690-I/ML is a versatile microcontroller (MCU) designed by Microchip Technology, which is part of their PIC16F family. This MCU is well-suited for a broad range of applications, thanks to its compact size, efficiency, and rich set of features.

Key Features:

- 8-bit Processor: Efficient for controlling a wide array of applications with sufficient computational power for a multitude of tasks.

- Flash Memory: Comes with 7 KB of flash memory, providing ample space for application code.

- RAM and EEPROM: Features 256 bytes of RAM and 256 bytes of EEPROM, useful for temporary data storage and non-volatile storage needs.

- I/O Pins: Offers up to 20 I/O pins, allowing for robust peripheral device control.

- ADCs and Communication Interfaces: Equipped with a 10-bit Analog-to-Digital Converter (ADC) with up to 12 channels and communication interfaces such as SPI, I2C, and USART for versatile peripheral and sensor integration.

Application Scenario - Simple Weather Station:

A simple weather station represents an ideal application for the PIC16F690-I/ML, capable of monitoring temperature, humidity, and atmospheric pressure.

Circuit Connection Details:

- Power Supply Connection: The VDD and VSS pins should be connected to a +5V power source and ground, respectively, ensuring the PIC16F690-I/ML receives the necessary power for operation.

- Temperature Sensor Interface: Connect a temperature sensor, like the LM35, to an ADC input pin (e.g., AN0). This setup enables the MCU to measure ambient temperature.

- Humidity Sensor: A humidity sensor, such as the HIH-4000, can be interfaced with another ADC input pin (e.g., AN1) to monitor the humidity level.

- Barometric Pressure Sensor: An I2C barometric pressure sensor, like the BMP280, can be connected to the SDA and SCL pins, allowing the MCU to track atmospheric pressure.

- Programming Pins: For uploading firmware to the PIC16F690-I/ML, the PGD (Program Data) and PGC (Program Clock) pins are utilized. These should be connected to a compatible programmer, like the MPLAB ICD or PICkit. The MCLR pin is also crucial for device resetting during programming.

- LCD Display Interface: An LCD display can be connected to several I/O pins (e.g., RB0-RB7 for an 8-bit interface) for data visualization, displaying temperature, humidity, and pressure readings in real-time.

Design Considerations:

- Power Decoupling: It's crucial to include decoupling capacitors near the power pins of the PIC16F690-I/ML to minimize power supply noise and ensure stable operation.

- Sensor Calibration: Calibration routines may be necessary for the sensors to ensure accurate readings, which involves both hardware setup and software algorithms.

- LCD Contrast Adjustment: For the LCD display, a potentiometer may be required to adjust the contrast, ensuring the display is readable under various lighting conditions.

- I2C Pull-up Resistors: Remember to add pull-up resistors on the SDA and SCL lines when interfacing with I2C devices like the BMP280 to ensure proper communication.

- Programming and Debugging Access: Ensure that the programming pins are easily accessible for updates and troubleshooting, possibly including a header on the PCB for connecting the programmer/debugger.

By addressing these design elements, developers can create a functional and reliable simple weather station using the PIC16F690-I/ML, showcasing the microcontroller's capabilities in sensor interfacing, data processing, and user interaction.
