Microchip Technology PIC16F1938-I/SO

Part No.:: PIC16F1938-I/SO

Manufacturer:: Microchip Technology

Package:: 28-SOIC (0.295", 7.50mm Width)

Datasheet:: PIC16F1938-I/SO.pdf

Description:: IC MCU 8BIT 28KB FLASH 28SOIC

In Stock:: 3736

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC16F1938-I/SO Specifications

Package/Case:
28-SOIC (0.295", 7.50mm Width)
Packaging:
Tube
Series:
PIC® XLP™ 16F
RoHS:
RoHS
Speed:
32MHz
RAM Size:
1K x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, LCD, POR, PWM, WDT
Connectivity:
I²C, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
25
Core Processor:
PIC
Data Converters:
A/D 11x10b
Oscillator Type:
Internal
Program Memory Size:
28KB (16K x 14)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC16F1938-I/SO this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC16F1938-I/SO price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC16F1938-I/SO to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC16F1938-I/SO information

Views：

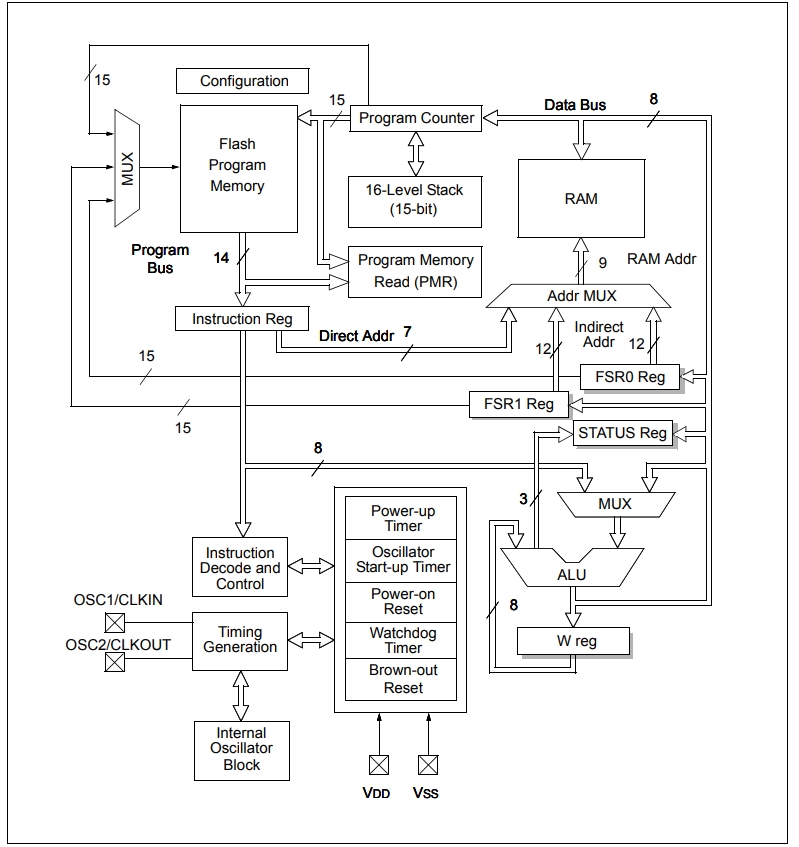

PIC16F1938-I/SO Typical application Circuitry

PIC16F1938-I SO

The PIC16F1938-I/SO is a versatile and efficient microcontroller chip from Microchip Technology, belonging to the well-established PIC16F series. This 8-bit microcontroller is recognized for its integration of advanced features, making it suitable for a wide range of applications where compact design and multifunctionality are essential.

Features of the PIC16F1938-I/SO

- Microcontroller Type: 8-bit, part of the PIC16F series.

- Adaptability: Designed for a variety of complex electronic control tasks.

Application Scenarios for the PIC16F1938-I/SO

- Consumer Electronics: Ideal for intricate home appliances and smart devices.

- Automotive Electronics: Useful in various automotive control systems.

- Industrial Automation: Perfect for automated processes and machinery control in industrial environments.

Key Specifications of the PIC16F1938-I/SO

- Memory and Processing Speed: Equipped with 14 KB of flash memory and operates at up to 32 MHz.

- Voltage and I/O Pins: Functions within a 1.8 to 5.5 volts range, offering 35 I/O pins.

- Programming Interface: Supports In-Circuit Serial Programming (ICSP).

Example Application: Automated Environmental Monitoring System

- Utilize the PIC16F1938-I/SO to create a comprehensive environmental monitoring system.

Detailed Circuit Configuration

1. Power Supply Connection:

- VDD (pin 1) connected to a 5V power source.

- VSS (pin 20) linked to ground.

2. Sensor Network for Monitoring:

- Attach temperature, humidity, and air quality sensors to GPIO pins 21, 22, and 23 (RC0, RC1, RC2).

3. Data Logging and Processing:

- Connect data storage and processing modules to GPIO pins 24 and 25 (RC3, RC4).

4. Display and User Interface:

- Implement a display and control buttons on GPIO pins 26-31 (RC5, RC6, RD0-RD2) for system status and manual overrides.

5. Wireless Communication Module:

- Link a Wi-Fi or Bluetooth module to GPIO pins 32-34 (RD3-RD5) for remote data access.

6. Programming Pins for the Microcontroller:

- Use PGD (pin 27) and PGC (pin 28) for ICSP programming.

Design Considerations

- Stable Power Source: Ensure the power supply is within the PIC16F1938-I/SO's voltage specifications.

- Efficient I/O Pin Usage: Strategically plan the I/O pins for sensor interfaces, data processing, and user interaction.

- Programming and Maintenance Accessibility: Design the circuit with accessible ICSP pins for easy firmware updates and troubleshooting.

By following these guidelines, the PIC16F1938-I/SO can be effectively used in an automated environmental monitoring system, demonstrating its capability to handle complex control tasks in diverse electronic environments.
