Microchip Technology PIC16F18323-I/ST

Part No.:: PIC16F18323-I/ST

Manufacturer:: Microchip Technology

Package:: 14-TSSOP (0.173", 4.40mm Width)

Datasheet:: PIC16F18323-I/ST.pdf

Description:: IC MCU 8BIT 3.5KB FLASH 14TSSOP

In Stock:: 3648

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC16F18323-I/ST Specifications

Package/Case:
14-TSSOP (0.173", 4.40mm Width)
Packaging:
Tube
Series:
PIC® XLP™ 16F
RoHS:
RoHS
Speed:
32MHz
RAM Size:
256 x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
12
Core Processor:
PIC
Data Converters:
A/D 11x10b; D/A 1x5b
Oscillator Type:
Internal
Program Memory Size:
3.5KB (2K x 14)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC16F18323-I/ST this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC16F18323-I/ST price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC16F18323-I/ST to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC16F18323-I/ST information

Views：

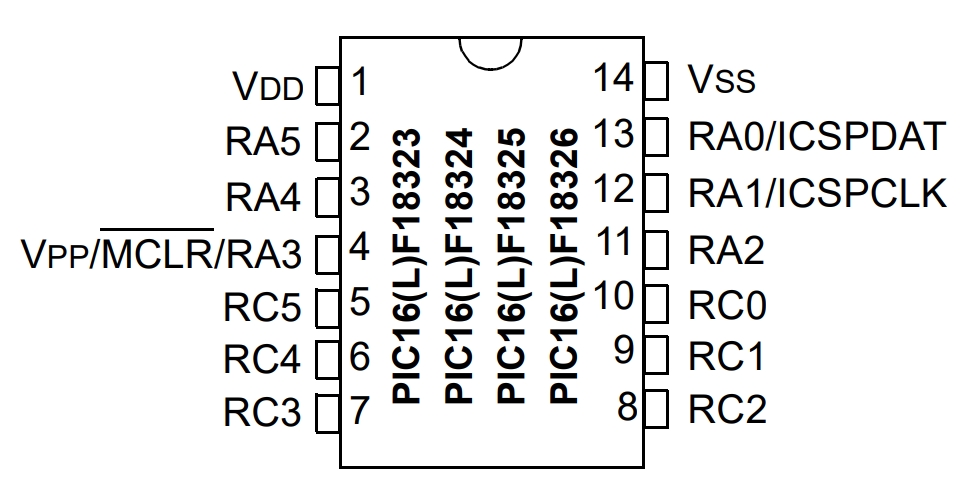

PIC16F18323-I/ST Typical application Circuitry

PIC16F18323-I ST

The PIC16F18323-I/ST is a highly efficient microcontroller (MCU) produced by Microchip Technology, notable for its advanced 8-bit processing power, significant storage capabilities, and an extensive assortment of embedded features. This MCU is particularly suitable for complex applications where robust control, sophisticated data handling, and connectivity are crucial, such as in advanced automation systems, interconnected IoT devices, and complex consumer electronics.

Notable Specifications of the PIC16F18323-I/ST:

- The MCU operates within an extensive voltage range of 1.8V to 5.5V, allowing flexibility across different power settings.

- It is equipped with up to 8 KB of flash memory for program storage and 256 bytes of EEPROM for data storage.

- The device comes with a 10-bit, 17-channel ADC, enabling it to interface efficiently with numerous analog sensors.

- It is loaded with various peripherals, including timers, PWM modules, and advanced serial communication interfaces like USART, SPI, and I2C, enhancing its adaptability.

Application Scenario: Automated Irrigation System

Consider the development of an automated irrigation system using the PIC16F18323-I/ST, designed to manage watering schedules and moisture levels in agricultural or garden settings.

Comprehensive Circuit Connection Layout:

1. Power Integration Setup:

- Attach the VDD pin of the PIC16F18323-I/ST to a stable 5V power source.

- Connect the VSS pin to the ground to provide a common ground for the entire circuit.

2. Soil Moisture Sensor Connectivity:

- Connect a soil moisture sensor to one of the analog input pins, such as RA1 (pin 12). This allows the PIC16F18323-I/ST to monitor and analyze the moisture level in the soil.

3. Water Valve Control:

- Interface a solenoid valve with an I/O pin, for instance, RA2 (pin 11), to regulate the water flow in the irrigation system. Utilize a transistor to drive the solenoid and a diode to prevent reverse voltage spikes.

4. Programming and Debugging Configuration:

- The PIC16F18323-I/ST is programmed using the ICSP (In-Circuit Serial Programming) approach. Connect the PGD (pin 13) and PGC (pin 14) pins to the respective data and clock lines of the programmer.

- The MCLR pin (pin 4) should be connected to the programming voltage during programming and also coupled with a pull-up resistor connected to VDD during normal operation.

Circuit Design Considerations:

- Efficient power management is essential, especially for systems that might operate on battery power or solar energy. Utilize the power-saving features of the PIC16F18323-I/ST and ensure that peripherals like sensors and valves are not consuming power when inactive.

- When interfacing with the soil moisture sensor, ensure accurate signal conditioning and adhere to the timing and data format specified by the sensor's datasheet.

- In designing the control system for the solenoid valve, consider the current requirements and ensure that the transistor can handle the solenoid's activation current without overheating.

- During the programming of the PIC16F18323-I/ST, careful consideration should be given to avoiding interference with other circuit components. Implementing isolation or temporary disconnection of peripherals during programming may be necessary.

In conclusion, the PIC16F18323-I/ST, with its comprehensive features, is an excellent choice for intricate applications such as an automated irrigation system. Careful attention to circuit design, particularly in terms of power management, sensor interfacing, and load handling, is crucial for ensuring a reliable, efficient, and user-friendly system.
