Microchip Technology PIC16F1786-I/SS

Part No.:: PIC16F1786-I/SS

Manufacturer:: Microchip Technology

Package:: 28-SSOP (0.209", 5.30mm Width)

Datasheet:: PIC16F1786-I/SS.pdf

Description:: IC MCU 8BIT 14KB FLASH 28SSOP

In Stock:: 3708

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC16F1786-I/SS Specifications

Package/Case:
28-SSOP (0.209", 5.30mm Width)
Packaging:
Tube
Series:
PIC® XLP™ 16F
RoHS:
RoHS
Speed:
32MHz
RAM Size:
1K x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PSMC, PWM, WDT
Connectivity:
I²C, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
24
Core Processor:
PIC
Data Converters:
A/D 11x12b; D/A 1x8b
Oscillator Type:
Internal
Program Memory Size:
14KB (8K x 14)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC16F1786-I/SS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC16F1786-I/SS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC16F1786-I/SS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC16F1786-I/SS information

Views：

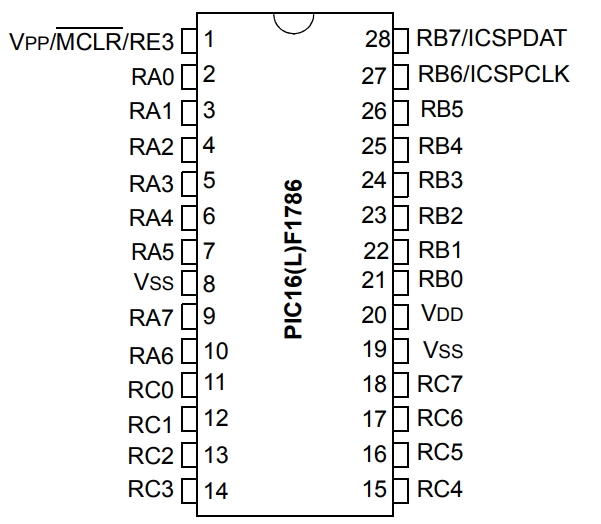

PIC16F1786-I/SS Typical application Circuitry

PIC16F1786-I SS

The PIC16F1786-I/SS is a sophisticated microcontroller chip developed by Microchip Technology, a part of the expansive PIC16F series. This 8-bit microcontroller stands out for its enhanced features and versatility, making it an excellent choice for a wide range of complex applications where both performance and space efficiency are important.

Features of the Chip

- Microcontroller Type: 8-bit, from the PIC16F series.

- Adaptability: Ideal for intricate control tasks in various electronic devices.

Application Domains

- Consumer Electronics: Perfect for advanced home appliances and interactive gadgets.

- Automotive Electronics: Suitable for control systems in automotive applications.

- Industrial Automation: Fits well in complex machinery control systems.

Specifications

- Memory and Processing Speed: Equipped with 14 KB of flash memory and capable of operating at up to 32 MHz.

- Voltage and I/O Configuration: Functions between 1.8 to 5.5 volts, offering 25 I/O pins.

- Programming Interface: Supports In-Circuit Serial Programming (ICSP).

Example Application: Smart Lighting System

Objective

- Design a circuit using the PIC16F1786-I/SS to manage a smart lighting system in a building.

PIC16F1786-I/SS Circuit Connection Details

1. Power Supply Integration:

- Connect VDD (pin 1) to a 5V power source.

- Attach VSS (pin 20) to the ground.

2. Light Control Interface:

- Link various light fixtures to GPIO pins 21, 22, and 23 (RC0, RC1, RC2) using relay modules.

3. Ambient Light Sensing:

- Connect an ambient light sensor to GPIO pin 6 (RA2).

4. User Interface and Connectivity:

- Attach a user interface panel with control buttons and display to GPIO pins 2-5, 7-9 (RA0, RA1, RA3, RA4, RB0, RB1) for manual control and status display.

5. Programming Pins for Firmware Updates:

- Utilize PGD (pin 27) and PGC (pin 28) for ICSP programming of the microcontroller.

PIC16F1786-I/SS Circuit Design Considerations

- Reliable Power Source: Ensure the power supply is consistent with the microcontroller's voltage requirements.

- Effective I/O Pin Management: Plan the use of I/O pins to balance control outputs and sensor inputs efficiently.

- Ease of Programming and Debugging: Design the circuit to allow easy access to programming pins for convenient firmware updates and maintenance.

By adhering to these guidelines, the PIC16F1786-I/SS can be effectively used in a smart lighting system, showcasing its ability to handle complex control tasks in sophisticated electronic environments.
