Microchip Technology PIC16F1513-I/SO

Part No.:: PIC16F1513-I/SO

Manufacturer:: Microchip Technology

Package:: 28-SOIC (0.295", 7.50mm Width)

Datasheet:: PIC16F1513-I/SO.pdf

Description:: IC MCU 8BIT 7KB FLASH 28SOIC

In Stock:: 2847

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC16F1513-I/SO Specifications

Package/Case:
28-SOIC (0.295", 7.50mm Width)
Packaging:
Tube
Series:
PIC® XLP™ 16F
RoHS:
RoHS
Speed:
20MHz
RAM Size:
256 x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
25
Core Processor:
PIC
Data Converters:
A/D 17x10b
Oscillator Type:
Internal
Program Memory Size:
7KB (4K x 14)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC16F1513-I/SO this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC16F1513-I/SO price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC16F1513-I/SO to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC16F1513-I/SO information

Views：

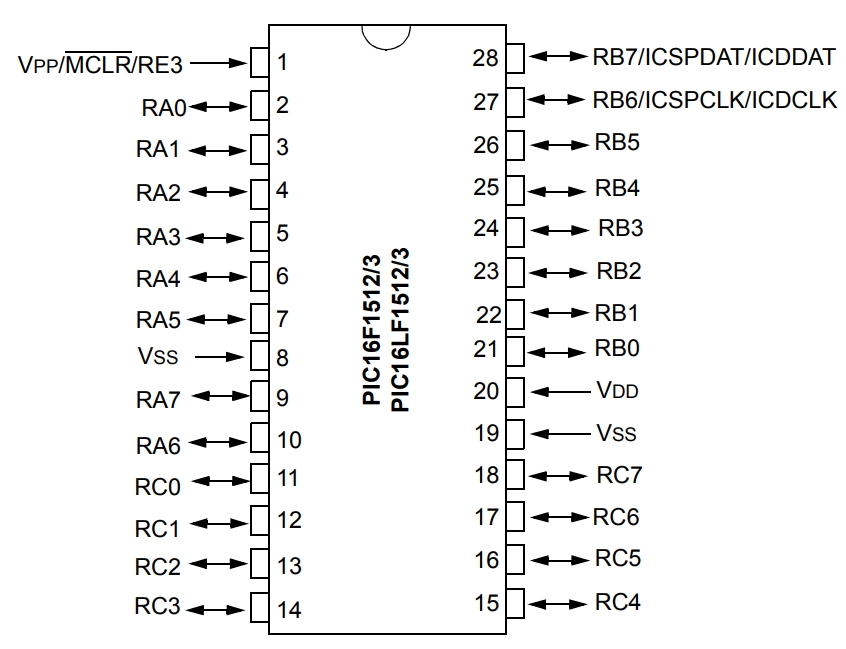

PIC16F1513-I/SO Typical application Circuitry

PIC16F1513-I SO

The PIC16F1513-I/SO is a sophisticated and versatile microcontroller chip from Microchip Technology. As part of the PIC16F series, this 8-bit microcontroller is known for its efficiency and flexibility, making it well-suited for a wide range of applications, particularly in scenarios where compact size and feature-rich capabilities are required.

Chip Features

1. Microcontroller Category: 8-bit, part of the PIC16F series.

2. Designed for: A variety of medium complexity electronic tasks.

Application Scenarios

1. In Consumer Electronics: Commonly used in advanced home appliances and personal gadgets.

2. Automotive Electronics: Suitable for control systems in automotive applications.

3. Industrial Automation: Fits well in control systems for industrial machinery.

Technical Specifications

1. Memory and Processing Speed: Features ample programmable memory with a maximum operating frequency of 20 MHz.

2. Voltage and I/O Configuration: Operates within a 2.0 to 5.5 volts range, offering multiple I/O pins for connectivity.

3. Programming Interface: Supports standard programming interfaces for PIC microcontrollers.

Example Application: Home Security System

Objective

- Implement a circuit with PIC16F1513-I/SO to manage a basic home security system.

PIC16F1513-I/SO Circuit Configuration

1. Power Supply Connection:

- VDD (pin 1) to a 5V power supply.

- VSS (pin 20) to ground.

2. Sensor Interface for Security:

- Connect motion sensors to GPIO pins 6 and 7 (RA2, RA3) for detecting intrusions.

3. Alarm Output Setup:

- Attach an alarm buzzer to GPIO pin 17 (RC3).

4. Control Panel Connectivity:

- Link a control panel with buttons to various other I/O pins for system arming and disarming.

5. Programming Pins for Microcontroller:

- Use GP1 (pin 18) for ICSPDAT and GP2 (pin 19) for ICSPCLK for microcontroller programming.

PIC16F1513-I/SO Design Considerations

1. Stable Power Source: Ensure a consistent power supply within the microcontroller's operating voltage range.

2. Efficient I/O Pin Management: Plan the usage of I/O pins for sensor inputs and alarm outputs strategically.

3. Programming and Debugging Accessibility: Design the circuit with easy access to programming pins for firmware updates and maintenance.

Adopting these steps, the PIC16F1513-I/SO can be effectively utilized in a home security system, demonstrating its capability to manage security-oriented tasks in complex electronic systems.
