What is the Additional Feature ?

Name: PIC16C63A-04/SP
Brand: Microchip Technology
SKU: PIC16C63A-04/SP
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology PIC16C63A-04/SP

Part No.:: PIC16C63A-04/SP

Manufacturer:: Microchip Technology

Package:: 28-DIP (0.300", 7.62mm)

Datasheet:: PIC16C63A-04/SP.pdf

Description:: IC MCU 8BIT 7KB OTP 28SPDIP

In Stock:: 2640

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC16C63A-04/SP Specifications

Package/Case:
28-DIP (0.300", 7.62mm)
Packaging:
Tube
Series:
PIC® 16C
RoHS:
RoHS
Speed:
4MHz
RAM Size:
192 x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Through Hole
Number of I/O:
22
Core Processor:
PIC
Data Converters:
-
Oscillator Type:
External
Program Memory Size:
7KB (4K x 14)
Program Memory Type:
OTP
Operating Temperature:
0°C ~ 70°C (TA)

PIC16C63A-04/SP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC16C63A-04/SP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC16C63A-04/SP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC16C63A-04/SP information

Views：

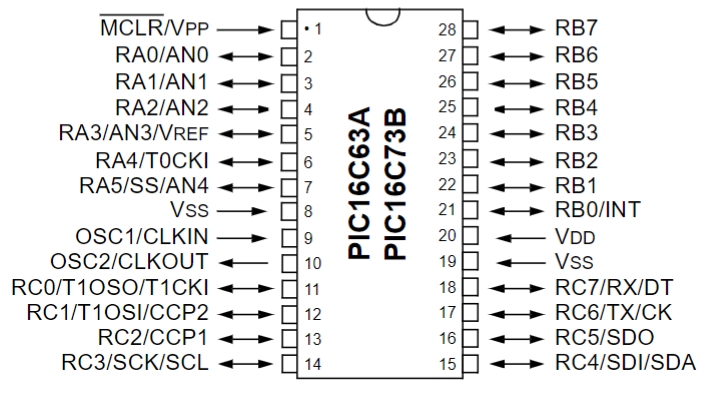

PIC16C63A-04/SP Typical application Circuitry

PIC16C63A-04 SP

The PIC16C63A-04/SP is a microcontroller unit (MCU) from Microchip Technology, part of the PIC16C family of microcontrollers. It's designed for low to medium complexity applications, featuring a combination of programmable input/output functionality, along with a robust set of on-chip peripherals.

Key Features:

- The PIC16C63A-04/SP operates at a maximum frequency of 4 MHz, providing a good balance between speed and power consumption.

- It has an 8-bit architecture, which is common for MCUs in applications where high processing power is not critical.

- This MCU comes with 7 KB of program memory and 192 bytes of RAM, suitable for small to medium-sized applications.

- It also features a variety of peripherals such as timers, serial communication (USART), and a 10-bit analog-to-digital converter (ADC), among others.

- The device is packaged in a DIP (Dual In-line Package), which is favorable for prototyping and small production runs due to ease of soldering and testing.

Application Scenario - Temperature Monitoring System:

One common application of the PIC16C63A-04/SP is in a temperature monitoring system. This system can be used to monitor and record the temperature in environments like greenhouses, server rooms, or even for home brewing projects.

Circuit Connection Details:

- Power Supply: The VDD and VSS pins of the PIC16C63A-04/SP are connected to a +5V power source and ground, respectively. This ensures the microcontroller has the power it needs to operate.

- Temperature Sensor Interface: The output of a temperature sensor, such as the LM35, is connected to one of the ADC pins (e.g., AN0). With a voltage output proportional to the temperature in degrees Celsius, the LM35 is a precise temperature sensor. The PIC16C63A-04/SP can read this voltage to determine the temperature.

- Serial Communication for Data Logging: The TX and RX pins of the USART module are connected to a serial-to-USB converter. This makes it possible to send temperature data for logging and analysis to a computer.

- Programming Pins: For programming the PIC16C63A-04/SP, the MCLR (Master Clear), PGD (Program Data), and PGC (Program Clock) pins are essential. MCLR is connected to a programmer to reset the MCU during the programming phase. PGD and PGC are connected to the respective data and clock lines of a PIC programmer, such as the PICkit.

- Indicator LED: An LED (with a current-limiting resistor) connected to an I/O pin (e.g., RA0) can serve as an indicator that the system is operational or to signal temperature threshold crossings.

Design Considerations:

When designing a circuit with the PIC16C63A-04/SP, several factors must be considered:

- Power Supply Stability: Ensure the power supply is stable and free of noise, as fluctuations can affect the microcontroller's performance.

- ADC Accuracy: For applications like temperature monitoring, the accuracy of the ADC readings is critical. Careful layout to minimize noise, proper grounding, and using a precise reference voltage can enhance accuracy.

- Serial Communication Integrity: Ensure that the serial communication lines are protected against noise and that the baud rate is correctly set to match the receiver (computer or another microcontroller).

- Programming and Debugging Access: Provide easy access to the programming pins to facilitate programming and debugging of the microcontroller.

This detailed example showcases a practical application of the PIC16C63A-04/SP microcontroller in a temperature monitoring system, highlighting the microcontroller's versatility and the considerations needed when designing with it.
