Microchip Technology PIC12LF1571T-I/SN

Part No.:: PIC12LF1571T-I/SN

Manufacturer:: Microchip Technology

Package:: 8-SOIC (0.154", 3.90mm Width)

Datasheet:: PIC12LF1571T-I/SN.pdf

Description:: IC MCU 8BIT 1.75KB FLASH 8SOIC

In Stock:: 3111

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC12LF1571T-I/SN Specifications

Package/Case:
8-SOIC (0.154", 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
PIC® 12F
RoHS:
RoHS
Speed:
32MHz
RAM Size:
128 x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
-
Mounting Type:
Surface Mount
Number of I/O:
6
Core Processor:
PIC
Data Converters:
A/D 4x10b; D/A 1x5b
Oscillator Type:
Internal
Program Memory Size:
1.75KB (1K x 14)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC12LF1571T-I/SN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC12LF1571T-I/SN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC12LF1571T-I/SN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC12LF1571T-I/SN information

Views：

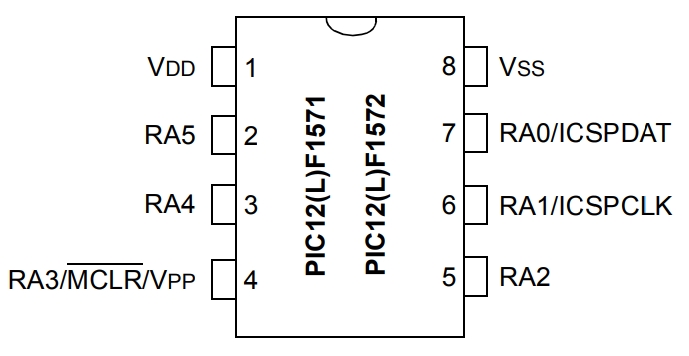

PIC12LF1571T-I/SN Typical application Circuitry

PIC12LF1571T-I SN

The PIC12LF1571T-I/SN is a highly versatile and efficient microcontroller produced by Microchip Technology, tailored for applications necessitating a compact footprint alongside robust functionality within a low power envelope.

Key Features:

- Enhanced PWM Outputs: This microcontroller is renowned for its enhanced PWM outputs, facilitating refined control over motor operations, LED dimming, and other applications requiring precise signal modulation.

- Low Power Consumption: The PIC12LF1571T-I/SN is engineered for efficiency, featuring multiple sleep modes to drastically reduce power consumption, making it ideal for battery-operated devices.

- Integrated ADC: With its onboard ADC, the PIC12LF1571T-I/SN excels in applications that necessitate analog to digital conversion, enabling direct interfacing with various sensors.

Application Scenario: IoT Sensor Node

- Power Supply Connection: The PIC12LF1571T-I/SN operates within a voltage range of 1.8V to 3.6V. Ensure that the VDD pin (Pin 1) is connected to a +3.3V power supply, and the VSS pin (Pin 8) is grounded. This guarantees that the microcontroller operates within safe voltage parameters.

- Sensor Interfacing: Connect an environmental sensor, such as a temperature sensor, to one of the ADC input pins, e.g., RA2/AN2 (Pin 3), enabling the PIC12LF1571T-I/SN to convert the analog signals into digital data for processing.

- Communication Setup: For IoT applications, utilize the I2C communication pins, SCL (RA1/Pin 6) and SDA (RA0/Pin 7), to enable data transmission between the PIC12LF1571T-I/SN and other devices, such as a Wi-Fi module for data uploading to the cloud.

- PWM Output for Indication: Use one of the PWM outputs, for example, RA4 (Pin 4), to drive an LED as an indicator for data transmission status or sensor alert notifications.

- Programming Pins: The programming of the PIC12LF1571T-I/SN employs In-Circuit Serial Programming (ICSP) technique. The necessary connections are MCLR (Pin 4) to the programmer's VPP for the programming mode entry, and the ICSPDAT (RA0/Pin 7) and ICSPCLK (RA1/Pin 6) pins for data and clock signals during programming.

Design Considerations:

- Decoupling Capacitors: Implement decoupling capacitors close to the power supply pins to mitigate voltage spikes and electromagnetic interference, ensuring stable operation of the PIC12LF1571T-I/SN.

- ICSP Accessibility: Incorporate an ICSP header in the circuit design for straightforward programming and debugging of the PIC12LF1571T-I/SN, facilitating firmware updates without necessitating the removal of the microcontroller from its application circuit.

- Power Management: In IoT applications where power efficiency is critical, leverage the low-power modes of the PIC12LF1571T-I/SN effectively to prolong battery life, particularly in remote sensor nodes.

- Antenna Design for Wireless Modules: If the application involves wireless communication, ensure the design accommodates an optimal antenna placement and connection to minimize signal attenuation and maximize data transmission efficiency.

The PIC12LF1571T-I/SN microcontroller stands out for its adaptability and efficiency, especially suited for IoT sensor nodes due to its low power consumption, precise control capabilities, and integrated communication protocols. When designing circuits with the PIC12LF1571T-I/SN, considerations around power supply integrity, signal integrity, programming accessibility, and efficient power management are pivotal to fully leverage the microcontroller's capabilities in sophisticated applications.
