Microchip Technology PIC12F508-I/P

Part No.:: PIC12F508-I/P

Manufacturer:: Microchip Technology

Package:: 8-DIP (0.300", 7.62mm)

Datasheet:: PIC12F508-I/P.pdf

Description:: IC MCU 8BIT 768B FLASH 8DIP

In Stock:: 3683

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC12F508-I/P Specifications

Package/Case:
8-DIP (0.300", 7.62mm)
Packaging:
Tube
Series:
PIC® 12F
RoHS:
RoHS
Speed:
4MHz
RAM Size:
25 x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
POR, WDT
Connectivity:
-
Mounting Type:
Through Hole
Number of I/O:
5
Core Processor:
PIC
Data Converters:
-
Oscillator Type:
Internal
Program Memory Size:
768B (512 x 12)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC12F508-I/P this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC12F508-I/P price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC12F508-I/P to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC12F508-I/P information

Views：

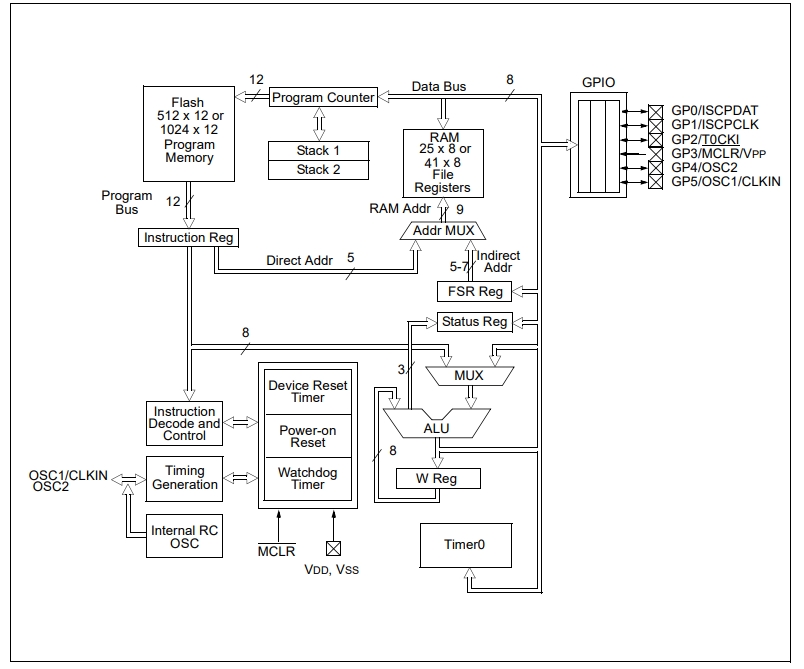

PIC12F508-I/P Typical application Circuitry

PIC12F508-I P

The PIC12F508-I/P is a compact and efficient microcontroller chip from Microchip Technology, tailored for use in a variety of electronic applications. This chip is particularly favored for its simplicity and effectiveness in small-scale projects.

PIC12F508-I/P Features of the Chip

- Microcontroller Type: An 8-bit microcontroller belonging to the PIC12F series.

- Adaptable Functionality: Suitable for basic control tasks in electronic devices.

PIC12F508-I/P Application Domains

- Consumer Electronics: Ideal for simple home electronics and gadgets.

- Automation Systems: Used in basic automation projects, both in homes and industries.

- Educational Projects: Common in learning kits and DIY electronics for beginners.

PIC12F508-I/P Specifications

- Memory and Processing Capability: Comes with 768 bytes of flash memory and operates at a maximum of 4 MHz.

- Voltage and I/O Configuration: Functions between 2.0 to 5.5 volts and offers 5 I/O pins.

- Programming Features: Requires pre-programming configuration because it lacks an In-Circuit Serial Programming (ICSP) interface.

Example Application: Basic LED Blinker

Objective

- Design a circuit using the PIC12F508-I/P to control an LED blinker.

Circuit Connection Details

1. Power Connection:

- Connect VDD (pin 1) to a 5V power source.

- Attach VSS (pin 8) to ground.

2. LED Setup:

- Connect an LED to GPIO pin 7 (GP0) via a current-limiting resistor.

3. Oscillator Configuration:

- Use the chip's internal oscillator, negating the need for an external clock source.

4. Programming Consideration:

- Since the chip lacks ICSP, program the microcontroller before placing it in the circuit.

Circuit Design Considerations

- Power Source Reliability: Ensure a stable and suitable power supply.

- Limitation of I/O Pins: Efficiently plan the usage of available I/O pins.

- Pre-Programming Requirement: Program the chip externally before circuit integration.

Using these guidelines, the PIC12F508-I/P can be effectively implemented in a basic LED blinker circuit, showcasing its suitability for simple electronic control tasks.
