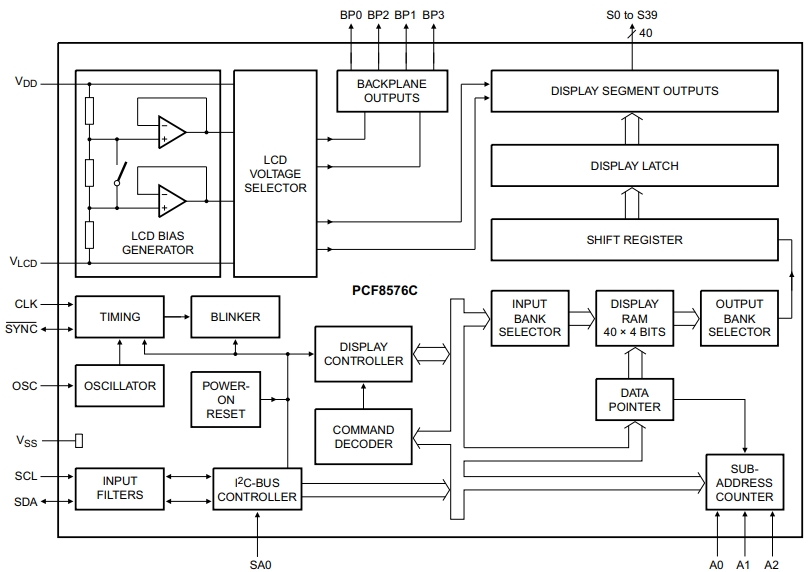

PCF8576CTA/1J Typical application Circuitry

PCF8576CTA 1J

The PCF8576CTA/1J is a chip designed for driving LCD (Liquid Crystal Display) panels. It is a universal LCD driver capable of controlling large alphanumeric or segment-based displays. Manufactured by NXP Semiconductors, this chip simplifies the process of integrating complex LCDs into various electronic devices.

Application Scenarios

The PCF8576CTA/1J finds its application in a range of scenarios including consumer electronics (like digital watches, calculators), automotive instrument clusters, industrial displays, and home appliance control panels.

Parameter Features

Notable features of the PCF8576CTA/1J include:

- Capability to drive multiple LCD segments.

- Integrated I²C-bus interface for communication.

- Low power consumption.

- Support for different multiplexing rates.

Application Scenario - Home Appliance Control Panel: Circuit Connection Method

1. LCD Panel Connection: Connect the segment outputs (S0 to Sx) and common outputs (C0 to Cx) of the PCF8576CTA/1J to the corresponding segments and commons of the LCD panel. The exact number of connections depends on the LCD's configuration.

2. I²C Communication Interface: Establish a connection between the SDA (Serial Data) and SCL (Serial Clock) pins of the PCF8576CTA/1J and the I²C bus of the microcontroller or CPU integrated into the home appliance.

3. Power Supply: Please connect the VDD pin to a 3.3V or 5V power supply, depending on the specific operating voltage requirements, and connect the VSS pin to the system ground.

4. Contrast Adjustment: Attach a variable resistor or a digital potentiometer to the VLCD pin to fine-tune the display contrast.

Circuit Design Considerations

- LCD Compatibility: Ensure the LCD panel matches the PCF8576CTA/1J's driving capability.

- Stable Power Supply: To avoid display flickering or instability, a clean, stable power supply is necessary.

- I²C Bus Design: Ensure reliable communication by correctly setting up the I²C bus, including appropriate pull-up resistors.

- Contrast Control: Provide an effective contrast control mechanism, vital for clear display readability under different environmental conditions.

In a home appliance control panel, the PCF8576CTA/1J effectively drives the LCD display, ensuring clear and user-friendly interfaces, which is crucial for the appliance's ease of use and functionality.
