NXP USA Inc. PCF8576CT/1,118

Part No.:: PCF8576CT/1,118

Manufacturer:: NXP USA Inc.

Package:: 56-BSOP (0.435, 11.05mm Width)

Datasheet:: PCF8576CT/1,118.pdf

Description:: IC DRVR 7 SEGMENT 56VSOP

In Stock:: 2064

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCF8576CT/1,118 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
DisplayType:
LCD
Configuration:
7 Segment + DP, 14 Segment + DP + AP, Dot Matrix
Interface:
I²C
DigitsorCharacters:
10 Characters, 20 Characters, 160 Elements
Current-Supply:
120 µA
Voltage-Supply:
2V ~ 6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

PCF8576CT/1,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCF8576CT/1,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCF8576CT/1,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCF8576CT/1,118 information

Views：

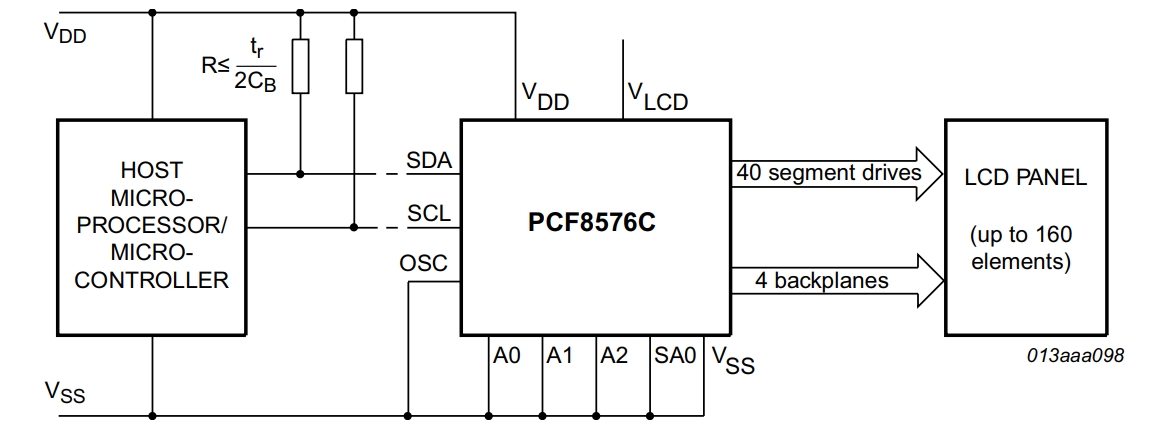

PCF8576CT/1,118 Typical application Circuitry

PCF8576CT 1,118

The PCF8576CT/1,118 is an LCD controller/driver, specialized in driving alphanumeric and segment displays. It's part of the PCF8576 series, notable for its ability to manage multiple LCD segments, making it ideal for applications requiring comprehensive and dynamic visual displays.

Features of PCF8576CT/1,118

1. Segment Capacity: The PCF8576CT/1,118 can drive up to 160 LCD segments, offering extensive flexibility for large and detailed display configurations.

2. Multiplexing Capability: It supports a multiplexing rate from static up to 1:40, accommodating a wide range of display sizes and complexities.

3. Communication Interface: It comes with an I²C-bus interface, ensuring easy integration with most microcontrollers or processors.

4. Operational Voltage Range: It operates across a broad voltage range, catering to diverse power supply conditions.

Application Scenario: Automotive Dashboard Display

In an automotive dashboard display, the PCF8576CT/1,118 can be utilized to drive the segment LCD, which shows various vehicle statuses like speed, fuel level, and engine warnings. Below is a detailed connection guide for this application:

Circuit Connection Details

1. Power Supply (VDD - Pin 1, VSS - Pin 19):

- Device Powering: Connect a stable power source to VDD (Pin 1) to power the PCF8576CT/1,118. The voltage typically ranges from 2.5V to 6V. Ground VSS (Pin 19).

2. LCD Connections (SEG0-SEG39, COM0-COM3):

- LCD Segments Wiring: Wire the LCD's segments to the SEG (Segment Output Pins) and COM (Common Return Pins) of the PCF8576CT/1,118. Pin assignments depend on the LCD configuration and the display patterns required.

3. I²C Bus Communication (SDA - Pin 15, SCL - Pin 16):

- Data Communication: Link SDA (Pin 15) and SCL (Pin 16) to the I²C data and clock lines on the controlling microcontroller. This setup enables data exchange between the PCF8576CT/1,118 and the microcontroller for display updates.

4. Operation Mode (M - Pin 17):

- Frequency Selection: Attach M (Pin 17) to either VDD or VSS to choose between the two frame frequencies available (80Hz or 160Hz), influencing the LCD's refresh rate.

5. Bias Configuration (BP0, BP1 - Pins 2 and 3):

- Bias Ratio Setting: Configure BP0 (Pin 2) and BP1 (Pin 3) for the LCD's bias ratio. This configuration is critical for optimal display contrast and visibility.

6. Oscillator Frequency (OS - Pin 18):

- Setting Clock Source: Link a capacitor to OS (Pin 18) to determine the internal oscillator frequency. This frequency is essential for the timing of LCD driving waveforms.

Design Considerations

When designing a circuit with the PCF8576CT/1,118, contemplate the following:

1. LCD Compatibility: Ensure the LCD's segment and common pin count align with the driving capabilities of the PCF8576CT/1,118.

2. I²C Bus Addressing: Properly address the PCF8576CT/1,118, especially if multiple devices are connected to the same I²C bus.

3. Stable Power Supply: Provide a stable and clean power supply to avoid display flickering or data corruption.

4. PCB Layout Design: Strategically design the PCB to reduce the interference between the high-speed I²C lines and the more sensitive LCD lines.

By meticulously considering these aspects and understanding the functionalities and pin configurations of the PCF8576CT/1,118, one can effectively incorporate this LCD driver into sophisticated applications like automotive dashboard displays. The flexibility and segment-driving capability of the PCF8576CT/1,118 make it a top choice for intricate LCD applications.
