What is the Additional Feature ?

Name: PCA9685PW,118
Brand: NXP USA Inc.
SKU: PCA9685PW,118
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. PCA9685PW,118

Part No.:: PCA9685PW,118

Manufacturer:: NXP USA Inc.

Package:: 28-TSSOP (0.173, 4.40mm Width)

Datasheet:: PCA9685PW,118.pdf

Description:: IC LED DRVR LIN PWM 25MA 28TSSOP

In Stock:: 2528

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9685PW,118 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Linear
Topology:
-
InternalSwitch(s):
Yes
NumberofOutputs:
16
Voltage-Supply(Min):
2.3V
Voltage-Supply(Max):
5.5V
Voltage-Output:
5.5V
Current-Output/Channel:
25mA
Frequency:
100kHz ~ 1MHz
Dimming:
PWM
Applications:
Backlight
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

PCA9685PW,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9685PW,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9685PW,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9685PW,118 information

Views：

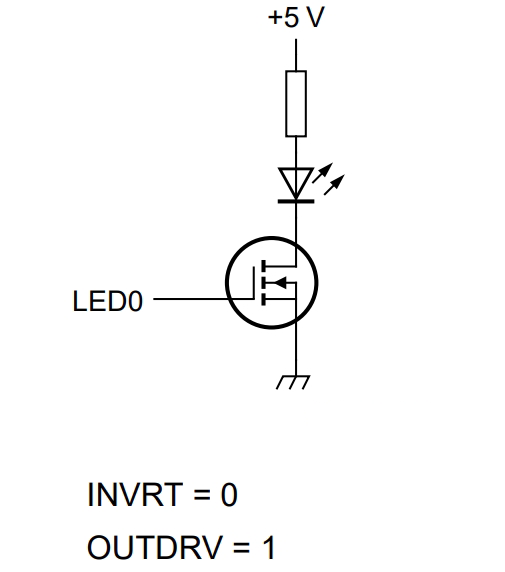

PCA9685PW,118 Typical application Circuitry

PCA9685PW,118

The PCA9685PW,118 is a versatile 16-channel, 12-bit PWM (Pulse Width Modulation) controller, primarily designed for LED dimming and motor control. This integrated circuit is highly appreciated in scenarios requiring multiple-channel control with high resolution, such as robotics, LED lighting systems, and servo motor control.

PCA9685PW,118 Key Features and Parameters:

1. 16-Channel Output: Enables control of up to 16 separate outputs, perfect for intricate control systems.

2. 12-Bit Resolution: Offers fine-grained control with a 12-bit resolution for each channel.

3. I²C-Bus Interface: Comes with an I²C-bus interface, ensuring compatibility with a wide range of microcontrollers.

4. Adjustable Frequency: PWM frequency can be adjusted up to about 1.6 kHz, allowing flexibility in control.

5. External Clock Option: Supports the use of an external clock for improved timing accuracy.

PCA9685PW,118 Application Scenario: Robotic Arm Control

In a robotic arm control system, the PCA9685PW,118 can be used to precisely control the movement of multiple servo motors, enabling smooth and accurate positioning.

Circuit Connection and Design Considerations:

Circuit Connection:

1. Power Supply Integration:

- VCC (pin 28) connected to an appropriate power source, typically 5V.

2. Servo Motor Connections:

- Each servo motor is connected to one of the PWM output channels (OUT0 to OUT15, pins 1-16).

3. I²C Communication Setup:

- SDA (pin 27) and SCL (pin 26) for interfacing with the controlling microcontroller's I²C bus.

4. Optional External Oscillator:

- An external oscillator can be connected to EXTCLK (pin 23) if precise timing is required.

5. Grounding the Circuit:

- GND (pins 9, 18, 19) for system grounding.

Design Considerations:

1. Motor Compatibility: Ensure servo motors are compatible with the controller's output capabilities.

2. I²C Bus Configuration: Properly configure the I²C bus, including addressing and data transfer protocols.

3. PWM Frequency Adjustment: Set an appropriate PWM frequency for smooth servo operation.

4. Power Supply Capacity: Confirm the power supply can adequately support all connected servo motors.

5. Heat Dissipation: Consider the heat generated, especially when controlling multiple motors.

6. Signal Integrity: Implement measures to maintain signal integrity, particularly in environments with electrical noise.

Employing the PCA9685PW,118 in a robotic arm control system highlights its capability to manage multiple high-resolution PWM outputs simultaneously, making it an ideal choice for precision control in robotics and similar applications.
