NXP USA Inc. PCA9624BS,118

Part No.:: PCA9624BS,118

Manufacturer:: NXP USA Inc.

Package:: 24-VFQFN Exposed Pad

Datasheet:: PCA9624BS,118.pdf

Description:: IC LED DRV LIN PWM 100MA 24HVQFN

In Stock:: 2903

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9624BS,118 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Obsolete
Type:
Linear
Topology:
-
InternalSwitch(s):
Yes
NumberofOutputs:
8
Voltage-Supply(Min):
2.3V
Voltage-Supply(Max):
5.5V
Voltage-Output:
40V
Current-Output/Channel:
100mA
Frequency:
100kHz ~ 1MHz
Dimming:
PWM
Applications:
Backlight
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

PCA9624BS,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9624BS,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9624BS,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9624BS,118 information

Views：

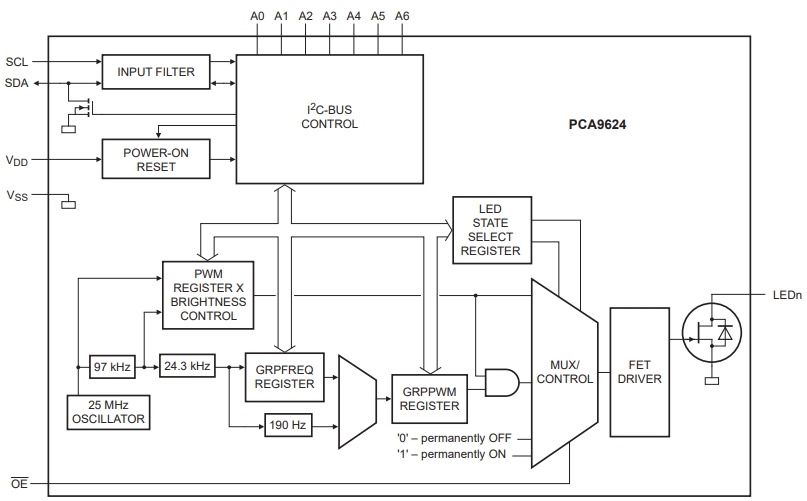

PCA9624BS,118 Typical application Circuitry

PCA9624BS,118

The PCA9624BS,118 is a specialized LED driver chip, designed for efficiently managing and controlling multiple LEDs, particularly in applications where space is limited and power efficiency is a concern. This chip is commonly used in compact display panels, portable lighting solutions, and intricate LED-based decorative setups.

PCA9624BS,118 Key Features and Parameters:

1. Compact LED Driver: The PCA9624BS,118 is optimized for driving multiple LEDs with minimal space requirements.

2. Individual LED Control: Offers independent control of each LED, crucial for creating detailed lighting patterns.

3. PWM Dimming Functionality: Incorporates Pulse Width Modulation (PWM) for precise brightness control.

4. I²C Interface Integration: Equipped with an I²C interface, allowing easy communication with control units.

5. Low Power Consumption: Designed for energy-efficient operation, ideal for battery-powered applications.

Application Scenario: Portable LED Lighting System

In a portable LED lighting system, the PCA9624BS,118 can be used to control a series of LEDs, providing adjustable and efficient lighting suitable for mobile applications.

Circuit Connection and Design Considerations:

Circuit Connection:

1. Power Supply Connectivity:

- VDD (pin 24) must be connected to an appropriate power source for LEDs, such as a battery (e.g., 3.7V).

2. LED Arrangement:

- Each LED or LED cluster is connected to one of the output channels (OUT0 to OUT7, pins 1-8).

3. I²C Bus Configuration:

- Connect SDA (pin 23) and SCL (pin 22) to the I²C bus of a controlling microcontroller.

4. Current Setting with Resistors:

- External resistors should be connected to R-EXT (pin 17) to regulate the current for LEDs.

5. Grounding the System:

- GND (pin 18) is essential for system grounding.

PCA9624BS,118 Design Considerations:

1. LED Compatibility Check: Ensure that the chosen LEDs are within the voltage and current specifications of the driver.

2. Calculating Resistor Values: Accurately calculate the resistor values for desired LED current settings.

3. I²C Bus Efficiency: Properly manage the I²C bus for reliable communication, including address configuration.

4. Heat Dissipation in Compact Spaces: Pay attention to thermal management, particularly in a compact setup.

5. Consistent Power Supply: Ensure that the battery or power source can reliably support the LED array.

6. EMI Considerations in Portable Devices: Implement strategies to minimize electromagnetic interference, vital in portable electronics.

Using the PCA9624BS,118 in a portable LED lighting system exemplifies its capability to provide efficient, controllable lighting in space-constrained environments. This scenario underscores the chip's suitability for applications where power efficiency and compact design are paramount.
