What is the Additional Feature ?

Name: PCA9306DCTRE4
Brand: Texas Instruments
SKU: PCA9306DCTRE4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments PCA9306DCTRE4

Part No.:: PCA9306DCTRE4

Manufacturer:: Texas Instruments

Package:: 8-LSSOP, 8-MSOP (0.110, 2.80mm Width)

Datasheet:: PCA9306DCTRE4.pdf

Description:: IC TRNSLTR BIDIRECTIONAL SM8

In Stock:: 2971

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA9306DCTRE4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Last Time Buy
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
2
Voltage-VCCA:
1.2 V ~ 3.3 V
Voltage-VCCB:
1.8 V ~ 5.5 V
InputSignal:
-
OutputSignal:
-
OutputType:
Open Drain, Push-Pull
DataRate:
-
OperatingTemperature:
-40°C ~ 105°C (TA)
Features:
Auto-Direction Sensing
MountingType:
Surface Mount

PCA9306DCTRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA9306DCTRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA9306DCTRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA9306DCTRE4 information

Views：

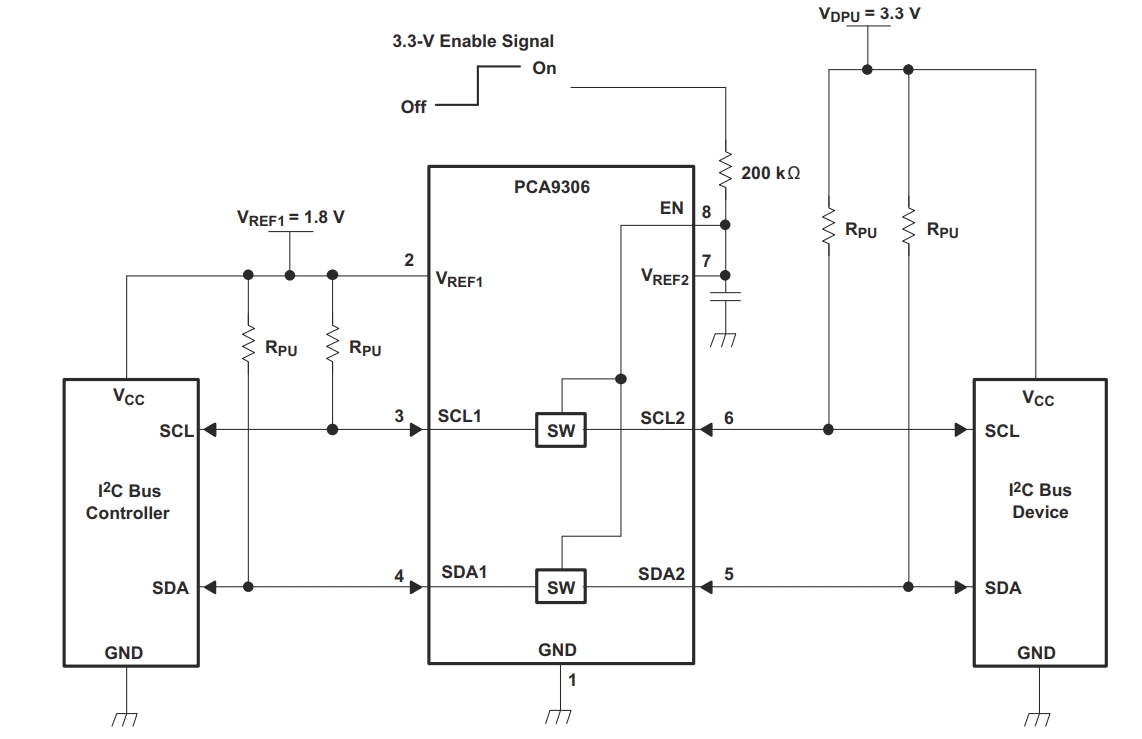

PCA9306DCTRE4 Typical application Circuitry

PCA9306DCTRE4

The PCA9306DCTRE4 is a specialized chip designed for voltage level translation, specifically targeting I2C and SMBus communication interfaces. This component is pivotal in systems where communication between devices operating at different voltage levels is necessary, ensuring compatibility and reliable data transfer.

Application Scenarios:

1. Connecting Devices with Varied Voltage Levels: The PCA9306DCTRE4 is used to bridge components in systems where parts operate at different voltages, such as a 1.8V sensor interfacing with a 3.3V microcontroller.

2. I2C/SMBus Communication Standardization: It standardizes communication in I2C or SMBus systems, where devices might have mismatched I/O voltage levels, ensuring smooth data exchange.

Key Features and Parameters:

1. Two-Way Voltage Translation: The PCA9306DCTRE4 facilitates bidirectional voltage translation, essential for duplex communication protocols.

2. Versatile Voltage Range: It offers translation between 1.0V to 3.6V on the A-side and 1.8V to 5.5V on the B-side.

3. Efficient Power Usage: Designed for minimal power consumption, it is ideal for battery-operated devices.

4. Compatibility with High-Speed Protocols: Supports fast mode I2C-bus (up to 1 MHz) and SMBus operations.

Circuit Connection Example: Linking a Low-Voltage MCU to a High-Voltage EEPROM

Overview: Demonstrating the use of PCA9306DCTRE4 for connecting a 1.8V microcontroller to a 5V EEPROM using I2C.

1. Voltage References Setup:

- V_REF1 (pin 6) is connected to the microcontroller's 1.8V power supply.

- V_REF2 (pin 4) is linked to the EEPROM's 5V power supply.

2. Establishing Ground Connection:

- GND (pin 3) should be tied to the system's ground plane.

3. I2C Bus Integration:

- SDA1 and SCL1 (pins 5 and 1, respectively) are connected to the microcontroller's I2C lines.

- SDA2 and SCL2 (pins 8 and 2, respectively) are linked to the EEPROM's I2C lines.

4. Configuring Pull-up Resistors:

- Install suitable pull-up resistors on both SDA and SCL lines on each side of the translator, considering the operating voltage and desired bus speed.

Design Considerations:

1. Voltage Compatibility Check: Ensure V_REF1 and V_REF2 match the operating voltages of the connected devices.

2. Pull-up Resistor Sizing: Properly size the pull-up resistors to facilitate optimal I2C communication.

3. Bus Capacitance and Layout: Be mindful of the capacitance and physical layout of the I2C bus for maintaining signal integrity.

4. Stable Power Supplies: Ensure the power supplies are stable to prevent data errors or miscommunications.

In conclusion, the PCA9306DCTRE4 chip serves as a critical component in systems requiring communication between devices with different voltage levels. It simplifies the design and integration of mixed-voltage systems, allowing for seamless and reliable data transfer in I2C and SMBus protocols.

PCA9306DCTRE4 FAQ

1. How to order PCA9306DCTRE4 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that PCA9306DCTRE4 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the PCA9306DCTRE4. All suppliers must pass our qualification reviews before they can publish their products including PCA9306DCTRE4 on icwhale.com; we pay more attention to the channels and quality of PCA9306DCTRE4 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the PCA9306DCTRE4 price and inventory displayed accurate?

The price and inventory of PCA9306DCTRE4 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of PCA9306DCTRE4?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the PCA9306DCTRE4 we delivered, we will accept the replacement or return of the PCA9306DCTRE4 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of PCA9306DCTRE4.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
