NXP USA Inc. PCA82C251T/N3,112

Part No.:: PCA82C251T/N3,112

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: PCA82C251T/N3,112.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 2569

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA82C251T/N3,112 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
150 mV
DataRate:
-
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

PCA82C251T/N3,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA82C251T/N3,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA82C251T/N3,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA82C251T/N3,112 information

Views：

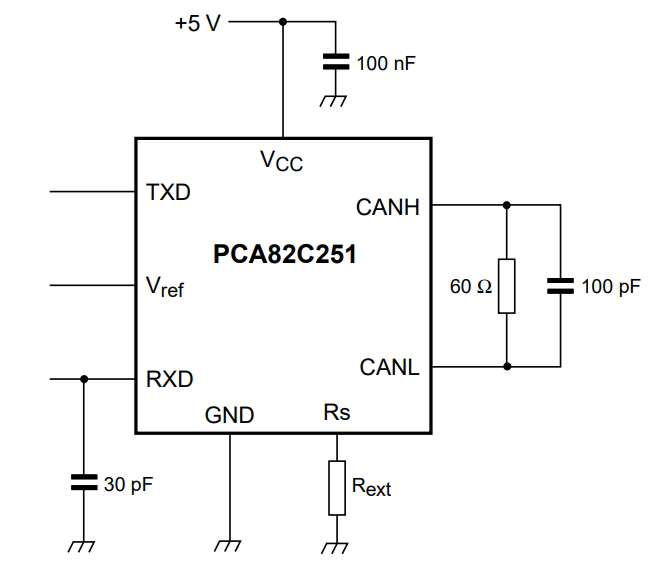

PCA82C251T/N3,112 Typical application Circuitry

PCA82C251T N3,112

The PCA82C251T/N3,112 is a high-speed Controller Area Network (CAN) transceiver chip, specifically designed for interfacing with CAN bus systems. This chip is particularly relevant in environments that demand robust and reliable data communication, such as automotive electronics and industrial automation systems. Let's delve into its functionalities, application scenarios, key specifications, and detail a specific circuit application.

Functionality of PCA82C251T/N3,112

- CAN Bus Communication: Enables the connection of microcontrollers to CAN bus networks.

- Signal Adaptation: Translates TTL/CMOS-level signals from microcontrollers to CAN bus physical layer signals and vice versa.

- Specifications: Typically operates with a 5V power supply and supports high-speed CAN communication up to 1 Mbit/s.

Application Scenarios: Automotive Systems:

- Use Cases: Automotive Systems: Connects different electronic control units (ECUs) in automobiles.

- Industrial Automation: Ideal for connecting control units in industrial networks for data communication.

Circuit Application: Automotive Body Control Module

Here's a detailed implementation of PCA82C251T/N3,112 in an automotive body control module (BCM):

1. Circuit Goal

- Objective: To interface the BCM with the CAN network in a vehicle for controlling and monitoring body-related functions like lighting, door locks, etc.

2. Microcontroller to Transceiver Connection

- BCM to Transceiver: Connect the transmit (TX) and receive (RX) pins of the BCM microcontroller to the TXD and RXD pins of the PCA82C251T/N3,112.

3. Integration into CAN Bus

- Transceiver to CAN Network: Link the CAN High (CANH) and CAN Low (CANL) pins of the PCA82C251T/N3,112 to the respective lines of the CAN bus.

4. Powering the Circuit

- Voltage Supply: Connect the VCC pin of the PCA82C251T/N3,112 to a 5V power source.

- Grounding: Ensure proper grounding for the circuit.

5. Design Considerations

- CAN Bus Termination: Proper termination of the CAN bus with 120-ohm resistors at both ends is essential.

- Baud Rate Alignment: Ensure the baud rate of the BCM microcontroller and PCA82C251T/N3,112 are synchronized for effective communication.

- EMI Considerations: It's crucial to design the circuit to reduce electromagnetic interference, particularly in automobile settings.

In this automotive BCM application, the PCA82C251T/N3,112 serves as a crucial component for enabling communication between the module and the CAN network, ensuring efficient control of vehicle body functions. This application highlights the transceiver's significance in automotive electronics, where it facilitates robust and reliable data transmission. Designing circuits with this component requires careful attention to CAN bus protocols, electrical noise considerations, and appropriate termination to ensure optimal performance and system reliability.
