NXP USA Inc. PCA82C251T/N,112

Part No.:: PCA82C251T/N,112

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: PCA82C251T/N,112.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 2672

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA82C251T/N,112 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
150 mV
DataRate:
-
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

PCA82C251T/N,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA82C251T/N,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA82C251T/N,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA82C251T/N,112 information

Views：

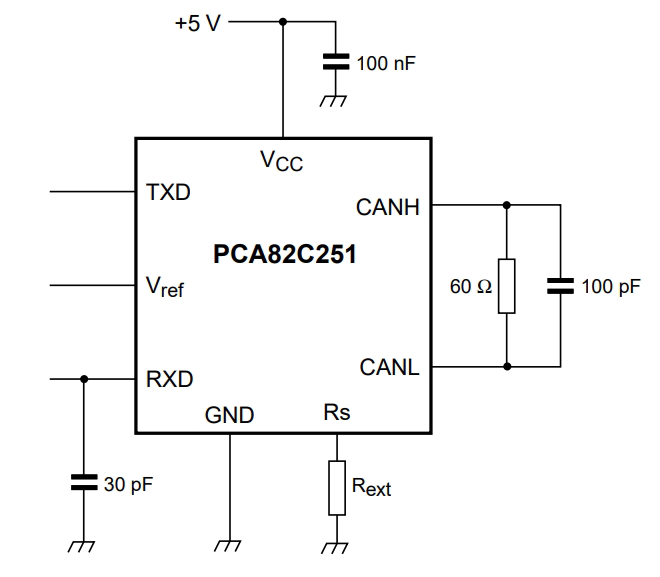

PCA82C251T/N,112 Typical application Circuitry

PCA82C251T N,112

The PCA82C251T/N,112 is a high-speed CAN (Controller Area Network) transceiver chip designed for interfacing microcontrollers with CAN bus systems. This chip is particularly relevant in environments where robust and reliable data communication is crucial, such as automotive and industrial automation systems. Let's discuss its functionalities, typical application scenarios, key specifications, and a detailed circuit application.

Functionality of PCA82C251T/N,112

- CAN Network Compatibility: Facilitates the connection of microcontrollers to CAN bus systems.

- Signal Conversion: Converts TTL/CMOS-level signals from microcontrollers to CAN bus physical layer signals and vice versa.

- Specifications: Operates typically at 5V power supply, supporting high-speed CAN communication up to 1 Mbit/s.

Application Scenarios

- In Vehicle Networks: Commonly used for connecting ECUs in automotive applications.

- Industrial Automation Systems: Ideal for data communication between control units in industrial settings.

Circuit Application: Industrial Sensor Network

Here's a detailed implementation of the PCA82C251T/N,112 in an industrial sensor network:

1. Circuit Goal

- Purpose: To enable communication between industrial sensors and a PLC (Programmable Logic Controller) through a CAN network.

2. Sensor to Transceiver Connection

- Sensor Microcontroller to Transceiver: Connect the transmit (TX) and receive (RX) pins of the sensor microcontroller to the TXD and RXD pins of the PCA82C251T/N,112.

3. CAN Bus Integration

- Transceiver to CAN Network: Attach the CAN High (CANH) and CAN Low (CANL) pins of the PCA82C251T/N,112 to the respective lines of the CAN bus.

4. Power Supply and Grounding

- Voltage Source: Connect the VCC pin of the PCA82C251T/N,112 to a 5V power supply.

- Proper Grounding: Ensure the chip is grounded correctly.

5. Important Design Factors

- CAN Bus Termination: Implement proper termination of the CAN bus with 120-ohm resistors at each end to avoid signal reflection.

- Baud Rate Synchronization: The baud rate of the sensor microcontroller and the PCA82C251T/N,112 must be aligned for effective communication.

- Electromagnetic Interference (EMI): In industrial environments, design the circuit to mitigate EMI for reliable operation.

In this industrial sensor network application, the PCA82C251T/N,112 acts as a critical interface between sensor microcontrollers and the CAN network, ensuring efficient and reliable communication. This application demonstrates the transceiver's importance in industrial systems, where it enables high-speed data exchange in challenging environments. When designing circuits with this component, consideration for CAN bus protocols, electrical noise mitigation, and appropriate termination is essential for ensuring optimal performance and system reliability.
