NXP USA Inc. PCA82C250T/N4,112

Part No.:: PCA82C250T/N4,112

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: PCA82C250T/N4,112.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 2545

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA82C250T/N4,112 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
150 mV
DataRate:
-
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

PCA82C250T/N4,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA82C250T/N4,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA82C250T/N4,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA82C250T/N4,112 information

Views：

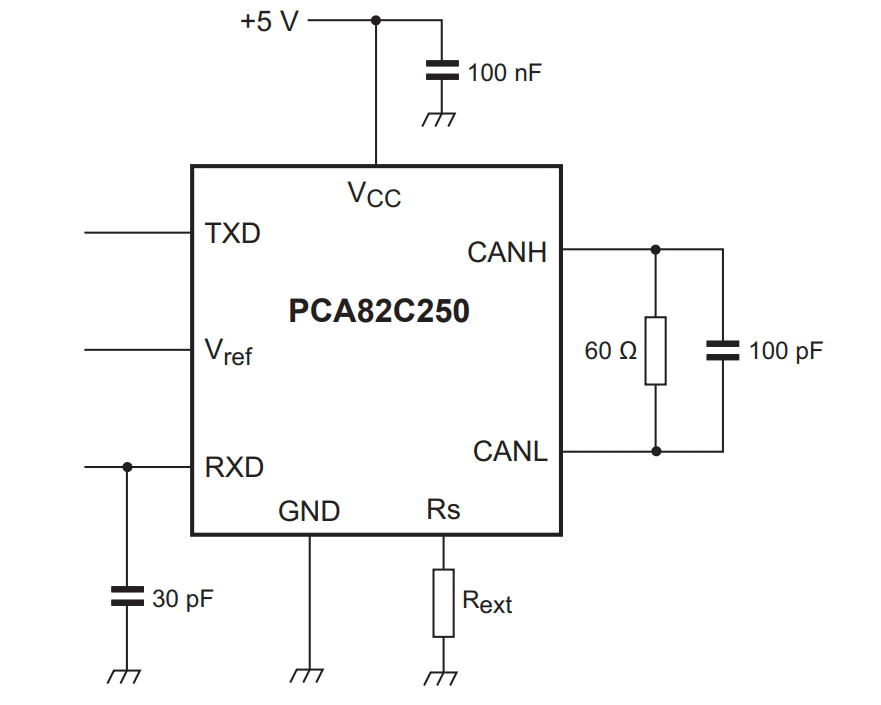

PCA82C250T/N4,112 Typical application Circuitry

PCA82C250T N4,112

The PCA82C250T/N4,112 is a high-speed CAN (Controller Area Network) transceiver chip, essential for enabling the interface between microcontrollers and CAN bus systems. This chip is particularly crucial in automotive and industrial control systems where robust and reliable data communication is needed. Let's explore its functionalities, typical applications, key specifications, and a detailed circuit application.

Functionality of PCA82C250T/N4,112

- CAN Network Integration: It is used for connecting microcontrollers to a CAN bus network.

- Signal Conversion: Converts TTL/CMOS level signals from a microcontroller to CAN bus levels and vice versa.

- Specifications: Typically operates with a 5V power supply and supports high-speed CAN communication up to 1 Mbit/s.

Application Scenarios

- Automotive Electronics: Commonly used in vehicle networking for communication between various ECUs.

- Industrial Automation Systems: Employed in industrial automation for reliable data communication between control devices.

Circuit Application: Vehicle Telematics System

Detailing the application of PCA82C250T/N4,112 in a vehicle telematics system:

1. Circuit Objective

- Goal: To facilitate communication between the vehicle's telematics control unit (TCU) and the CAN network.

2. Connection with Microcontroller

- TCU to Transceiver: Connect the transmit (TX) and receive (RX) pins of the TCU microcontroller to the TXD and RXD pins of the PCA82C250T/N4,112, respectively.

3. Integration into CAN Bus

- Linking to CAN Network: Attach the CAN High (CANH) and CAN Low (CANL) pins of the PCA82C250T/N4,112 to the respective lines of the CAN bus.

4. Power Supply and Grounding

- Voltage Supply and Grounding: Connect the VCC pin of the PCA82C250T/N4,112 to a 5V power source, and ensure proper grounding.

5. Design Considerations

- CAN Bus Termination: Proper termination of the CAN bus with 120-ohm resistors is crucial at both ends of the network.

- Matching Baud Rates: Synchronize the baud rate of the TCU microcontroller with that of the PCA82C250T/N4,112 for efficient communication.

- Electromagnetic Interference (EMI): In automotive environments, consider EMI and design the circuit with noise immunity in mind.

In the vehicle telematics application, the PCA82C250T/N4,112 serves as an integral component enabling the TCU to communicate effectively with the vehicle's CAN network. This showcases the transceiver's pivotal role in automotive systems, where reliable and fast data transmission is essential. When designing circuits with this chip, attention to CAN bus protocols, proper electrical termination, and environmental factors like EMI is key to ensuring optimal communication performance and system reliability.
