NXP USA Inc. PCA82C250T/N,118

Part No.:: PCA82C250T/N,118

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: PCA82C250T/N,118.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 2066

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA82C250T/N,118 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
150 mV
DataRate:
-
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

PCA82C250T/N,118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA82C250T/N,118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA82C250T/N,118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA82C250T/N,118 information

Views：

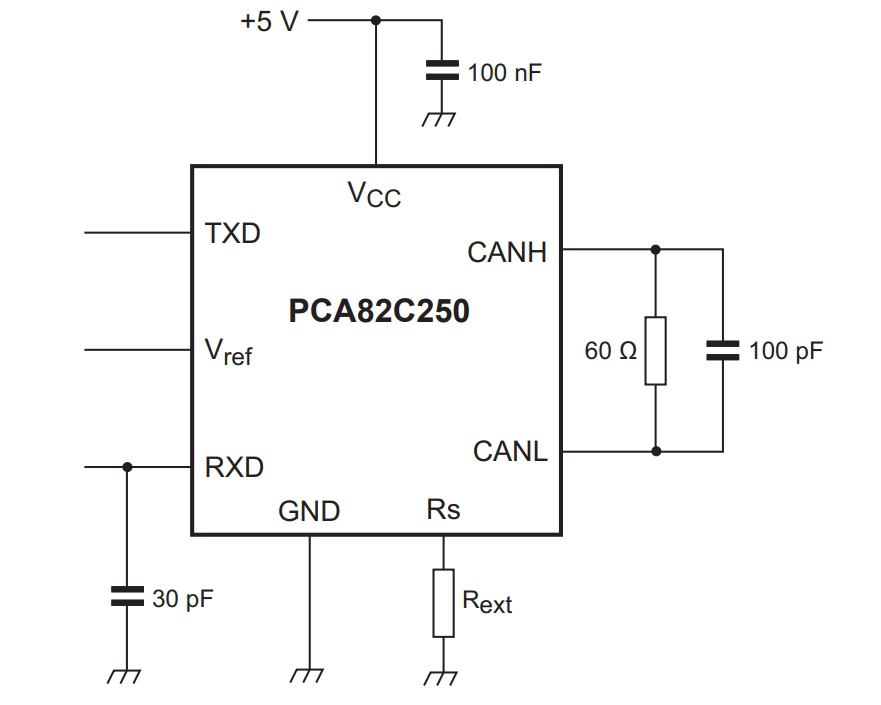

PCA82C250T/N,118 Typical application Circuitry

PCA82C250T N,118

The PCA82C250T/N,118 is a high-speed CAN (Controller Area Network) transceiver chip, primarily designed for efficient communication in CAN bus systems. This chip is integral in facilitating the interface between microcontrollers and CAN networks, commonly found in automotive and industrial control systems. Let's delve into its functionalities, typical application scenarios, and key specifications, and provide a detailed circuit application.

Functional Attributes of PCA82C250T/N,118

- CAN Network Interface: Enables communication between a microcontroller and the CAN bus.

- Signal Conversion: Converts TTL/CMOS-level signals from the microcontroller to CAN bus levels and vice versa.

- Specifications: Typically operates at a supply voltage of 5V, with CAN interface speeds up to 1 Mbit/s.

Application Scenarios

- Automotive Systems: Used in-vehicle networks for connecting various electronic control units (ECUs).

- Industrial Automation: Ideal for establishing robust communication links in industrial control systems.

Circuit Implementation: Vehicle Network Communication

A detailed application of the PCA82C250T/N,118 in a vehicle's ECU communication network:

1. Circuit Objective

- Goal: To connect an ECU microcontroller to a vehicle's CAN network for diagnostics and control.

2. Microcontroller Connectivity

- Linking to Microcontroller: Connect the transmit (TX) and receive (RX) pins of the ECU microcontroller to the TXD and RXD pins of the PCA82C250T/N,118, respectively.

3. CAN Bus Connection

- Integrating with CAN Network: Connect the CAN High (CANH) and CAN Low (CANL) pins of the PCA82C250T/N,118 to the corresponding CAN bus lines.

4. Power and Grounding

- Voltage Supply and Grounding: Connect the VCC pin of the PCA82C250T/N,118 to a 5V power source and ensure proper grounding.

5. Critical Design Factors

- CAN Bus Termination: Implement correct termination of the CAN bus with 120-ohm resistors at each end of the network.

- Synchronization of Baud Rates: Align the baud rates of the ECU microcontroller and the PCA82C250T/N,118 for consistent data communication.

- Environmental Robustness: In automotive applications, consider factors like temperature range and vibration resistance.

In this automotive application, the PCA82C250T/N,118 acts as a vital interface between an ECU microcontroller and the vehicle's CAN bus, enabling essential communication and control functionalities. This highlights the chip's role in vehicular electronic systems, where effective communication is crucial. Designing circuits with this transceiver requires careful consideration of CAN bus standards, electrical termination, and the physical environment to ensure reliable and effective operation.
