NXP USA Inc. PCA82C250T/N,112

Part No.:: PCA82C250T/N,112

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: PCA82C250T/N,112.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SO

In Stock:: 3842

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCA82C250T/N,112 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
150 mV
DataRate:
-
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

PCA82C250T/N,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCA82C250T/N,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCA82C250T/N,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PCA82C250T/N,112 information

Views：

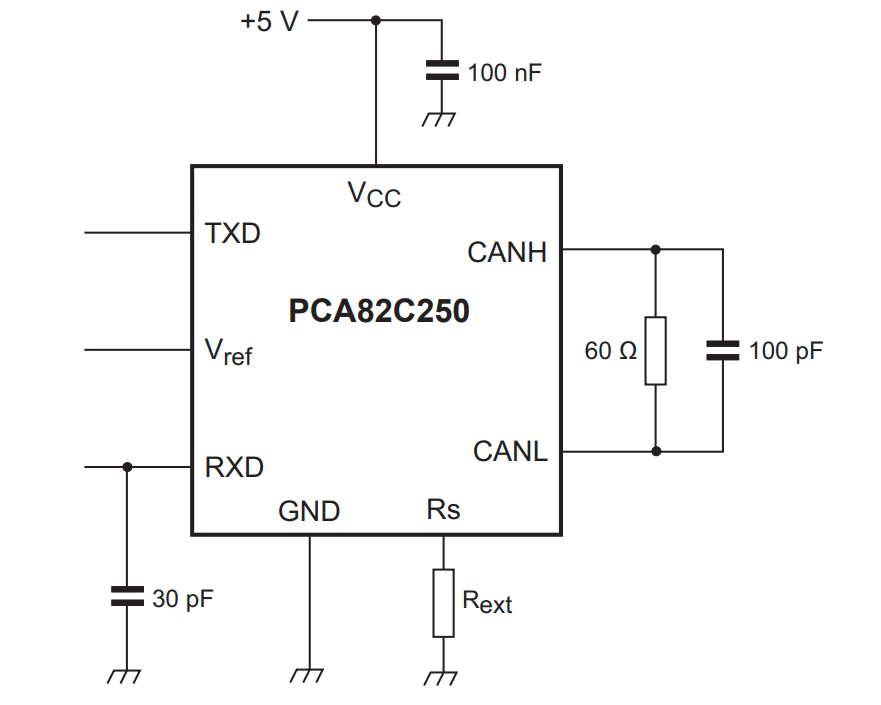

PCA82C250T/N,112 Typical application Circuitry

PCA82C250T N,112

The PCA82C250T/N,112 is a CAN (Controller Area Network) transceiver chip, primarily designed to enable communication between microcontrollers and CAN bus systems. This type of chip is crucial in automotive and industrial automation systems for reliable data communication. Let's explore its functionalities, typical applications, key specifications, and a specific circuit application.

Functionality of PCA82C250T/N,112

- CAN Communication Interface: It facilitates interfacing microcontrollers with a CAN bus.

- Signal Translation: Transforms TTL/CMOS-level signals from microcontrollers to CAN bus standard levels and vice versa.

- Key Specifications: The chip typically operates at a 5V supply voltage and supports high-speed CAN operations (up to 1 Mbit/s).

Application Scenarios

- Automotive Network Systems: Widely used in car networks to connect various electronic control units (ECUs).

- Industrial Control Networks: Utilized for communication in industrial automation systems.

Circuit Implementation: Automotive Diagnostic System

Let's detail the application of PCA82C250T/N,112 in an automotive diagnostic system:

1. Objective of the Circuit

- Purpose: To enable communication between a car's ECU microcontroller and the CAN network for diagnostics and monitoring.

2. Microcontroller Connection

- Link to Microcontroller: Connect the microcontroller's transmit (TX) and receive (RX) pins to the TXD and RXD pins of the PCA82C250T/N,112, respectively.

3. CAN Bus Integration

- Connecting to CAN Network: Join the CAN High (CANH) and CAN Low (CANL) pins of the PCA82C250T/N,112 to the respective lines of the CAN bus.

4. Power Supply and Grounding Arrangement

- Voltage and Grounding: Connect the VCC pin of the PCA82C250T/N,112 to a 5V power source and ground the chip properly.

5. Essential Design Factors

- CAN Bus Termination: Ensure the CAN bus is correctly terminated with 120-ohm resistors at each end to prevent signal reflection.

- Synchronization of Baud Rates: The baud rate of the microcontroller and the PCA82C250T/N,112 should be matched for effective data exchange.

- Noise Immunity Considerations: In automotive environments, it's crucial to account for electromagnetic interference and noise immunity.

In this automotive application, the PCA82C250T/N,112 plays a critical role in enabling a microcontroller to communicate with the CAN bus, a key function in modern vehicle diagnostic systems. This application underscores the importance of the PCA82C250T/N,112 in automotive electronics, particularly for its robust communication capabilities. When designing circuits with this component, factors like CAN bus standards, electrical noise, and proper termination are essential to ensure optimal performance and reliability.
