NXP USA Inc. P2041NSN7PNC

Part No.:: P2041NSN7PNC

Manufacturer:: NXP USA Inc.

Package:: 780-BFBGA, FCBGA

Datasheet:: P2041NSN7PNC.pdf

Description:: IC MPU Q OR IQ 1.5GHZ 780FCBGA

In Stock:: 2445

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

P2041NSN7PNC Specifications

Package/Case:
780-BFBGA, FCBGA
Packaging:
Tray
Series:
QorIQ P2
Product Status:
Obsolete
Core Processor:
PowerPC e500mc
Numberof Cores/BusWidth:
4 Core, 32-Bit
Speed:
1.5GHz
Co-Processors/DSP:
-
RAM Controllers:
DDR3, DDR3L
Graphics Acceleration:
No
Display & Interface Controllers:
-
Ethernet:
10/100/1000Mbps (5), 10Gbps (1)
SATA:
SATA 3Gbps (2)
USB:
USB 2.0 + PHY (2)
Voltage-I/O:
1.0V, 1.35V, 1.5V, 1.8V, 2.5V, 3.3V
Operating Temperature:
0°C ~ 105°C (TA)
Grade:
-
Qualification:
Security Features:

P2041NSN7PNC this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including P2041NSN7PNC price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for P2041NSN7PNC to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

P2041NSN7PNC information

Views：

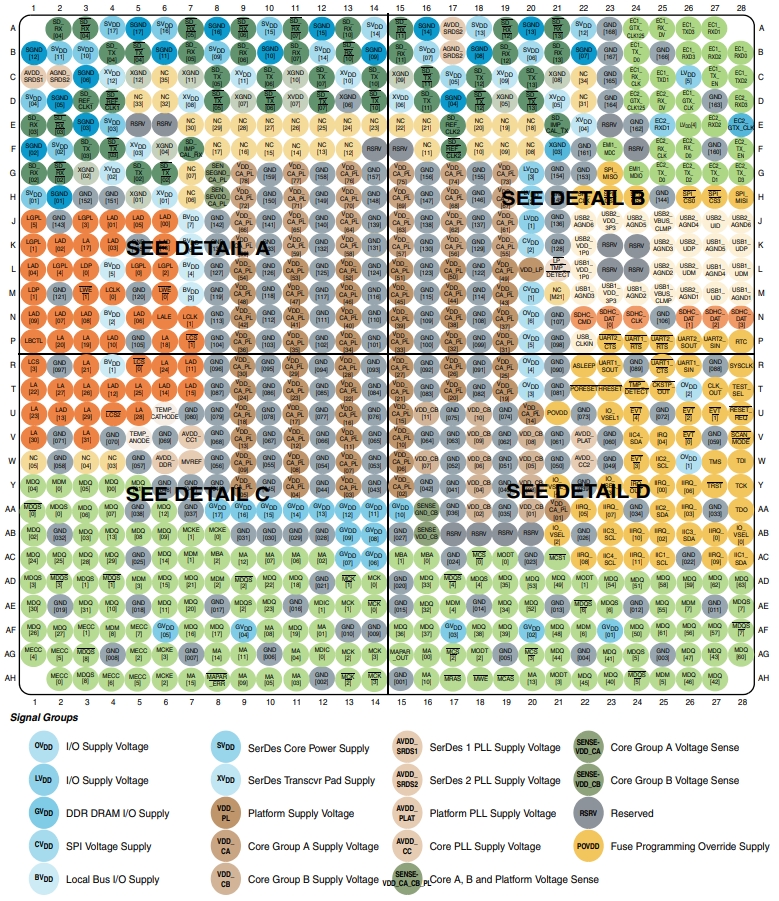

P2041NSN7PNC Typical application Circuitry

P2041NSN7PNC

The P2041NSN7PNC is a powerful integrated circuit designed to serve in high-performance computing environments requiring efficient multi-core processing, advanced connectivity, and robust security features. This processor is ideally suited for applications in network infrastructure, such as routers and switches, telecommunications equipment, and advanced industrial control systems, leveraging its processing capabilities to handle complex tasks and manage multiple data streams simultaneously.

Application Scenarios

Network Infrastructure (Routers and Switches): The P2041NSN7PNC is highly effective in network infrastructure, where its capabilities can be utilized to enhance data packet processing, routing efficiency, and network security.

Parameter Features

- Quad-Core Processor: The P2041NSN7PNC includes four processing cores, enabling high-speed multitasking and data processing.

- Integrated Security: Equipped with advanced security features, it ensures secure data transmission and protection against cyber threats.

- Multiple Connectivity Options: Supporting a range of connectivity options, including Gigabit Ethernet, PCI Express, and USB, this processor facilitates versatile network configurations and peripheral connections.

Detailed Circuit Connection: Network Router

Ethernet Interface Setup:

- Gigabit Ethernet Ports: The Ethernet pins of the P2041NSN7PNC are connected to Ethernet Physical Layer Transceivers (PHYs), which are then interfaced with RJ45 connectors for network communication. Ensuring signal integrity for high-speed data transmission involves careful PCB trace routing and impedance matching.

Power Supply Design:

- Regulated Power Supply Connection: The power pins of the P2041NSN7PNC require connection to a stable and regulated power supply, incorporating voltage regulation and filtering to safeguard against fluctuations and noise that could impact performance.

Clock Distribution:

- External Clock Source: Connecting an external, stable clock source to the clock input pins is critical for the precise timing operations of the P2041NSN7PNC. The clock source must be chosen to match the processor's specifications for optimal system performance.

Expansion and Peripheral Connectivity:

- PCI Express Configuration: PCI Express lanes from the P2041NSN7PNC are directed to expansion slots or direct PCIe devices, enabling the addition of network interfaces, storage solutions, or other peripherals. Design considerations include lane allocation and signal integrity for high-speed data transfers.

Boot and System Configuration:

- Boot Sequence Customization: The configuration pins on the P2041NSN7PNC are set to define the boot sequence and operational modes, facilitating system initialization and configuration according to specific application requirements.

Design Considerations

- Thermal Management: Efficient cooling solutions are crucial for managing the heat generated by the P2041NSN7PNC, particularly in dense network infrastructure environments. Options include passive heat sinks or active cooling systems.

- Signal Integrity for High-Speed Interfaces: Preserving signal integrity on the Gigabit Ethernet and PCI Express interfaces requires meticulous PCB design, including controlled impedance, minimizing cross-talk, and using differential pairs when necessary.

- Power Stability and Efficiency: A stable power supply is paramount, requiring careful selection of power components, including regulators and capacitors, to ensure smooth operation and minimize power consumption.

- Electromagnetic Compatibility (EMC): Ensuring EMC compliance through strategic component placement, shielding, and grounding techniques is essential to prevent interference in network operations and maintain reliable system performance.

- Modularity and Future Proofing: Designing with modularity in mind allows for system upgrades and expansion, ensuring the network infrastructure can adapt to evolving technological requirements without extensive redesigns.

In conclusion, the P2041NSN7PNC processor is adept at powering sophisticated network routers and switches, bringing together multi-core processing power, connectivity flexibility, and security into a single, efficient package. Addressing design considerations such as thermal management, signal integrity, power supply design, EMC, and future scalability is essential to fully exploit the capabilities of the P2041NSN7PNC in creating advanced, reliable network infrastructure solutions.
