Name: P1011NXN2DFB
Brand: NXP USA Inc.
SKU: P1011NXN2DFB
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. P1011NXN2DFB

Part No.:: P1011NXN2DFB

Manufacturer:: NXP USA Inc.

Package:: 689-BBGA Exposed Pad

Datasheet:: P1011NXN2DFB.pdf

Description:: IC MPU Q OR IQ 800MHZ 689TEBGA

In Stock:: 3142

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

P1011NXN2DFB Specifications

Package/Case:
689-BBGA Exposed Pad
Packaging:
Tray
Series:
QorIQ P1
Product Status:
Obsolete
Core Processor:
PowerPC e500v2
Numberof Cores/BusWidth:
1 Core, 32-Bit
Speed:
800MHz
Co-Processors/DSP:
-
RAM Controllers:
DDR2, DDR3
Graphics Acceleration:
No
Display & Interface Controllers:
-
Ethernet:
10/100/1000Mbps (3)
SATA:
-
USB:
USB 2.0 + PHY (2)
Voltage-I/O:
-
Operating Temperature:
-40°C ~ 105°C (TA)
Grade:
-
Qualification:
Security Features:

P1011NXN2DFB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including P1011NXN2DFB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for P1011NXN2DFB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

P1011NXN2DFB information

Views：

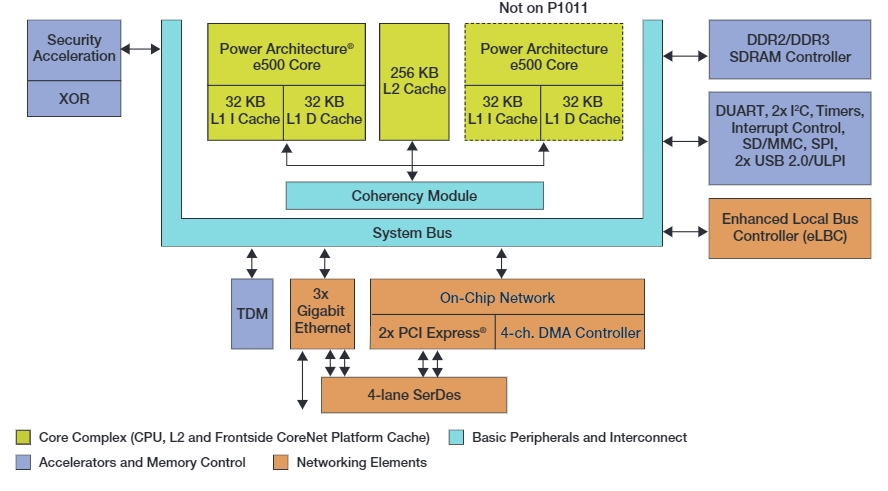

P1011NXN2DFB Typical application Circuitry

P1011NXN2DFB

The P1011NXN2DFB is a model of a PowerQUICC processor designed by NXP Semiconductors, which is typically used in embedded applications due to its integrated communications processing capabilities.

1. Integrated Communications Processor: The P1011NXN2DFB excels in handling data communication protocols, making it ideal for networking equipment like routers, switches, and gateways.

2. Power Efficiency: Optimized for low-power consumption, it supports energy-efficient applications, reducing the overall power requirements for systems.

3. Performance: This processor, which has a Power Architecture e500 core, offers a good mix of efficiency and processing power, making it appropriate for a variety of embedded computing applications.

4. Connectivity: Offers multiple connectivity options including Ethernet, PCI Express, USB, and SATA interfaces, facilitating diverse external connections.

5. Security: Features integrated security engines for encryption and secure data transmission, crucial for applications requiring data protection.

Application Scenario: Industrial Control System

In an industrial control system, the P1011NXN2DFB can serve as the central processing unit, managing tasks such as sensor data acquisition, process control, and communication with other devices. Here's a detailed circuit connection guide for integrating the P1011NXN2DFB into an industrial control system:

- Power Supply Connection: The first step involves connecting the power supply to the processor. The P1011NXN2DFB operates at core voltages of 1.0V to 1.25V, and it requires a stable power supply that can deliver adequate current for the processor and its peripherals. Connect the power supply to the VDD pins, ensuring that the power supply can handle the processor's maximum power consumption.

- Clock Source: Every processor requires a clock source for its operations. Connect a stable 33 MHz to 133 MHz clock source to the CLK_IN pin. This clock source will dictate the processor's operational frequency, affecting its performance and power consumption.

- Ethernet Connection for Networking: For an industrial control system, networking capability is crucial for communication with other devices and systems. Connect an Ethernet PHY to one of the Ethernet MAC ports available on the processor. This involves connecting the TX and RX lines from the PHY to the corresponding Ethernet MAC pins on the P1011NXN2DFB, enabling data transmission over network infrastructures.

- Memory Interface: Connect DDR3 or DDR2 memory to the processor to provide necessary working memory for the system. This involves connecting memory module pins to the corresponding DDR interface pins on the P1011NXN2DFB, ensuring proper address, data, and control signal mapping. The choice between DDR3 and DDR2 depends on the desired balance between performance and cost.

- I/O Expansion: Utilize the PCI Express interface for adding additional I/O capabilities, such as external sensors or actuators. Connect a PCI Express peripheral device to the PCI Express interface pins, ensuring that the lanes are properly matched for optimal data transfer rates.

Design Considerations:

When designing a circuit with the P1011NXN2DFB, several key considerations must be taken into account:

- Thermal Management: Given the processor's power consumption, adequate cooling solutions must be designed to maintain operational temperatures within safe limits.

- EMI/EMC Compliance: Ensure the design meets electromagnetic interference and compatibility standards to prevent operational disruptions and comply with regulatory requirements.

- Power Supply Stability: The power supply must be capable of delivering clean and stable power to the processor and its peripherals, with minimal noise and ripple.

- Signal Integrity: To guarantee signal integrity and dependable system performance, pay close attention to the routing of high-speed signals, particularly for memory and Ethernet connections.

In summary, the P1011NXN2DFB offers a versatile and powerful solution for embedded applications requiring efficient data processing and communication capabilities. By carefully designing the circuit with attention to power, thermal management, and signal integrity, one can leverage the full capabilities of this processor in a wide range of industrial control systems.
