ON Semiconductor NLSX4373MUTAG

Part No.:: NLSX4373MUTAG

Manufacturer:: ON Semiconductor

Package:: 8-UFDFN

Datasheet:: NLSX4373MUTAG.pdf

Description:: IC TRNSLTR BIDIRECTIONAL 8UDFN

In Stock:: 542

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NLSX4373MUTAG Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
2
Voltage-VCCA:
1.5 V ~ 5.5 V
Voltage-VCCB:
1.5 V ~ 5.5 V
InputSignal:
-
OutputSignal:
-
OutputType:
Open Drain, Tri-State
DataRate:
20Mbps
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
Auto-Direction Sensing
MountingType:
Surface Mount

NLSX4373MUTAG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NLSX4373MUTAG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NLSX4373MUTAG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NLSX4373MUTAG information

Views：

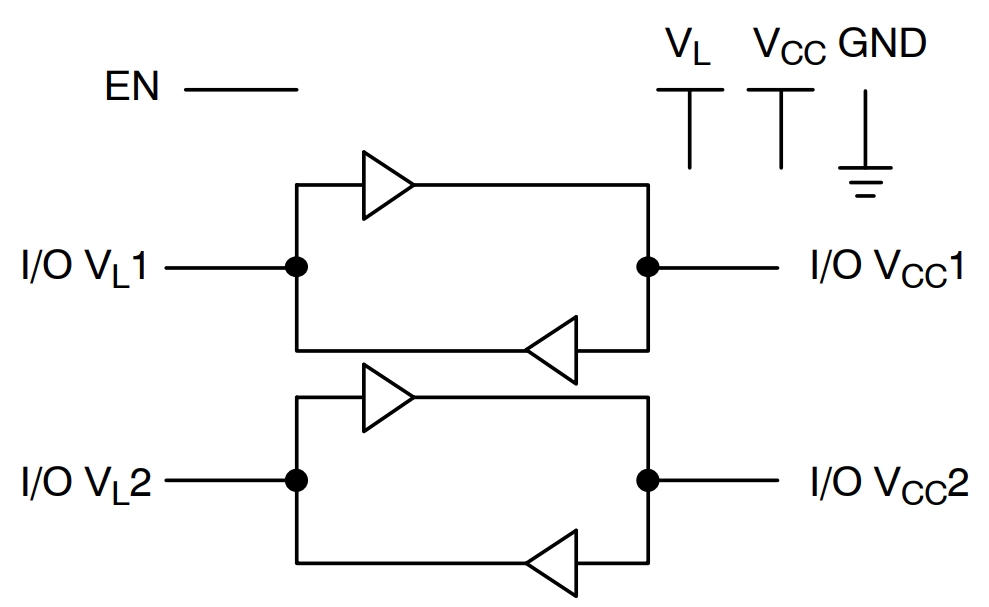

NLSX4373MUTAG Typical application Circuitry

NLSX4373MUTAG

The NLSX4373MUTAG is a bidirectional dual-supply level translator designed for multi-voltage digital system applications. The device allows for bidirectional voltage translations between 1.0 V and 5.5 V without requiring a directional pin.

Functionality and Applications

The primary function of the NLSX4373MUTAG is to bridge systems that operate at different voltage levels. This makes it crucial in applications such as:

- Multi-voltage systems where communication needs to occur between devices operating at different voltage levels.

- Digital interfacing between microcontrollers, sensors, and other peripherals with disparate voltage requirements.

- I2C or SMBus interfaces that require voltage level translation.

Key Parameters:

1. VCCA and VCCB Pins: These pins define the voltage levels that the chip will translate between. VCCA can be from 1.0 V to VCCB and VCCB can be from 1.1 V to 5.5 V.

2. Bidirectional Interface: This chip can translate signals going in either direction without the need for a direction control pin.

3. Low On-Capacitance and Low Power Consumption: Suitable for applications sensitive to power consumption.

Circuit Connection:

1. VCCA and VCCB: Connect these to the two voltage sources you want to translate between.

2. A1, A2 Pins: Connect these to the low-voltage side.

3. B1, B2 Pins: Connect these to the high-voltage side.

4. GND: Connect to the system ground.

For example, if you're connecting a 1.8 V MCU to a 5 V sensor:

- Connect VCCA to the 1.8 V supply and VCCB to the 5 V supply.

- Connect A1 and A2 to the MCU data lines.

- Connect B1 and B2 to the sensor data lines.

- Ensure GND is connected to the ground of both systems.

Design Considerations:

1. Power Sequencing: VCCA should be equal to or less than VCCB. Ensure that VCCA is powered on first before VCCB.

2. Pull-Up Resistors: For I2C or SMBus, pull-up resistors might be required at the inputs.

3. Bypass Capacitors: Place bypass capacitors close to the VCCA and VCCB pins to filter out noise.

4. Protection: Ensure that the input voltage levels do not exceed the specified limits for the device.

By integrating the NLSX4373MUTAG into system designs, engineers can seamlessly bridge different voltage domains, ensuring robust and efficient communication between components. Proper implementation requires attention to power sequencing and potential requirements for pull-up resistors, making careful design and prototyping crucial for success.
