What is the Additional Feature ?

Name: NLAS3158MNR2G
Brand: ON Semiconductor
SKU: NLAS3158MNR2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor NLAS3158MNR2G

Part No.:: NLAS3158MNR2G

Manufacturer:: ON Semiconductor

Package:: 12-WFDFN Exposed Pad

Datasheet:: NLAS3158MNR2G.pdf

Description:: IC SWITCH DUAL SPDT 12DFN

In Stock:: 2498

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NLAS3158MNR2G Specifications

Package/Case:
12-WFDFN Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
2
On-StateResistance(Max):
13Ohm
Channel-to-ChannelMatching(ΔRon):
150mOhm
Voltage-SupplySingle(V+):
1.65V ~ 5.5V
Voltage-SupplyDual(V±):
-
SwitchTime(TonToff)(Max):
5.2ns, 3.5ns
-3dbBandwidth:
250MHz
ChargeInjection:
7pC
ChannelCapacitance(CS(off)CD(off)):
2.3pF
Current-Leakage(IS(off))(Max):
100nA
Crosstalk:
-54dB @ 10MHz
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

NLAS3158MNR2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NLAS3158MNR2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NLAS3158MNR2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NLAS3158MNR2G information

Views：

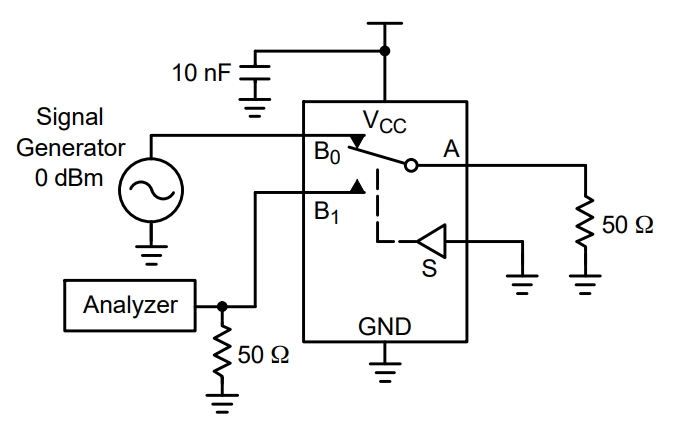

NLAS3158MNR2G Typical application Circuitry

NLAS3158MNR2G

The NLAS3158MNR2G is a high-performance analog switch developed by ON Semiconductor. It's a dual single-pole, double-throw (SPDT) switch, designed for multiplexing and signal routing in various applications. The chip is known for its low on-resistance and high bandwidth, making it a suitable choice for analog signal switching.

Applications of NLAS3158MNR2G:

This analog switch is versatile, finding its use in audio signal routing, data acquisition systems, communication systems, and other applications where precision signal routing is required. The NLAS3158MNR2G is particularly useful in scenarios where low distortion and crosstalk are crucial.

Key Features of NLAS3158MNR2G:

1. Low On-Resistance: Ensures minimal signal loss and distortion during routing.

2. High Bandwidth: Capable of handling high-frequency signals without significant degradation.

3. Dual SPDT Configuration: Provides flexibility in routing two different signals simultaneously.

Detailed Circuit Connection for Audio Signal Routing:

In an audio signal routing scenario, the NLAS3158MNR2G can be used to route audio signals from multiple sources to a single output. The setup involves the following detailed steps:

1. Power Supply Connection:

- Positive Supply (VCC): Connect the VCC pin (Pin 16) of the NLAS3158MNR2G to the positive terminal of the power supply.

- Negative Supply (GND): Connect the GND pin (Pin 8) to the ground of the power supply.

2. Audio Source Interface:

- Input Connection: Connect two audio sources to the NC (normally closed) pins (Pins 1, 10) and the NO (normally open) pins (Pins 4, 13) of the NLAS3158MNR2G.

3. Output Interface:

- Output Connection: Connect the common output pins (Pins 3, 12) to the input of the audio amplifier or speaker system.

4. Control Logic:

- Switch Control: Connect the control pins (Pins 6, 15) to the microcontroller or control logic to switch between the audio sources.

5. Decoupling Capacitors:

- Noise Reduction: Place decoupling capacitors near the VCC and GND pins to minimize power supply noise.

Considerations for Circuit Design:

When creating a circuit using the NLAS3158MNR2G, keep the following things in mind:

1. Quality of Power Supply: Maintain a clean and steady power source for the VCC in order to reduce noise and guarantee reliable switch operation.

2. Signal Integrity: To minimize noise pickup and signal deterioration, keep audio signal routes as brief as feasible.

3. Compatibility with Control Logic: Verify that the control pin voltage levels of the NLAS3158MNR2G are compatible with the control logic values.

4. Decoupling for Noise Reduction: Implement proper decoupling techniques to minimize noise on the power supply lines, ensuring high-quality audio signal routing.

In conclusion, the NLAS3158MNR2G is a versatile component suitable for precision signal routing applications, like audio systems. A deep understanding of its operational characteristics and a meticulous approach to circuit design are crucial for harnessing its capabilities to develop sophisticated and efficient signal routing systems.
