What is the Additional Feature ?

Name: NLAS2750MUTAG-L22186
Brand: ON Semiconductor
SKU: NLAS2750MUTAG-L22186
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor NLAS2750MUTAG-L22186

Part No.:: NLAS2750MUTAG-L22186

Manufacturer:: ON Semiconductor

Package:: 10-UFQFN

Datasheet:

Description:: IC SWITCH DUAL SPDT 10UQFN

In Stock:: 2543

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NLAS2750MUTAG-L22186 Specifications

Package/Case:
10-UFQFN
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
SwitchCircuit:
SPDT
Multiplexer/DemultiplexerCircuit:
2:1
NumberofCircuits:
2
On-StateResistance(Max):
1.3Ohm
Channel-to-ChannelMatching(ΔRon):
100mOhm
Voltage-SupplySingle(V+):
1.8V ~ 5.5V
Voltage-SupplyDual(V±):
1.8V ~ 5.5V
SwitchTime(TonToff)(Max):
150ns, 130ns
-3dbBandwidth:
44MHz
ChargeInjection:
60pC
ChannelCapacitance(CS(off)CD(off)):
5pF
Current-Leakage(IS(off))(Max):
250nA
Crosstalk:
-61dB @ 300kHz
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

NLAS2750MUTAG-L22186 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NLAS2750MUTAG-L22186 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NLAS2750MUTAG-L22186 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NLAS2750MUTAG-L22186 information

Views：

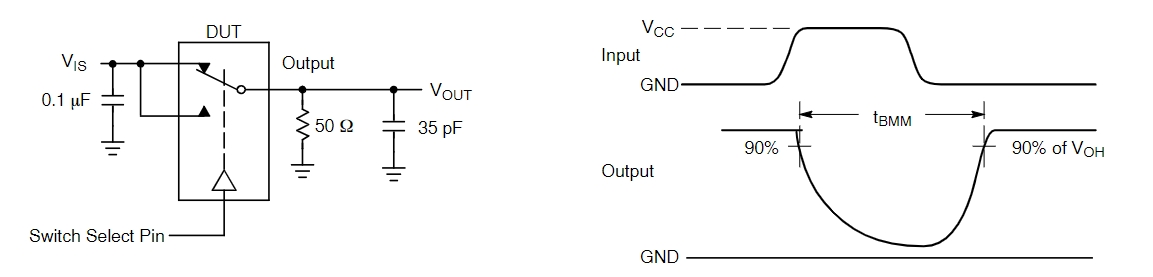

NLAS2750MUTAG-L22186 Typical application Circuitry

NLAS2750MUTAG-L22186

NLAS2750MUTAG-L22186 A common use for this type of switch is to multiplex sensors in a data acquisition system, allowing multiple sensors to share a single analog-to-digital converter (ADC).

Parameters and Features

Characteristics of the NLAS2750MUTAG-L22186 include:

- Wide Operating Voltage Range: Functions over a broad voltage range, generally between 1.65V and 5.5V.

- Low On-Resistance: Minimizes signal loss when the switch is active.

- Bidirectionality: Facilitates signal routing in both directions, enhancing its multiplexing capabilities.

Circuit Example: Multiplexing Sensors

Let's construct a circuit that multiplexes two sensors into a single ADC channel.

Circuit Connection

1. Power Connection: Link VCC (Pin 16) to a +3.3V power supply and GND (Pin 10) to the circuit ground.

2. Sensor Inputs: Connect sensor 1 to COM0 (Pin 1) and sensor 2 to COM1 (Pin 15).

3. Control Logic: Apply control voltages to S0 (Pin 9) and S1 (Pin 8) to select which sensor is routed to the ADC. The logic level here dictates the selection.

4. ADC Connection: The selected sensor signal is routed to the ADC via NO0 (Pin 2) and NO1 (Pin 14).

Design Considerations

When deploying the NLAS2750MUTAG-L22186, consider the following factors:

- Signal Purity: Ensure the input signals from the sensors are not contaminated with noise.

- Stable Power Supply: Maintain a regulated power supply to the switch for reliable operation.

- Control Signal Synchronization: Align control signals with sensor readings to prevent data corruption during sensor switching.

- Isolation of Signal Paths: Arrange signal traces to minimize interference, thereby reducing crosstalk.

By incorporating the NLAS2750MUTAG-L22186 into a sensor multiplexing application, you can effectively increase the capacity of data acquisition systems, allowing for more sensors to be read with fewer ADC channels. This not only streamlines the design but also reduces costs and complexity.
