What is the Additional Feature ?

Name: NL17SZ74USG
Brand: ON Semiconductor
SKU: NL17SZ74USG
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor NL17SZ74USG

Part No.:: NL17SZ74USG

Manufacturer:: ON Semiconductor

Package:: US8

Datasheet:: NL17SZ74USG.pdf

Description:: IC FF D-TYPE SNGL 1BIT US8

In Stock:: 3017

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NL17SZ74USG Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
17SZ
ProductStatus:
Obsolete
Function:
Set(Preset) and Reset
Type:
D-Type
OutputType:
Complementary
NumberofElements:
1
NumberofBitsperElement:
1
ClockFrequency:
200 MHz
MaxPropagationDelay@VMaxCL:
5ns @ 5V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Iq):
1 µA
InputCapacitance:
7 pF
OperatingTemperature:
-55°C ~ 125°C (TA)
MountingType:
Surface Mount

NL17SZ74USG this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NL17SZ74USG price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NL17SZ74USG to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NL17SZ74USG information

Views：

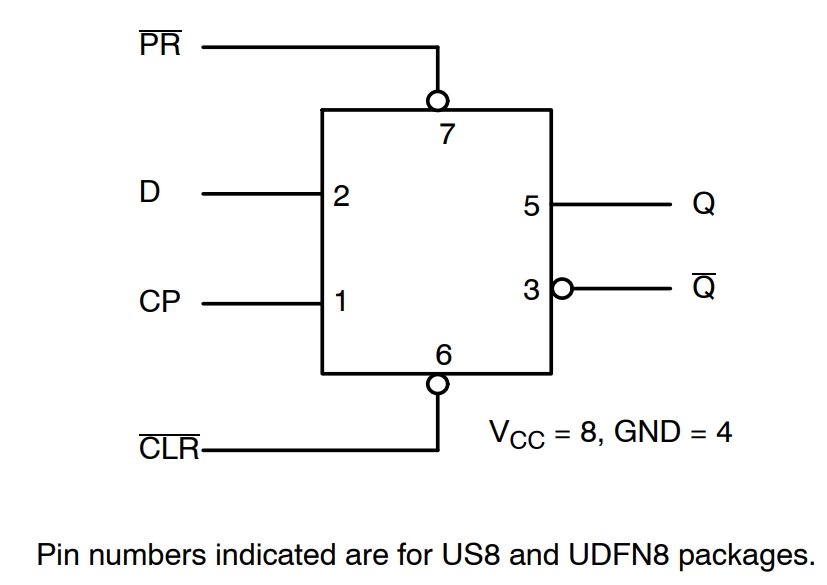

NL17SZ74USG Typical application Circuitry

NL17SZ74USG

The NL17SZ74USG is a chip known as a D-type Flip-Flop. This device is a fundamental building block in digital electronics, often used for its ability to store a single bit of data and provide a stable output regardless of input noise.

Application Scenarios

A common application of D-type flip-flops like the NL17SZ74USG is in digital memory storage and data synchronization. They are often used in shift registers, counters, and as storage elements in various digital systems.

Parameters and Features

Key characteristics of the NL17SZ74USG include:

- Operation with a VCC range typically from 1.65V to 5.5V.

- The capability to operate at high speeds, making it suitable for fast digital circuits.

- Low power consumption, enhancing its suitability for battery-operated devices.

Circuit Example: Creating a Simple Toggle Switch

Let's consider using the NL17SZ74USG to design a simple toggle switch that changes its output state with each button press.

Circuit Connection

1. Power Supply: Attach Pin 14 (VCC pin) to a +5V power supply and Pin 7 (GND pin) to the earth.

2. Clock Input: Attach a normally open push-button switch between the clock input pin (Pin 3) and the +5V power supply. Add a 10kΩ pull-down resistor between the clock input pin and ground to ensure a clear low signal when the button is not pressed.

3. Data Input: Attach Pin 2 (D input) to Pin 5 (Q' output). This configuration ensures that with each clock pulse, the D input toggles, changing the output state.

4. Output: The Q output pin (Pin 1) delivers the toggled signal. This pin can be connected to subsequent digital circuits or a visual indicator like an LED (with a suitable current-limiting resistor).

Design Considerations

When incorporating the NL17SZ74USG into a circuit, consider these factors:

- Input Debouncing: Mechanical switches used for the clock input can introduce noise; hence, a debouncing circuit may be necessary.

- Power Supply Quality: To avoid inconsistent flip-flop behavior, make sure the power supply is steady and clean.

- Propagation Delays: Be aware of the propagation delays within the flip-flop and how they might affect timing-sensitive applications.

- Load Capacitance: Abide by the manufacturer's specifications regarding the load that can be driven by the output pin.

Through understanding and careful consideration of these aspects, the NL17SZ74USG can be effectively utilized in a wide array of digital applications, including the toggle switch circuit detailed above.
