What is the Additional Feature ?

Name: NL17SZ14DFT2G
Brand: ON Semiconductor
SKU: NL17SZ14DFT2G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

ON Semiconductor NL17SZ14DFT2G

Part No.:: NL17SZ14DFT2G

Manufacturer:: ON Semiconductor

Package:: SC-88A (SC-70-5/SOT-353)

Datasheet:: NL17SZ14DFT2G.pdf

Description:: IC INVERT SCHMITT 1CH 1-IN SC88A

In Stock:: 3938

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NL17SZ14DFT2G Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
17SZ
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
1
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.2V ~ 1.2V
LogicLevel-High:
1.4V ~ 3.6V
MaxPropagationDelay@VMaxCL:
5.9ns @ 5V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

NL17SZ14DFT2G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NL17SZ14DFT2G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NL17SZ14DFT2G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NL17SZ14DFT2G information

Views：

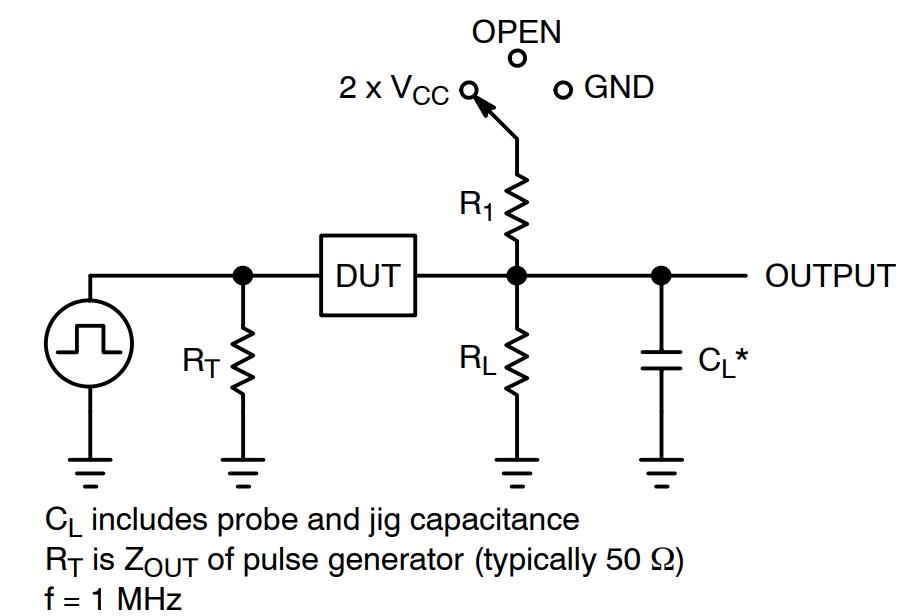

NL17SZ14DFT2G Typical application Circuitry

NL17SZ14DFT2G

The NL17SZ14DFT2G is a type of chip known as a Schmitt-Trigger Inverter. This component is often used in digital electronics due to its unique properties.

Applications

One common application for the NL17SZ14DFT2G is in signal conditioning. Digital signals can become degraded due to noise, long distances, or other factors. A Schmitt-Trigger Inverter can clean up these signals, ensuring that digital logic circuits receive a clear, distinct input.

Parameters and Characteristics

The NL17SZ14DFT2G has several key characteristics:

- It operates with a supply voltage range typically from 1.65V to 5.5V.

- It features Schmitt-Trigger input circuitry for noise immunity.

- It can function in a broad temperature range, usually between -55 and +125 degrees Celsius.

Circuit Example: Debouncing a Mechanical Switch

One specific scenario where the NL17SZ14DFT2G can be used is in debouncing a mechanical switch. Mechanical switches often produce noisy signals when toggled due to mechanical vibrations causing rapid on-off states (bounce). A Schmitt-Trigger Inverter can clean this signal.

Circuit Connection

1. Power Supply: Connect the VCC pin (Pin 5) of the NL17SZ14DFT2G to a +5V power supply and the GND pin (Pin 4) to the ground.

2. Input Connection: Connect one terminal of the mechanical switch to the input pin (Pin 1) of the NL17SZ14DFT2G and the other terminal to the +5V power supply.

3. Pull-Down Resistor: Attach a 10kΩ resistor between the input pin (Pin 1) and the ground. This ensures that the input is pulled low when the switch is open, avoiding floating input states.

4. Output: The output pin (Pin 2) of the NL17SZ14DFT2G will provide a clean, debounced digital signal corresponding to the switch's state.

Design Considerations

When designing circuits with the NL17SZ14DFT2G, several factors must be considered:

- Power Supply Stability: Ensure that the power supply is within the chip's operating range and is stable to prevent erratic behavior.

- Input Noise Levels: High levels of noise can still affect performance; additional filtering may be required for extremely noisy environments.

- Temperature: If the circuit is to operate in extreme temperatures, ensure that the components' specifications are within acceptable ranges.

- Load Capacitance: To guarantee correct operation, the load on the output pin shouldn't go above the given bounds.

By considering these factors and utilizing the NL17SZ14DFT2G in your designs, you can effectively manage digital signals and mitigate issues such as noise and signal degradation.

NL17SZ14DFT2G FAQ

1. How to order NL17SZ14DFT2G on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that NL17SZ14DFT2G is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the NL17SZ14DFT2G. All suppliers must pass our qualification reviews before they can publish their products including NL17SZ14DFT2G on icwhale.com; we pay more attention to the channels and quality of NL17SZ14DFT2G products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the NL17SZ14DFT2G price and inventory displayed accurate?

The price and inventory of NL17SZ14DFT2G fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of NL17SZ14DFT2G?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the NL17SZ14DFT2G we delivered, we will accept the replacement or return of the NL17SZ14DFT2G only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of NL17SZ14DFT2G.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
