Texas Instruments NE556DR

Part No.:: NE556DR

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: NE556DR.pdf

Description:: IC OSC TIMER DUAL 100KHZ 14SOIC

In Stock:: 2752

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE556DR Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
555 Type, Timer/Oscillator (Dual)
Count:
-
Frequency:
100kHz
Voltage-Supply:
4.5V ~ 16V
Current-Supply:
20 mA
OperatingTemperature:
0°C ~ 70°C

NE556DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE556DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE556DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE556DR information

Views：

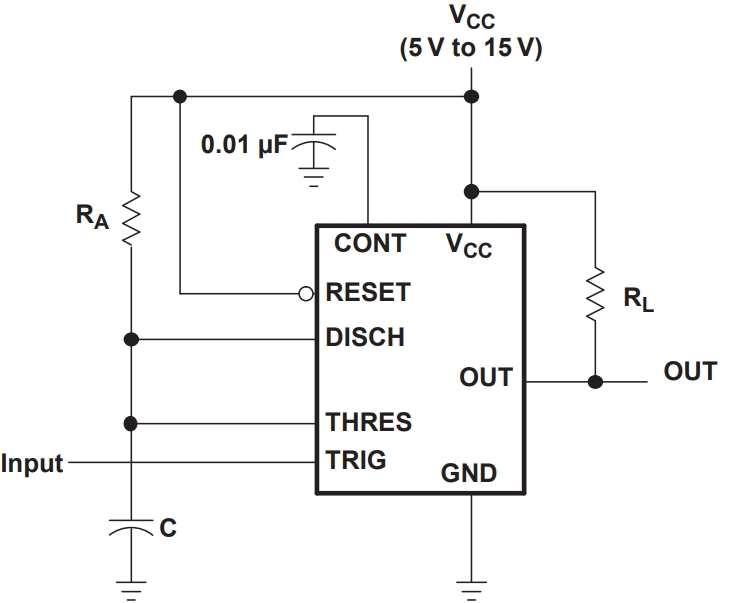

NE556DR Typical application Circuitry

NE556DR

The NE556DR is a dual precision timer IC, functioning as two NE555 timers in a single package. It's a highly versatile chip used for generating accurate time delays and oscillations, widely employed in a multitude of applications ranging from simple timing circuits to complex sequential systems.

Applications of NE556DR:

The NE556DR is commonly used in timing circuits, pulse generation, sequential timing, tone generation, and in precision timing solutions. Its reliability and flexibility make it a preferred choice in consumer electronics, industrial controls, and even in hobbyist projects for pulse generation and timing operations.

Key Features of NE556DR:

1. Dual Timer Functionality: Contains two independent timers that can be used simultaneously or separately.

2. Adjustable Duty Cycle: Provides precise control over the output waveforms.

3. High Output Current: Capable of driving TTL or relay outputs.

Detailed Circuit Connection for a Sequential Timing Circuit:

In a sequential timing circuit scenario, where the NE556DR is used to drive a series of events in sequence, the setup involves the following detailed steps:

1. Power Supply Connection:

- VCC Connection: Connect the VCC pin (Pin 14) of the NE556DR to the positive terminal of the power supply.

- Ground Connection: Connect the GND pin (Pin 7) to the ground of the power supply.

2. Timer 1 Configuration (First Stage):

- Trigger Connection: Connect the trigger pin (Pin 6) to a momentary push button switch that connects to ground when pressed.

- Threshold and Discharge: Connect a resistor (R1) from VCC to the threshold pin (Pin 2) and the discharge pin (Pin 1). Also, connect a capacitor (C1) from the threshold pin (Pin 2) to the ground. This sets the timing interval.

- Output Connection: Connect the output pin (Pin 5) to the input of the next stage or to an LED for indication.

3. Timer 2 Configuration (Second Stage):

- Trigger Connection: Connect the trigger pin (Pin 8) to the output of the first timer.

- Threshold and Discharge: Connect a resistor (R2) from VCC to the threshold pin (Pin 12) and the discharge pin (Pin 13). Also, connect a capacitor (C2) from the threshold pin (Pin 12) to the ground. This sets the timing interval for the second stage.

- Output Connection: Attach Pin 9, the output pin, to either the following step in the sequence or an LED to indicate the condition.

4. Decoupling Capacitor:

- Noise Reduction: Place a decoupling capacitor close to the VCC and GND pins to minimize power supply noise.

Circuit Design Considerations:

When designing a circuit with the NE556DR, consider the following:

1. Stable Power Supply: Ensure that the power supply is stable and clean to prevent timing inaccuracies due to voltage fluctuations.

2. Component Selection: Carefully select the resistors (R1, R2) and capacitors (C1, C2) to achieve the desired timing intervals. The timing interval can be calculated based on the formula T = 1.1 * R * C.

3. Decoupling for Noise Suppression: Implement proper decoupling techniques to minimize noise, especially if the circuit is part of a larger system with potential interference.

4. Output Load: Consider the current driving capability of the NE556DR and ensure that the connected load does not exceed the maximum output current specifications.

In conclusion, the NE556DR is a versatile and reliable component for creating precise timing and sequential circuits. A thorough understanding of its operation, combined with careful circuit design and component selection, is crucial for leveraging its capabilities in a wide range of applications.
