Texas Instruments NE555V

Part No.:: NE555V

Manufacturer:: Texas Instruments

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:: NE555V.pdf

Description:: IC OSC SINGLE TIMER 100KHZ 8DIP

In Stock:: 2412

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE555V Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
100kHz
Voltage-Supply:
4.5V ~ 16V
Current-Supply:
10 mA
OperatingTemperature:
0°C ~ 70°C

NE555V this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE555V price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE555V to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE555V information

Views：

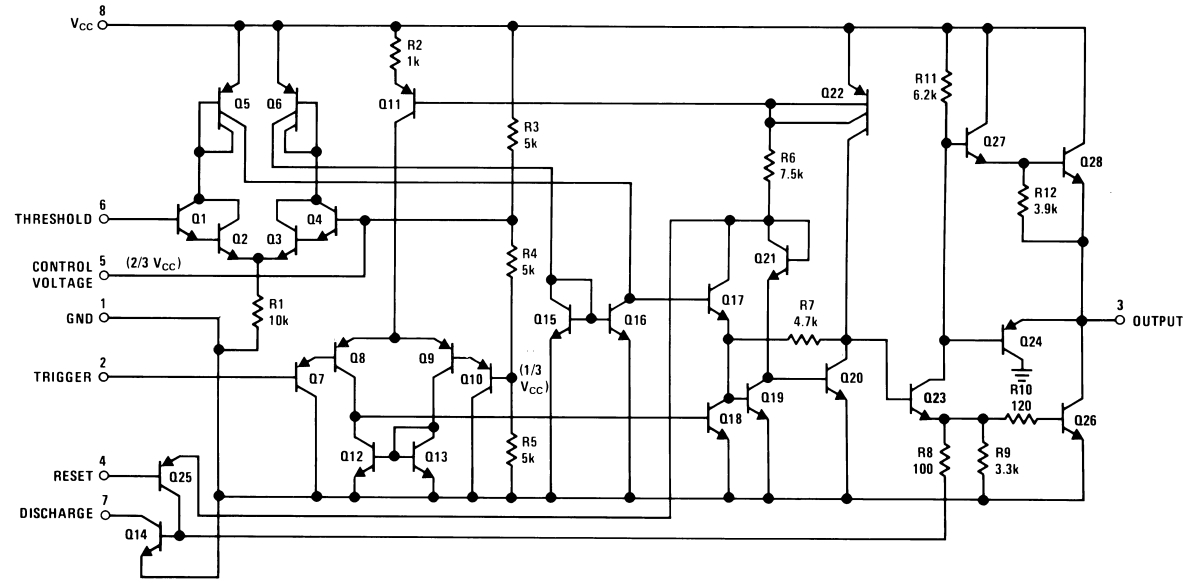

NE555V Typical application Circuitry

NE555V

The NE555V is presumed to be a variant of the classic NE555 timer IC, a versatile chip used for generating precise time delays or oscillations. Applications range from creating timers and pulse generators to oscillators and more.

Key parameters and features typically associated with the NE555 family might include

1. Voltage Range: Operational between 4.5V to 15V, or more depending on the variant.

2. Output Current: Capable of driving up to 200 mA or more, depending on the specific model.

3. Timing Range: From microseconds up to hours.

4. Temperature Stability: Offers a reliable performance across a range of temperatures.

Let's focus on an Astable Multivibrator application, which is a simple oscillator circuit.

Circuit Connection

- Pin 1 (GND): Attach to the power source's ground.

- Pin 2 (Trigger): Link this pin directly to Pin 6 (Threshold).

- Pin 3 (Output): This is where the oscillating output can be observed or utilized.

- Pin 4 (Reset): Connect to Vcc if the reset function isn't required.

- Pin 5 (Control Voltage): Often left unconnected, but can be tied to a capacitor to GND for noise reduction.

- Pin 6 (Threshold): Connected to Pin 2 and to one end of the timing capacitor, C1.

- Pin 7 (Discharge): Tied to the junction of the timing resistors, R1 and R2.

- Pin 8 (Vcc): Connected to the power supply's positive terminal.

Timing Components:

- R1: Connect one side to Vcc and the other to Pin 7.

- R2: Connect one side to Pin 7 and the other to one terminal of C1.

- C1: One side is connected to Pin 6 and the other to GND.

Oscillation Frequency:

The formula f = 1.44 / ((R1 + 2*R2) * C1) can be used to find the oscillation's frequency (f).

Design Points to Remember

1. Stability: Use a stable power supply and place a decoupling capacitor close to the Vcc and GND pins of the NE555V.

2. Component Tolerances: Select R1, R2, and C1 with tight tolerances for precise frequency control.

3. Load Characteristics: Ensure that the output can adequately drive the load connected to Pin 3.

4. Thermal Considerations: Ensure adequate heat dissipation if the NE555V is sourcing/sinking significant current.

The NE555V in an astable configuration is an effective way to generate a stable square wave signal useful in various timing and oscillation applications.
