Texas Instruments NE555PWRE4

Part No.:: NE555PWRE4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP (0.173, 4.40mm Width)

Datasheet:: NE555PWRE4.pdf

Description:: IC OSC SGL TIMER 100KHZ 8TSSOP

In Stock:: 3448

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE555PWRE4 Specifications

Package/Case:
8-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
100kHz
Voltage-Supply:
4.5V ~ 16V
Current-Supply:
10 mA
OperatingTemperature:
0°C ~ 70°C

NE555PWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE555PWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE555PWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE555PWRE4 information

Views：

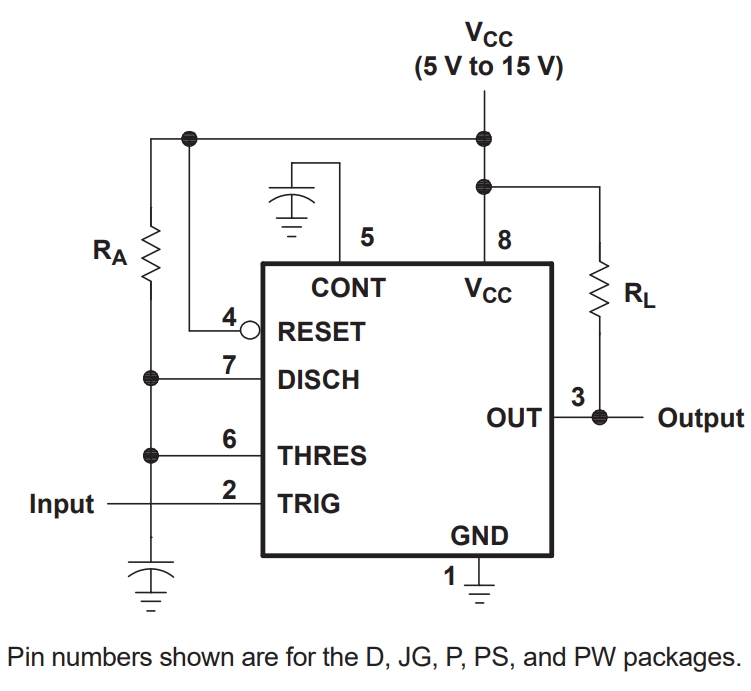

NE555PWRE4 Typical application Circuitry

NE555PWRE4

The NE555PWRE4 is a variant of the well-known NE555 timer IC, designed for timing and pulse generation applications. Its applications are diverse and can range from creating simple timers and pulse generators to more complex applications such as tone generation, PWM (pulse width modulation), and even digital logic circuits.

Typical parameters and features associated with the NE555 family include:

1. Voltage Range: It can usually operate between 4.5V to 15V.

2. Output Current: Up to 200 mA can be supplied or sunk by it.

3. Timing Range: This Can create delays from microseconds to hours.

4. Temperature Stability: Generally has a stable performance across various temperatures.

Let's explore a practical application by constructing a PWM (Pulse Width Modulation) Circuit using the NE555PWRE4.

Circuit Setup:

- Pin 1 (GND): This pin is grounded.

- Pin 2 (Trigger): Attached to Pin 6 and to the C1 capacitor's end.

- Pin 3 (Output): Outputs the PWM signal.

- Pin 4 (Reset): Tied to Vcc to avoid accidental resets.

- Pin 5 (Control Voltage): For a stable operation, it's connected to a capacitor (typically 0.01µF) that goes to the ground.

- Pin 6 (Threshold): This pin is connected to Pin 2 and to a potentiometer (Variable resistor, VR1) for PWM control.

- Pin 7 (Discharge): Linked to VR1 and the discharge end of C1.

- Pin 8 (Vcc): Attached to the power supply's positive terminal.

Timing Components:

- VR1 (Variable Resistor): Determines the duty cycle of the PWM signal.

- C1: The capacitor that charges and discharges, controlling the time period of the PWM signal.

PWM Frequency:

The frequency (f) of the PWM signal can be determined using the formula f = 1.44 / ((R1 + 2*VR1) * C1), where R1 is the resistance from Vcc to Pin 7.

Design Considerations:

1. Power Supply: Ensure that it matches the NE555PWRE4 voltage requirements.

2. Heat Dissipation: If a high current flows through the output, consider heat dissipation.

3. Signal Stability: To stabilize the power supply, place a decoupling capacitor next to the GND and Vcc pins.

4. Duty Cycle Range: The range of VR1 should be chosen to provide the desired duty cycle range for the application.

5. Load Compatibility: Ensure that the PWM signal characteristics are suitable for the load being driven.

In a PWM application, the NE555PWRE4 can effectively control the power delivered to a load, such as an LED or a motor, by adjusting the duty cycle of the signal. This is particularly useful in applications requiring variable speed or brightness control.
