What is the Additional Feature ?

Name: NE555PW
Brand: Texas Instruments
SKU: NE555PW
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments NE555PW

Part No.:: NE555PW

Manufacturer:: Texas Instruments

Package:: 8-TSSOP (0.173, 4.40mm Width)

Datasheet:: NE555PW.pdf

Description:: IC OSC SGL TIMER 100KHZ 8TSSOP

In Stock:: 13001

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE555PW Specifications

Package/Case:
8-TSSOP (0.173, 4.40mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
100kHz
Voltage-Supply:
4.5V ~ 16V
Current-Supply:
10 mA
OperatingTemperature:
0°C ~ 70°C

NE555PW this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE555PW price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE555PW to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE555PW information

Views：

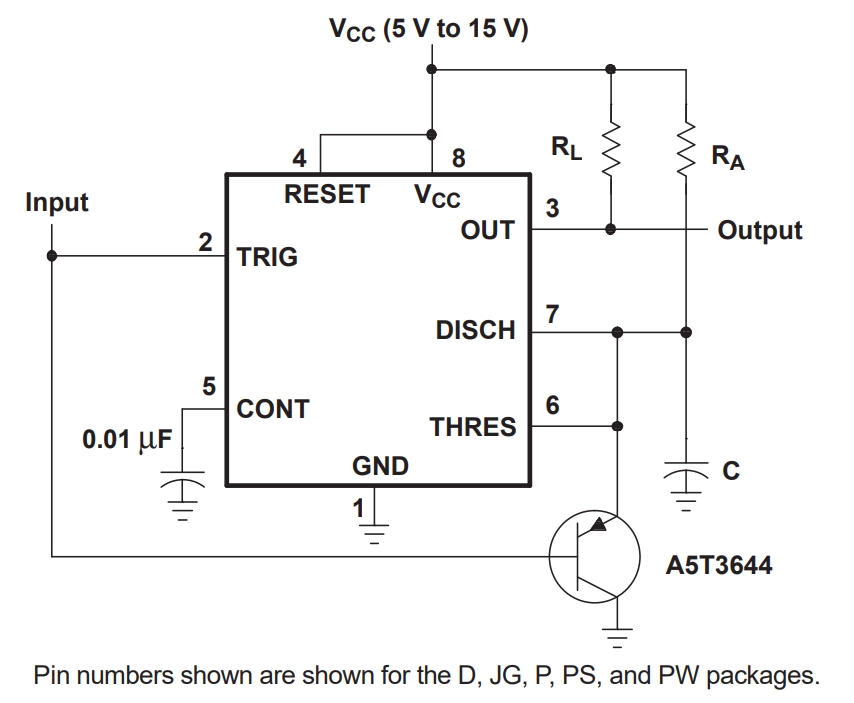

NE555PW Typical application Circuitry

NE555PW

The NE555PW is a highly adaptable timer IC utilized for various timing and pulsing tasks. This chip finds utility in diverse scenarios including but not limited to simple delay mechanisms, intricate pulse generators, sound production in devices, PWM (Pulse Width Modulation) for controlling device intensity, and as integral components in digital circuits.

Characteristics typical to the NE555PW encompass:

1. Voltage Adaptability: Operates effectively within a range of 4.5V to 15V.

2. Current Output: Capable of driving or sinking up to 200 mA.

3. Versatile Timing: Can generate time delays from microseconds up to several hours.

4. Thermal Consistency: Maintains stable operation across varied temperature ranges.

Delving into a practical usage, let's design a PWM Circuit employing the NE555PW.

Circuit Configuration:

- Pin 1 (GND): Ground connection established.

- Pin 2 (Trigger): Connected to both Pin 6 and one end of capacitor C1.

- Pin 3 (Output): This is where the PWM signal is derived.

- Pin 4 (Reset): Directly connected to Vcc to negate any unintentional resets.

- Pin 5 (Control Voltage): A capacitor (often 0.01µF) is connected from this pin to ground to stabilize operations.

- Pin 6 (Threshold): Interlinked with Pin 2 and to a variable resistor VR1 for PWM modulation.

- Pin 7 (Discharge): Connected to VR1 and the discharging side of C1.

- Pin 8 (Vcc): This is where the power supply's positive side is connected.

Timing Elements:

- VR1 (Variable Resistor): Crucial for setting the PWM signal's duty cycle.

- C1 (Capacitor): This capacitor's charge and discharge cycles dictate the timing of the PWM signal.

PWM Frequency Determination:

The frequency (f) of the PWM is calculable using f = 1.44 / ((R1 + 2*VR1) * C1), where R1 represents the resistance from Vcc to Pin 7.

Design Precautions:

1. Power Supply Matching: It should be compatible with the NE555PW's voltage criteria.

2. Thermal Management: Pay attention to heat dissipation especially if high current is expected at the output.

3. Signal Integrity: Place a decoupling capacitor adjacent to the GND and Vcc pins to stabilize the power supply.

4. Duty Cycle Flexibility: Select VR1's range to facilitate the desired duty cycle for the application.

5. Load Consideration: The load must be compatible with the characteristics of the PWM signal.

In applications demanding variable control such as motor speed regulation or LED brightness adjustment, the NE555PW proves invaluable. By modulating the PWM signal's duty cycle, it enables precise control over the power delivered to a device.

NE555PW FAQ

1. How to order NE555PW on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that NE555PW is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the NE555PW. All suppliers must pass our qualification reviews before they can publish their products including NE555PW on icwhale.com; we pay more attention to the channels and quality of NE555PW products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the NE555PW price and inventory displayed accurate?

The price and inventory of NE555PW fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of NE555PW?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the NE555PW we delivered, we will accept the replacement or return of the NE555PW only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of NE555PW.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
