Name: NE555PSRG4
Brand: Texas Instruments
SKU: NE555PSRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments NE555PSRG4

Part No.:: NE555PSRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.209, 5.30mm Width)

Datasheet:: NE555PSRG4.pdf

Description:: IC OSC SINGLE TIMER 100KHZ 8SO

In Stock:: 2105

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE555PSRG4 Specifications

Package/Case:
8-SOIC (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
100kHz
Voltage-Supply:
4.5V ~ 16V
Current-Supply:
10 mA
OperatingTemperature:
0°C ~ 70°C

NE555PSRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE555PSRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE555PSRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE555PSRG4 information

Views：

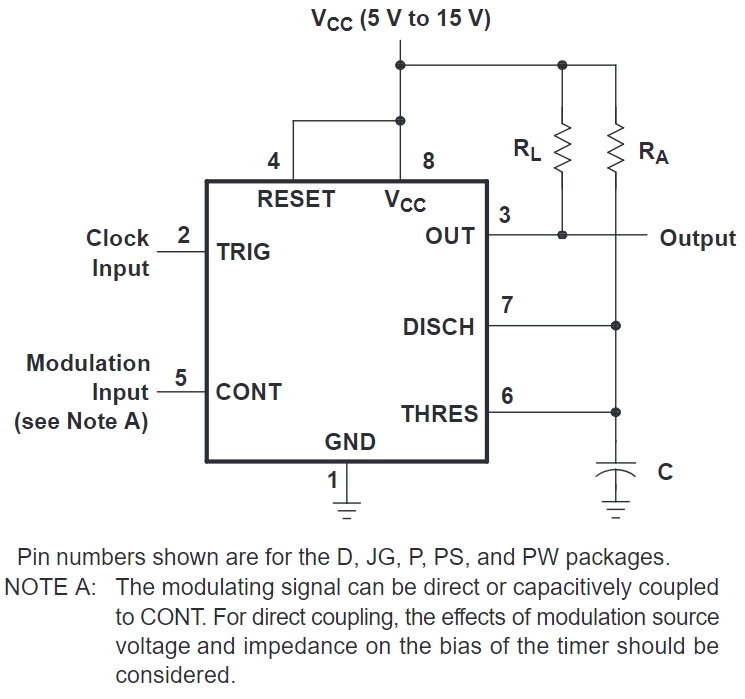

NE555PSRG4 Typical application Circuitry

NE555PSRG4

The NE555PSRG4 seems to be a variant of the NE555, a renowned integrated circuit. Serving primarily as a timer, it is versatile for applications including timing, pulse generation, and oscillation.

Typical characteristics of the NE555 family may involve:

1. Operational Voltage Range: Usually functional between 4.5V and 15V.

2. Output Current: Capable of sourcing or sinking around 200 mA.

3. Adjustable Timing: Usable for durations ranging from microseconds to hours.

4. Stability Over Temperature: Reliable performance under varying temperature conditions.

For a practical demonstration, consider the NE555PSRG4 in a Monostable Circuit to generate a single pulse of defined duration.

Detailed Circuit Connections:

- Pin 1 (Ground): Connect this directly to the system's ground.

- Pin 2 (Trigger): This pin starts the timing cycle when it falls below 1/3 Vcc. It's linked to a push-button switch to the ground.

- Pin 3 (Output): This pin delivers the pulse output. When triggered, it goes high.

- Pin 4 (Reset): To avoid unintentional resets, connect it to Vcc.

- Pin 5 (Control Voltage): Normally open or attached to a small capacitor (e.g., 0.01µF) for noise suppression.

- Pin 6 (Threshold): It's connected to Pin 2 and to one side of capacitor C1.

- Pin 7 (Discharge): This pin discharges C1 through resistor R1.

- Pin 8 (Vcc): Supply positive voltage to this pin.

Key Timing Components:

- R1 (Timing Resistor): Determines the charge rate of C1 alongside the output pulse duration.

- C1 (Timing Capacitor): Charges through R1 until it reaches 2/3 Vcc, defining the pulse width.

Pulse Width Calculation:

The duration (T) of the output pulse can be calculated with T = 1.1 * R1 * C1.

Circuit Design Considerations:

1. Supply Voltage: Ensure it matches the NE555PSRG4's operational range.

2. Component Accuracy: Select precise resistors and capacitors for reliable timing.

3. Loading Effects: Ascertain that the load connected to the output is within the IC's driving capacity.

4. Noise Interference: Implement strategies such as a decoupling capacitor near Pin 8 to mitigate noise.

5. Heat Dissipation: Depending on the circuit, assess if the IC needs additional cooling.

In a monostable configuration, the NE555PSRG4 efficiently creates a one-shot pulse, useful in various scenarios such as timers in consumer appliances, delay circuits in digital systems, and as a trigger for interrupt mechanisms in microcontrollers.
