Texas Instruments NE555PSR

Part No.:: NE555PSR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.209, 5.30mm Width)

Datasheet:: NE555PSR.pdf

Description:: IC OSC SINGLE TIMER 100KHZ 8SO

In Stock:: 3722

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE555PSR Specifications

Package/Case:
8-SOIC (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
100kHz
Voltage-Supply:
4.5V ~ 16V
Current-Supply:
10 mA
OperatingTemperature:
0°C ~ 70°C

NE555PSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE555PSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE555PSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE555PSR information

Views：

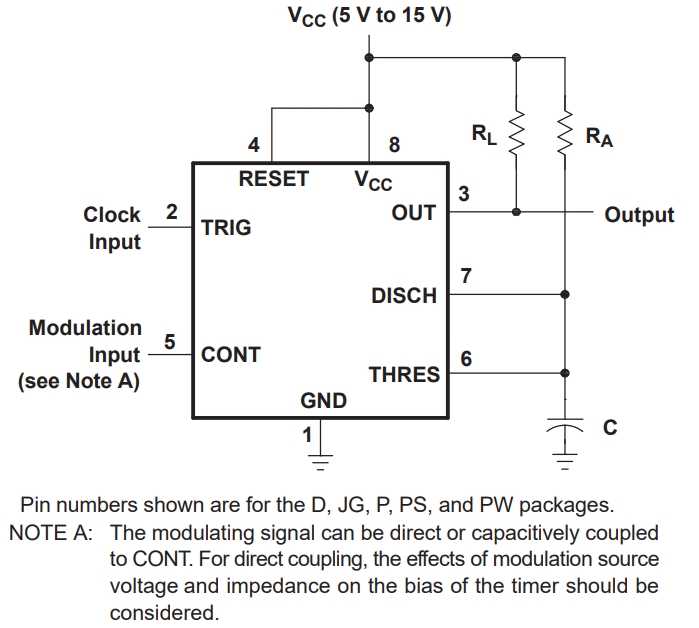

NE555PSR Typical application Circuitry

NE555PSR

The NE555PSR is a variant of the venerable NE555 timer IC, a device renowned for its versatility in creating timing circuits and pulse generation. It's utilized in an array of applications such as delay timers, pulse generators, oscillators, and PWM (Pulse Width Modulation) controllers, making it a staple in both hobbyist and professional electronics projects.

Characteristic parameters of the NE555 family generally include:

- Voltage Range: Operates optimally between 4.5V and 15V.

- Output Drive Capability: Up to 200 mA can be sinking or source.

- Timing Duration: Capable of generating time delays ranging from microseconds to hours.

- Temperature Resilience: Maintains consistent performance across a spectrum of temperatures.

For demonstration, let's design a Simple Oscillator Circuit using the NE555PSR.

Detailed Circuit Configuration:

- Pin 1 (Ground): Connect this pin directly to the ground.

- Pin 2 (Trigger): Connected to the point where capacitor C1 and resistor R1 meet.

- Pin 3 (Output): This pin provides the oscillating signal.

- Pin 4 (Reset): To turn off the reset feature, connect this pin to Vcc.

- Pin 5 (Control Voltage): Typically left open or connected to a noise suppression capacitor.

- Pin 6 (Threshold): Tied to the junction between R1 and C1, mirroring the Trigger connection.

- Pin 7 (Discharge): Connected to the other side of R1, facilitating the discharge of C1.

- Pin 8 (Vcc): Connect this pin to the positive terminal of your power supply.

Timing Component Selection:

- R1 (Resistor): Influences the charge and discharge rate of C1, impacting the oscillation frequency.

- C1 (Capacitor): Charges and discharges through R1, setting the time constant for the oscillator.

Oscillation Frequency Calculation:

The oscillation frequency (f) can be determined using f ≈ 1.44 / ((2*R1)*C1), offering a straightforward method to set the desired frequency.

Circuit Design Considerations:

1. Voltage Compliance: Make sure the power supply is within the NE555PSR's operating range.

2. Thermal Management: If a high current is expected through the output, consider a heatsink.

3. Supply Stability: Place a decoupling capacitor near the Vcc and GND pins to ensure a stable power supply.

4. Frequency Accuracy: Select R1 and C1 with precision for the required oscillation frequency.

5. Load Requirements: Ascertain that the output signal matches the load's specifications.

In applications where generating a stable square wave is imperative, such as in clock pulses for digital circuits or driving stepper motors, the NE555PSR can be configured effectively as an oscillator. The frequency of oscillation can be fine-tuned by selecting appropriate values for R1 and C1, allowing the circuit to meet the specific needs of the application at hand.
