Texas Instruments NE555DE4

Part No.:: NE555DE4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: NE555DE4.pdf

Description:: IC OSC SGL TIMER 100KHZ 8-SOIC

In Stock:: 2977

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NE555DE4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
Type:
555 Type, Timer/Oscillator (Single)
Count:
-
Frequency:
100kHz
Voltage-Supply:
4.5V ~ 16V
Current-Supply:
10 mA
OperatingTemperature:
0°C ~ 70°C

NE555DE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NE555DE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NE555DE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NE555DE4 information

Views：

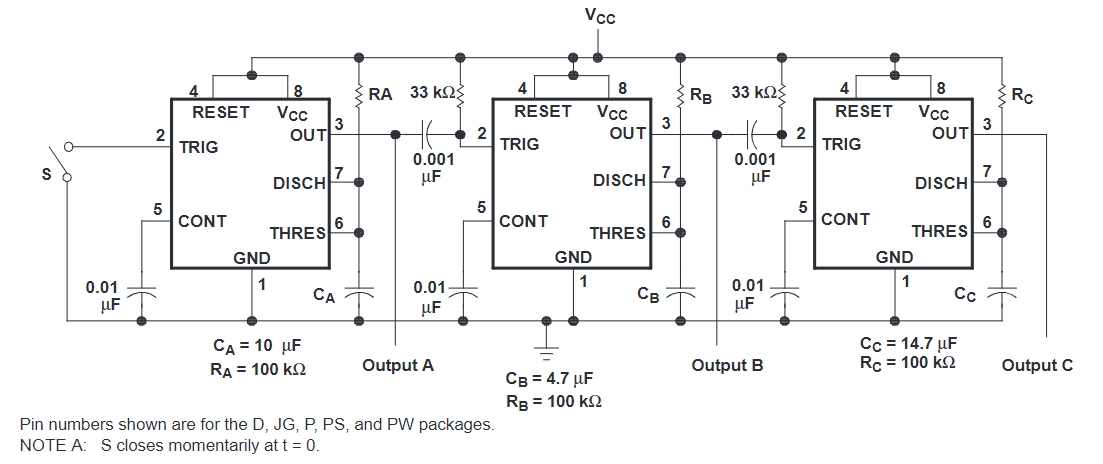

NE555DE4 Typical application Circuitry

NE555DE4

NE555DE4 is a variant of the famous NE555 timer IC, a multi-faceted semiconductor prized for its versatility in generating precise timing, oscillation, and pulse generation in a variety of electronic applications. This IC is commonly used in more complex systems such as delay timers, pulse generators, oscillator structures, and PWM (Pulse Width Modulation) control.

Standard features of the NE555 family typically encompass:

1. Operational Voltage Span: Commonly spans from 4.5V to 15V.

2. Output drive capability: up to 200 mA of sourcing or sinking is possible.

3. Timing Range Flexibility: Able to construct durations from hours to microseconds.

4. Stability Across Temperatures: Consistently operational across various temperature ranges.

To illustrate its utility, let's design a Monostable Multivibrator Circuit, also known as a one-shot timer, utilizing the NE555DE4.

Detailed Circuit Blueprint:

- Pin 1 (Ground): This pin establishes a connection with the circuit's ground.

- Pin 2 (Trigger): This pin is tied to the control switch and also to one terminal of a timing capacitor C1.

- Pin 3 (Output): This pin receives the monostable multivibrator's output pulse.

- Pin 4 (Reset): This pin is commonly connected to Vcc to avoid unintentional resets.

- Pin 5 (Control Voltage): Often left open or connected to a small capacitor (around 0.01µF) to filter out noise.

- Pin 6 (Threshold): Connected to one terminal of capacitor C1.

- Pin 7 (Discharge): This pin is linked to the point where capacitor C1 and resistor R1 meet.

- Pin 8 (Vcc): The positive supply voltage is connected to this pin.

Critical Timing Components:

- R1 (Timing Resistor): Determines the pulse width of the output signal.

- C1 (Timing Capacitor): Works in tandem with R1 to set the pulse duration.

Output Pulse Duration:

The pulse duration (T) can be calculated using the formula T = 1.1 * R1 * C1.

Points to Ponder During Circuit Design:

1. Compatibility with Voltage Range: It's vital to ensure that the supply voltage is compatible with the NE555DE4's operating range.

2. Noise Suppression: A decoupling capacitor near the Vcc pin is recommended for noise reduction.

3. Precision in Components: The selection of high-grade resistors and capacitors is crucial for accurate timing.

4. Output Characteristics: The output should be suitable for the connected load.

5. Heat Dissipation: Consider whether additional measures for heat dissipation are necessary if the IC is expected to handle significant currents.

In the monostable mode, the NE555DE4 serves as a reliable pulse generator. This application is particularly useful for tasks requiring precise timing, such as time-delayed relay activation or as a trigger pulse for other digital circuits.
