What is the Additional Feature ?

Name: NCP114ASN250T1G
Brand: onsemi
SKU: NCP114ASN250T1G
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

onsemi NCP114ASN250T1G

Part No.:: NCP114ASN250T1G

Manufacturer:: onsemi

Package:: SOT-23-5 Thin, TSOT-23-5

Datasheet:: NCP114ASN250T1G.pdf

Description:: IC REG LINEAR 2.5V 300MA 5TSOP

In Stock:: 8955

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NCP114ASN250T1G Specifications

Package/Case:
SOT-23-5 Thin, TSOT-23-5
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
OutputConfiguration:
Positive
OutputType:
Fixed
NumberofRegulators:
1
Voltage-Input(Max):
5.5V
Voltage-Output(Min/Fixed):
2.5V
Voltage-Output(Max):
-
VoltageDropout(Max):
-
Current-Output:
300mA
Current-Quiescent(Iq):
95 µA
Current-Supply(Max):
-
PSRR:
75dB (1kHz)
ControlFeatures:
Enable
ProtectionFeatures:
Over Current, Over Temperature
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

NCP114ASN250T1G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NCP114ASN250T1G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NCP114ASN250T1G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NCP114ASN250T1G information

Views：

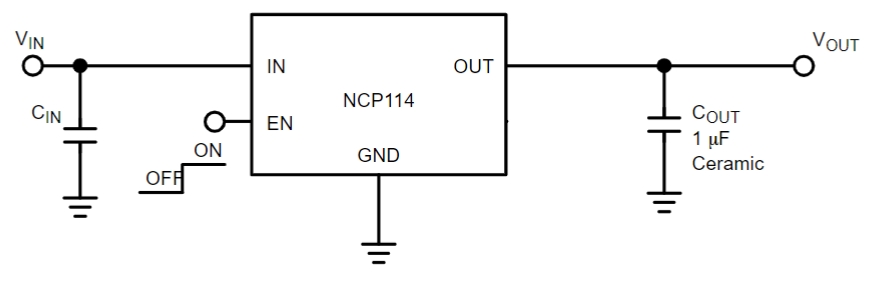

NCP114ASN250T1G Typical application Circuitry

NCP114ASN250T1G

NCP114ASN250T1G is a low dropout voltage regulator (LDO) from ON Semiconductor, designed to provide clean and stable power in applications requiring up to 300 mA of output current. It's characterized by a low dropout voltage, high PSRR (Power Supply Rejection Ratio), and low quiescent current, making it ideal for battery-operated devices, portable electronics, and systems sensitive to power supply noise, such as RF circuits and sensitive analog devices.

Application Scenario: Power Supply for RF Modules

A common application for the NCP114ASN250T1G is in the power supply design for RF modules in wireless communication devices, where clean and stable power is crucial for maintaining signal integrity and overall device performance.

Parameter Features

- Fixed Output Voltage: 2.5V, suitable for powering a wide range of RF modules and other low-voltage devices.

- Low Dropout Voltage: This prolongs battery life in portable applications by ensuring effective functioning even when the input and output voltages are almost equal.

- High PSRR: Minimizes the impact of supply voltage fluctuations on the output voltage, crucial for maintaining stable operation in RF applications.

- Low Quiescent Current: Reduces power consumption in standby mode, preserving battery life in portable devices.

Detailed Circuit Connection for RF Module Power Supply

1.Input Voltage Supply

Connect the input voltage source, which could be a battery or another regulated power supply, to the VIN pin (Pin 3) of the NCP114ASN250T1G.Make that there is enough overhead for the dropout voltage and that the input voltage falls within the required range.

2.Stable Output Voltage Delivery

Route the VOUT pin (Pin 1) directly to the power input of the RF module. The fixed 2.5V output of the NCP114ASN250T1G provides a clean and stable power source, essential for sensitive RF circuits.

3.Ground Linkage

Attach Pin 2 (GND pin) to the system ground. A solid ground connection is vital for maintaining the stability of the output voltage and the overall performance of the LDO and the RF module.

4.Decoupling Capacitors

Place a ceramic capacitor (typically in the range of 1µF to 10µF) close to the VIN and VOUT pins of the NCP114ASN250T1G. These capacitors filter out input noise and stabilize the output voltage, ensuring smooth operation of the RF module.

Design Considerations

When integrating the NCP114ASN250T1G into a power supply circuit for RF modules, several important aspects must be considered:

- Input Voltage Range: Confirm that the input voltage to the NCP114ASN250T1G is consistently within the specified range, taking into account the voltage drop across the LDO under maximum load conditions.

- Output Voltage Stability: Ensure the use of recommended decoupling capacitors at the input and output to maintain output voltage stability, especially important in RF applications where power supply noise can significantly impact performance.

- Thermal Management: Evaluate the thermal load of the NCP114ASN250T1G based on the input voltage, output current, and ambient temperature to ensure it operates within safe temperature limits, potentially adding heat dissipation measures if necessary.

- PCB Layout: Pay careful attention to the PCB layout, minimizing the loop areas associated with the input, ground, and output connections to reduce susceptibility to EMI and to ensure stable LDO operation.

By carefully implementing the NCP114ASN250T1G in the power supply design for RF modules, designers can achieve a high-performance, efficient, and reliable power solution that enhances the functionality and reliability of wireless communication devices.
