Name: NC7SZ32M5X
Brand: onsemi
SKU: NC7SZ32M5X
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

onsemi NC7SZ32M5X

Part No.:: NC7SZ32M5X

Manufacturer:: onsemi

Package:: SOT-23-5

Datasheet:: NC7SZ32M5X.pdf

Description:: IC GATE OR 1CH 2-INP SOT23-5

In Stock:: 2260

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NC7SZ32M5X Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
7SZ
ProductStatus:
Obsolete
LogicType:
OR Gate
NumberofCircuits:
1
NumberofInputs:
2
Features:
-
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
-
LogicLevel-High:
-
MaxPropagationDelay@VMaxCL:
4.5ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

NC7SZ32M5X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NC7SZ32M5X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NC7SZ32M5X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NC7SZ32M5X information

Views：

NC7SZ32M5X Typical application Circuitry

NC7SZ32M5X

NC7SZ32M5X is a high-performance, two-input OR gate from ON Semiconductor, part of the TinyLogic® series. It's designed for use in a wide range of applications requiring logical OR operations, including signal gating, input/output buffering, and logic function generation. This device is characterized by its ultra-small footprint, low power consumption, and compatibility with high-speed interfaces.

Application Scenario: Signal Gating in Digital Circuits

A common application for the NC7SZ32M5X is in digital circuits where signal gating is required, such as in microcontroller interfaces, data communication systems, and portable electronics, where space and power efficiency are crucial.

Parameter Features

- Two-Input OR Gate: Provides the logical OR function, outputting a high level when either or both inputs are high.

- Ultra-Small Package: Available in an SOT-23-5 package, ideal for space-constrained applications.

- Low Power Consumption: Fits devices that run on batteries when power economy is essential.

- Broad Operating Voltage Range: Compatible with various logic levels, supporting 1.65V to 5.5V operations.

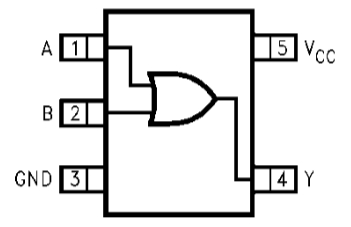

Detailed Circuit Connection for Signal Gating

1.Power Supply Connection

Connect the VCC pin (Pin 5) to a suitable power supply within the 1.65V to 5.5V range. This supply should be stable and well-regulated to ensure reliable gate operation.

2.Input Signal Connection

Connect the two input signals that need to be ORed to the A (Pin 1) and B (Pin 2) pins of the NC7SZ32M5X. These inputs could be from sensors, switches, or other digital outputs in the system.

3.Output Signal Routing

Route the Y pin (Pin 4), the output of the OR gate, to the next stage in the circuit, which could be an input to a microcontroller, another logic gate, or a driving LED indicator, depending on the application requirements.

4. Ground Linkage

Attach Pin 3, or GND, to the system ground. A low-impedance and clean ground connection is essential for minimizing noise and ensuring accurate logic level detection at the inputs.

Design Considerations

When incorporating the NC7SZ32M5X into a signal gating circuit, consider the following key aspects:

- Input Signal Levels: Ensure that the input signals are within the operating voltage range of the NC7SZ32M5X and are clean from any significant noise that could cause false triggering.

- Power Supply Decoupling: To ensure steady OR gate performance, place a decoupling capacitor in close proximity to the VCC pin to filter out any supply noise.

- Output Load: Consider the load connected to the output pin and ensure it's within the drive capability of the NC7SZ32M5X to prevent any distortion or degradation of the output signal.

- Signal Integrity: Pay attention to the PCB layout, especially if the NC7SZ32M5X is part of a high-speed signal path. Minimize the length of the traces and avoid any unnecessary vias to preserve signal integrity.

By carefully implementing the NC7SZ32M5X in digital circuits requiring signal gating, designers can achieve efficient, reliable, and compact solutions that enhance the functionality and performance of various electronic systems.
