Fairchild Semiconductor NC7SZ175P6X-F080

Part No.:: NC7SZ175P6X-F080

Manufacturer:: Fairchild Semiconductor

Package:: SC-88 (SC-70-6)

Datasheet:

Description:: IC FF D-TYPE SNGL 1BIT SC88

In Stock:: 2147

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NC7SZ175P6X-F080 Specifications

Packaging:
Bulk
Series:
7SZ
ProductStatus:
Active
Function:
Reset
Type:
D-Type
OutputType:
Non-Inverted
NumberofElements:
1
NumberofBitsperElement:
1
ClockFrequency:
175 MHz
MaxPropagationDelay@VMaxCL:
4ns @ 5V, 50pF
TriggerType:
Positive Edge
Current-OutputHighLow:
32mA, 32mA
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Iq):
1 µA
InputCapacitance:
3 pF
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

NC7SZ175P6X-F080 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NC7SZ175P6X-F080 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NC7SZ175P6X-F080 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NC7SZ175P6X-F080 information

Views：

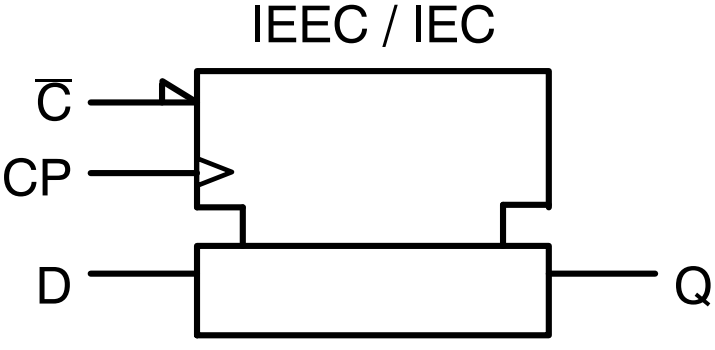

NC7SZ175P6X-F080 Typical application Circuitry

NC7SZ175P6X-F080

The NC7SZ175P6X-F080, a distinguished member of the TinyLogic® family, epitomizes the fusion of rapid operational capabilities with minimal power consumption, all within an impressively compact package. This device is ingeniously designed as a single D-type flip-flop incorporating a clear function, tailored to meet the rigorous requirements of digital systems where efficiency in both space and energy is paramount. Its versatility in various digital functions, including data storage, transfer, and synchronization, positions it as an indispensable element in electronic circuit design.

1. Pin Configuration Details: Housed in an SC-70 package, the NC7SZ175P6X-F080 features a 6-pin configuration, with each pin serving a specific and critical role. The configuration includes the D pin for data input, the CLK pin for clock input, and the CLR pin for clear input, alongside the Q output and its complement, the Q̅ output. Additionally, it incorporates the VCC pin for supply voltage and the GND pin for grounding, ensuring the device's operational integrity.

2. D Pin Functionality: At the heart of the NC7SZ175P6X-F080's functionality, the D pin stands as the gateway for data. The state of the logic at this pin is captured and mirrored at the Q output upon a rising edge at the CLK pin, highlighting the D pin's pivotal role in determining the state of the flip-flop.

3. Importance of CLK Pin: The CLK pin is crucial for timing within the NC7SZ175P6X-F080, with its rising edge triggering the flip-flop to latch the data presented at the D pin. This synchronization with the system's clock underlines the CLK pin's importance in ensuring timely data transitions.

4. CLR Pin Utility: The CLR pin offers the capability to swiftly reset the Q output to a low state, activated by applying a low logic level to this pin. This function is vital for the rapid resetting or initialization of circuits, emphasizing the CLR pin's significance in digital logic frameworks.

5. Outputs Q and Q̅: The NC7SZ175P6X-F080 is outfitted with dual outputs, Q and Q̅, where Q reflects the flip-flop's state and Q̅ provides the inverse. These outputs play a vital role in driving the logic of subsequent circuit stages.

6. Power Connections VCC and GND: The VCC pin, typically connected to a 5V power source, and the GND pin, which serves as the ground, are fundamental to the NC7SZ175P6X-F080's operation. The device's stable performance hinges on these power connections.

7. Integration into Circuits: Embedding the NC7SZ175P6X-F080 into digital systems requires a nuanced understanding of the CLK's timing dynamics and the CLR input's condition. The deployment of decoupling capacitors near the VCC pin is advisable to mitigate voltage transients and ensure a stable power supply.

8. Operational Best Practices: To guarantee the NC7SZ175P6X-F080's dependable operation, it is imperative that input voltages and timing are maintained within the device's specified limits. Moreover, meticulous circuit layout planning is essential to reduce noise and preserve signal integrity, thus optimizing the device's efficacy.

In essence, the NC7SZ175P6X-F080 is an exemplary selection for digital logic applications where space constraints do not allow for a compromise in functional efficiency. An in-depth comprehension of its pin functionalities and operational nuances is crucial to fully leverage its potential in electronic designs, with particular attention to its power supply voltage and its integral role within the TinyLogic® series.
