ON Semiconductor NC7SZ14M5X

Part No.:: NC7SZ14M5X

Manufacturer:: ON Semiconductor

Package:: SOT-23-5

Datasheet:: NC7SZ14M5X.pdf

Description:: IC INVERTER 1CH 1-INP SOT23-5

In Stock:: 3757

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

NC7SZ14M5X Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
7SZ
ProductStatus:
Obsolete
LogicType:
Inverter
NumberofCircuits:
1
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
1.65V ~ 5.5V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
32mA, 32mA
LogicLevel-Low:
0.2V ~ 1.2V
LogicLevel-High:
1.4V ~ 3.6V
MaxPropagationDelay@VMaxCL:
5.9ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

NC7SZ14M5X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including NC7SZ14M5X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for NC7SZ14M5X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

NC7SZ14M5X information

Views：

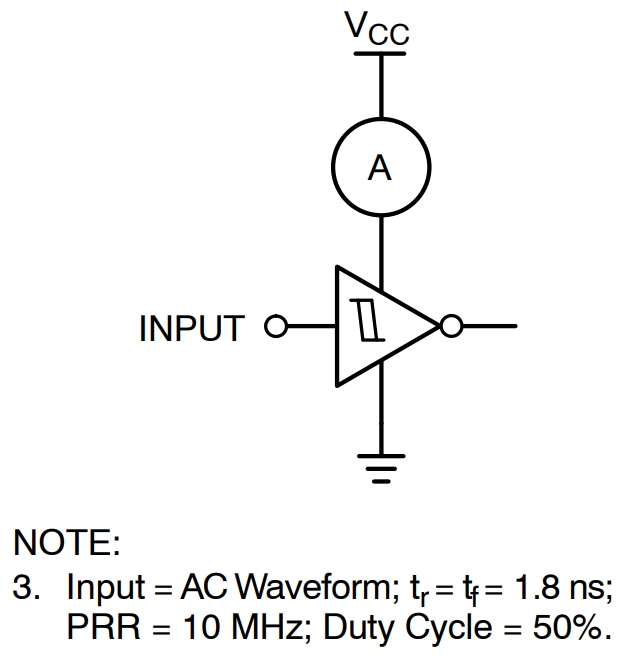

NC7SZ14M5X Typical application Circuitry

NC7SZ14M5X

In the vast constellation of semiconductor devices, the NC7SZ14M5X shines brightly with its specialized characteristics and applications.

Functionality Overview:

NC7SZ14M5X is a single Schmitt Trigger Inverter. Imagine it as a sentinel that not only transforms a signal but also refines it, ensuring it's crisp and well-defined.

Prime Use Cases:

- Signal conditioning.

- Square wave generation.

- Noise reduction in digital circuits.

Key Features:

- Single Input, Single Output: It's focused on performing its inversion duty with precision.

- Hysteresis Loop: Enhances signal clarity in noisy environments.

- Ultra Compact: Suited for tight-footprint scenarios.

Zooming into a signal conditioning application:

1. Empowerment:

- Task: Link the NC7SZ14M5X VCC to the power supply while securing GND to the system's ground.

- Why: To awaken the NC7SZ14M5X and usher in its transformative capabilities.

2. Signal Feeding:

- Task: Introduce your digital input, possibly with noise, to the 'A' input pin.

- Why: It's the canvas upon which NC7SZ14M5X will paint its refined output.

3. Reaping the Fruits:

- Task: From the 'Y' output pin, obtain the sculpted, inverted signal.

- Why: Based on the input, NC7SZ14M5X provides a sharpened inverted version, enhancing its utility.

4. Hysteresis Magic:

- Task: No direct action required.

- Why: The in-built hysteresis capability ensures noise is negated, offering clearer signals at the output.

Circuit Designing Insights:

- Voltage Concerns: Assure that the NC7SZ14M5X operates within its prescribed voltage parameters to avoid hiccups.

- Decoupling: Including decoupling capacitors near the VCC can aid in stabilizing the chip during rapid transitions.

- Environment Sensitivity: An environment free from extraneous electromagnetic interference ensures NC7SZ14M5X's peak performance.

With the NC7SZ14M5X, your circuits gain an edge in clarity and functionality. The chip is more than just a component; it's a digital sculptor, shaping signals into their best selves.
