Macronix MX66L1G45GMI-08G

Part No.:: MX66L1G45GMI-08G

Manufacturer:: Macronix

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: MX66L1G45GMI-08G.pdf

Description:: IC FLASH 1GBIT SPI/QUAD 16SOP

In Stock:: 3472

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MX66L1G45GMI-08G Specifications

Package/Case:
16-SOIC (0.295, 7.50mm Width)
Packaging:
Tube
Series:
MXSMIO™
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH - NOR
MemorySize:
1Gb (128M x 8)
MemoryInterface:
SPI - Quad I/O, DTR
ClockFrequency:
166 MHz
WriteCycleTime-WordPage:
60µs, 3ms
AccessTime:
-
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

MX66L1G45GMI-08G this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MX66L1G45GMI-08G price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MX66L1G45GMI-08G to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MX66L1G45GMI-08G information

Views：

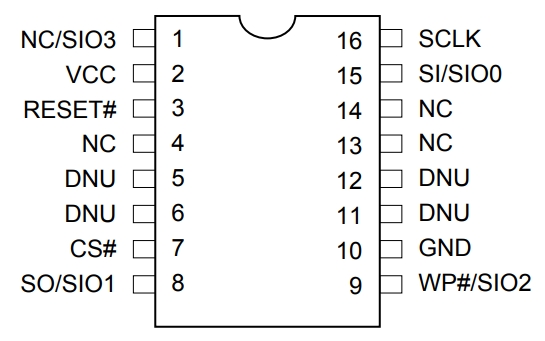

MX66L1G45GMI-08G Typical application Circuitry

MX66L1G45GMI-08G

The MX66L1G45GMI-08G is a 1G-bit Serial NOR Flash memory with a uniform 4KB sector architecture, supporting the standard Serial Peripheral Interface (SPI) and Dual/Quad SPI for high-speed data transfer.

Application Scenario: Data Logging System for Renewable Energy Solutions

In renewable energy systems, such as solar panels or wind turbines, the MX66L1G45GMI-08G can be utilized for data logging purposes. These systems require reliable, long-term data storage for parameters like energy production, environmental conditions, and system performance metrics. The data logged is crucial for monitoring the efficiency, planning maintenance, and optimizing the power generation of these renewable energy systems.

Circuit Connection Details

- Power Supply Connection: Connect the VCC pin of the MX66L1G45GMI-08G to a 3.3V source to ensure it operates within the specified voltage range. The VSS pin must be grounded to establish a common reference point for the power supply and signals.

- SPI Interface Connection: For basic operation using the Serial Peripheral Interface, connect the Serial Clock (SCLK), Chip Select (CS), Serial Data Input (SI), and Serial Data Output (SO) pins to the corresponding SPI interface pins on the microcontroller managing the data logging. To leverage the high-speed capabilities of Dual/Quad SPI modes, additional connections are needed for the DIO (Dual I/O) and DQO (Quad I/O) pins.

- Hold and Write Protect: The HOLD (or IO3) and WP (or IO2) pins are used in Quad SPI mode for additional data lines but can also serve their named functions. When not used for Quad SPI, connect HOLD to VCC through a pull-up resistor to prevent unintended pausing of serial communication, and WP can similarly be connected to VCC to disable write protection, or to a GPIO pin for dynamic write protection control.

- Decoupling Capacitor: Place a 0.1 µF ceramic capacitor close to the VCC and VSS pins to stabilize the power supply to the MX66L1G45GMI-08G, filtering high-frequency noise that could interfere with data integrity.

- Clock Speed Configuration: Ensure the SCLK is configured not to exceed the maximum supported frequency of the MX66L1G45GMI-08G to maintain reliable data transfers, especially important in high-speed Dual/Quad SPI modes.

Design Considerations

- Power Stability: Ensure the power supply to the MX66L1G45GMI-08G is stable and clean, with minimal noise, to prevent data corruption.

- Signal Integrity: Especially in high-speed Dual/Quad SPI configurations, maintain signal integrity by minimizing trace lengths and avoiding cross-talk with other signals on the PCB.

- Data Integrity: Implement error-checking mechanisms in the firmware, such as CRC checks, to verify the integrity of data read from or written to the MX66L1G45GMI-08G, crucial for applications where data accuracy is paramount.

- Environmental Conditions: Given the outdoor application in renewable energy systems, consider the operating temperature range and potential exposure to moisture or contaminants when designing the enclosure and PCB layout.

- Firmware Update Mechanism: Design a secure and reliable method for updating the firmware that controls the MX66L1G45GMI-08G, ensuring new features or bug fixes can be safely applied without risking data loss.

By adhering to these guidelines and meticulously planning the circuit design around the MX66L1G45GMI-08G, it can be effectively deployed in renewable energy data logging systems, offering robust, high-speed storage solutions that enhance the monitoring and management of green energy sources.
