Texas Instruments MSP430FR5994IPN

Part No.:: MSP430FR5994IPN

Manufacturer:: Texas Instruments

Package:: 80-LQFP

Datasheet:: MSP430FR5994IPN.pdf

Description:: IC MCU 16BIT 256KB FRAM 80LQFP

In Stock:: 3558

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MSP430FR5994IPN Specifications

Package/Case:
80-LQFP
Packaging:
Tray
Series:
MSP430™ FRAM
RoHS:
RoHS
Speed:
16MHz
RAM Size:
8K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, POR, PWM, WDT
Connectivity:
I²C, IrDA, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
68
Core Processor:
CPUXV2
Data Converters:
A/D 20x12b
Oscillator Type:
External, Internal
Program Memory Size:
256KB (256K x 8)
Program Memory Type:
FRAM
Operating Temperature:
-40°C ~ 85°C (TA)

MSP430FR5994IPN this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MSP430FR5994IPN price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MSP430FR5994IPN to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MSP430FR5994IPN information

Views：

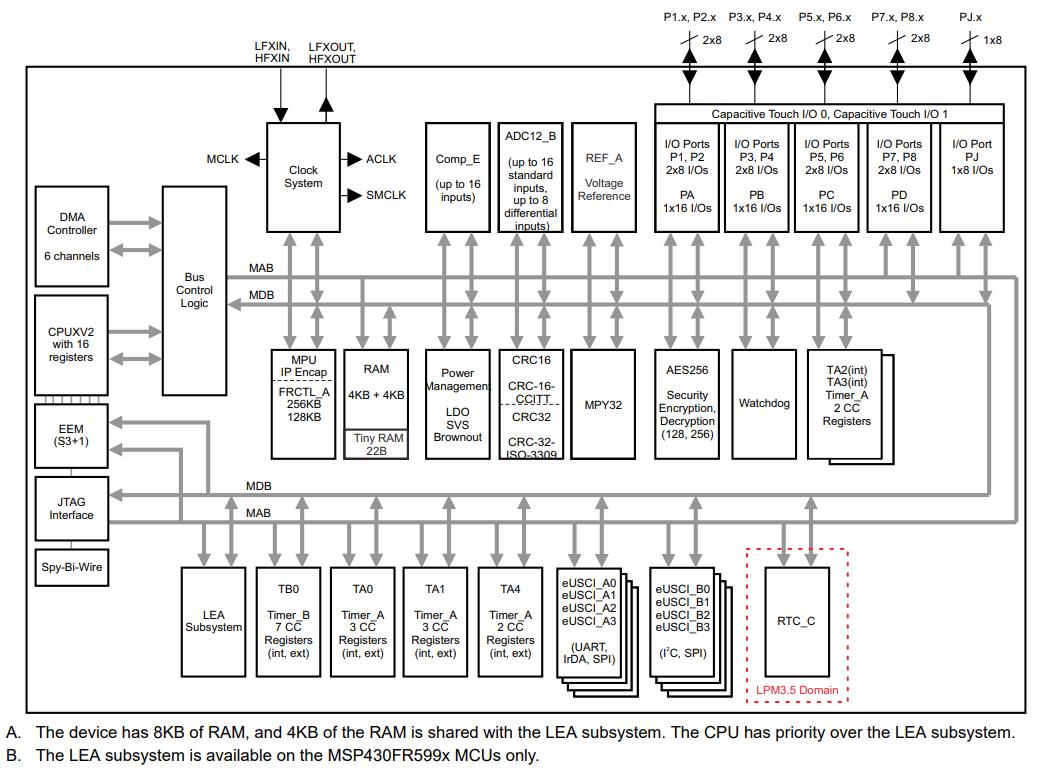

MSP430FR5994IPN Typical application Circuitry

MSP430FR5994IPN

The MSP430FR5994IPN is a part of the MSP430 family of 16-bit microcontrollers developed by Texas Instruments. Known for its robustness, low power consumption, and versatile features, the MSP430FR5994IPN is designed to cater to a broad array of applications.

Features of MSP430FR5994IPN:

- Core: 16-bit RISC CPU, up to 16 MHz.

- Memory: 256 KB FRAM, 8 KB SRAM.

- I/O: Enhanced GPIO with capacitive touch sensing.

- Timers: Multiple 16-bit timers.

- Analog Interfaces: 12-bit ADC with differential input capability, 12-bit DAC.

- Serial Interfaces: UART, SPI, I2C.

- Security: 32-bit hardware multiplier, CRC, encryption module.

- Package: 80-Pin LQFP.

Application Scenarios:

The MSP430FR5994IPN can be employed in industrial control, home automation, energy management, medical devices, and other applications that require real-time data processing and low energy consumption.

Example Circuit: Home Automation System:

We'll now design a home automation control system that utilizes the MSP430FR5994IPN to control lights, fans, and heating based on environmental parameters.

1. Power Supply:

- DVCC (pin 78): Connect to 3.3V power supply.

- DGND (pin 80): Connect to ground.

2. Light Sensor Interface (Analog):

- A12 (pin 2): Connect to a photoresistor to detect light levels.

3. Temperature Sensor Interface (Analog):

- A13 (pin 3): Connect to a temperature sensor like the LM35.

4. Relay Control (Digital):

- P3.0 (pin 42): Connect to a relay for light control.

- P3.1 (pin 43): Connect to a relay for fan control.

- P3.2 (pin 44): Connect to a relay for heating control.

5. WiFi Module Interface (UART):

- UCA1TXD (pin 31): Connect to TX of the Wi-Fi module (e.g., ESP8266).

- UCA1RXD (pin 32): Connect to RX of the Wi-Fi module.

6. Debugging and Programming Interface:

- TEST (pin 76): Debugger test line.

- RESET (pin 77): Debugger reset line.

7. User Interface (Buttons & LEDs):

- P2.0 (pin 36): Connect to a button for manual override.

- P2.1 (pin 37): Connect to an LED for status indication.

Design Considerations:

1. Energy Efficiency: The design should optimize power usage since the MSP430FR5994IPN is known for its low-power capabilities.

2. Communication Protocol: Integration with a WiFi module requires an appropriate serial communication setup compatible with MSP430FR5994IPN.

3. Sensing Calibration: The Calibration of light and temperature sensors is crucial for accurate environment monitoring.

4. Relay Selection: Proper selection and driving of relays that are compatible with MSP430FR5994IPN is GPIO.

5. User Interaction: Consideration for user interface design including manual control inputs.

6. Software Development: Developing an embedded software that caters to the functionality of the MSP430FR5994IPN and peripherals.

In summary, the MSP430FR5994IPN provides an excellent platform for a home automation system with its diverse features and low power consumption. By understanding its specific capabilities and considerations, designers can harness the full potential of MSP430FR5994IPN to create efficient and responsive control systems for everyday applications.
