Texas Instruments MSP430FR5729IDAR

Part No.:: MSP430FR5729IDAR

Manufacturer:: Texas Instruments

Package:: 38-TSSOP (0.240", 6.10mm Width)

Datasheet:: MSP430FR5729IDAR.pdf

Description:: IC MCU 16BIT 16KB FRAM 38TSSOP

In Stock:: 3824

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MSP430FR5729IDAR Specifications

Package/Case:
38-TSSOP (0.240", 6.10mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
MSP430™ FRAM
RoHS:
RoHS
Speed:
8MHz
RAM Size:
1K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, IrDA, LINbus, SCI, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
30
Core Processor:
CPUXV2
Data Converters:
A/D 14x10b
Oscillator Type:
Internal
Program Memory Size:
16KB (16K x 8)
Program Memory Type:
FRAM
Operating Temperature:
-40°C ~ 85°C (TA)

MSP430FR5729IDAR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MSP430FR5729IDAR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MSP430FR5729IDAR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MSP430FR5729IDAR information

Views：

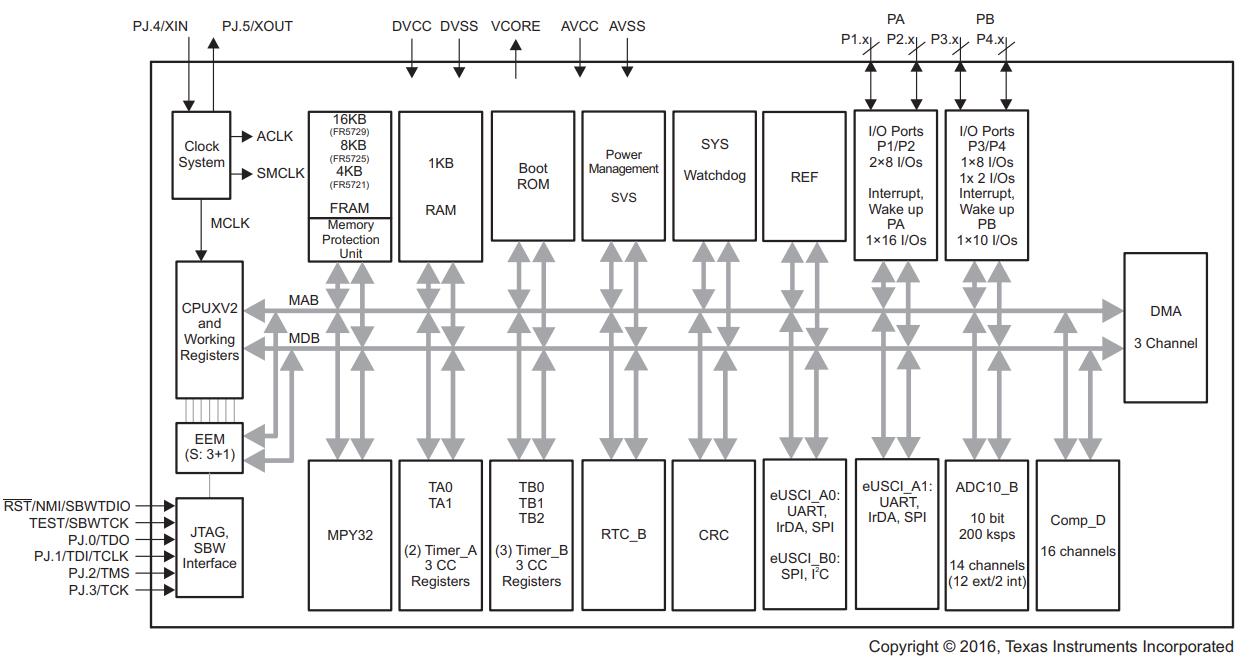

MSP430FR5729IDAR Typical application Circuitry
