ON Semiconductor MOCD217R1VM

Part No.:: MOCD217R1VM

Manufacturer:: ON Semiconductor

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MOCD217R1VM.pdf

Description:: OPTOISO 2.5KV 2CH TRANS 8SOIC

In Stock:: 2774

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOCD217R1VM Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
NumberofChannels:
2
Voltage-Isolation:
2500Vrms
CurrentTransferRatio(Min):
100% @ 1mA
CurrentTransferRatio(Max):
-
TurnOn/TurnOffTime(Typ):
7.5µs, 5.7µs
Rise/FallTime(Typ):
3.2µs, 4.7µs
InputType:
DC
OutputType:
Transistor
Voltage-Output(Max):
30V
Current-Output/Channel:
150mA
Voltage-Forward(Vf)(Typ):
1.05V
Current-DCForward(If)(Max):
60 mA
VceSaturation(Max):
400mV
OperatingTemperature:
-40°C ~ 100°C
MountingType:
Surface Mount

MOCD217R1VM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOCD217R1VM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOCD217R1VM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOCD217R1VM information

Views：

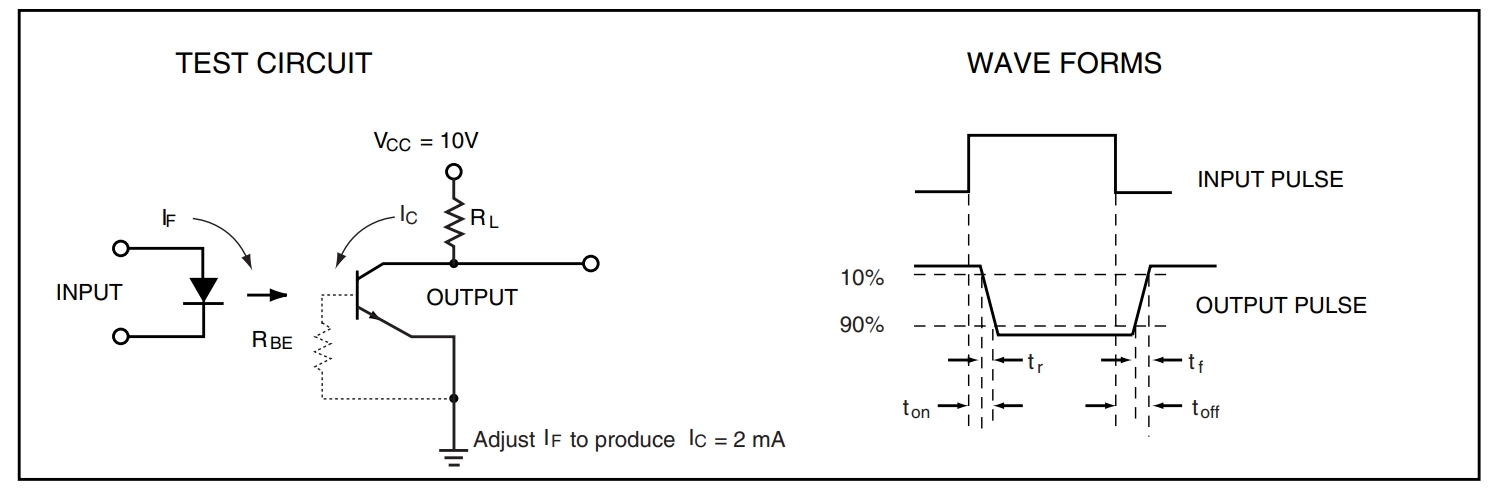

MOCD217R1VM Typical application Circuitry

MOCD217R1VM

The MOCD217R1VM is an optocoupler or optoisolator chip, designed to provide electrical isolation between its input and output. This part is widely used in electronic circuits when isolation from noisy or high-voltage surroundings and signal integrity are essential. The MOCD217R1VM typically consists of an infrared emitting diode and a phototransistor.

Key Characteristics of MOCD217R1VM:

1. Isolation Voltage: It offers a high degree of electrical isolation, crucial in protecting low-voltage circuits from high-voltage surges.

2. Current Transfer Ratio (CTR): The MOCD217R1VM has a specified CTR, indicating the efficiency of signal transmission from the LED to the phototransistor.

3. Input-Output Coupling: The chip ensures high-quality input-output coupling, which is vital for maintaining signal integrity.

4. Bandwidth: The bandwidth of the MOCD217R1VM is a key feature, determining how fast it can transfer signals without significant distortion.

An application scenario for the MOCD217R1VM could be in a digital communication system, where it's used to isolate a microcontroller from a noisy environment. In this setup, the MOCD217R1VM can protect the microcontroller from noise while transmitting digital signals.

A detailed circuit connection for this application would involve the following steps:

1. LED Forward Bias: The MOCD217R1VM's internal LED's anode (pin 1) is connected to the microcontroller's digital output, and its cathode (pin 2) is normally connected to ground via a current-limiting resistor. With this configuration, the LED will always turn on when the microcontroller generates a high signal.

2. Phototransistor for Signal Output: The collector of the phototransistor in the MOCD217R1VM (pin 4) is connected to the positive supply of the noisy environment, and the emitter (pin 3) is connected to the input of the noisy circuit. The phototransistor acts as a switch controlled by the LED's state.

3. Resistor Selection for LED: Choosing the correct resistor for the LED in the MOCD217R1VM is crucial to set the correct forward current, ensuring optimal performance and longevity of the LED.

4. Response Time Consideration: The response time of the MOCD217R1VM is important, especially in digital communication applications where fast signal transmission is needed.

5. Decoupling Capacitors: It is advisable to use decoupling capacitors near the power supply pins of the MOCD217R1VM to stabilize the power supply and filter out noise.

Design considerations for circuits using the MOCD217R1VM include:

- Maintaining Isolation: The primary purpose of the MOCD217R1VM is to provide electrical isolation. The circuit design should ensure this isolation is maintained effectively.

- Signal Integrity: The integrity of the signal passing through the MOCD217R1VM must be preserved to ensure accurate data transmission.

- Heat Dissipation: Considering the power dissipation and thermal aspects of the MOCD217R1VM is important for reliable operation.

- Operating Conditions: The ambient operating conditions should be within the specifications of the MOCD217R1VM to ensure its effective functioning.

In summary, the MOCD217R1VM serves as a vital component in circuits where electrical isolation is needed between a low-voltage control system and a potentially noisy or high-voltage environment. A well-thought-out design, considering the unique characteristics of the MOCD217R1VM, is essential for its successful application in any electronic system.
