onsemi MOC3052TVM_F132

Part No.:: MOC3052TVM_F132

Manufacturer:: onsemi

Package:: 6-DIP (0.400, 10.16mm)

Datasheet:

Description:: OPTOISOLATOR 4.17KV TRIAC 6DIP

In Stock:: 3426

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3052TVM_F132 Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
OutputType:
Triac
ZeroCrossingCircuit:
No
NumberofChannels:
1
Voltage-Isolation:
4170Vrms
Voltage-OffState:
600 V
StaticdV/dt(Min):
1kV/µs
Current-LEDTrigger(Ift)(Max):
10mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
220µA (Typ)
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.18V
Current-DCForward(If)(Max):
60 mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

MOC3052TVM_F132 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3052TVM_F132 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3052TVM_F132 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3052TVM_F132 information

Views：

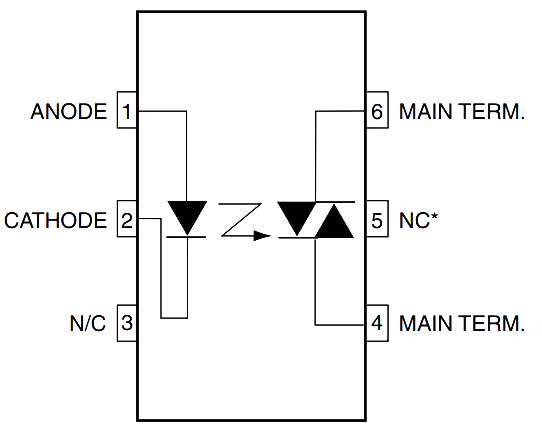

MOC3052TVM_F132 Typical application Circuitry

MOC3052TVM_F132

An optocoupler component called MOC3052TVM_F132 is frequently used for signal transmission and electrical separation. This type of optocoupler is particularly suited for controlling AC loads due to its ability to control current through optical signals, offering thousands of volts of isolation between input and output, thereby protecting low voltage control circuits from high voltage circuits.

Application Scenarios

The MOC3052TVM_F132 finds extensive use in various fields such as home appliance control, industrial automation, Solid State Relays (SSRs), dimmers, and motor control. It is especially prevalent in the design of solid-state relays, where its excellent electrical isolation capabilities and the ability to handle higher currents are highly valued.

Parameter Features

Key parameter features of the MOC3052TVM_F132 include input-output isolation voltage, driving current capability, switching speed, and operating temperature range. These parameters ensure the reliability and performance of the optocoupler in various electrical environments.

Considerations for Circuit Design

When designing circuits that incorporate the MOC3052TVM_F132, several key factors need to be considered:

- Electrical Isolation: Ensure adequate isolation voltage between input and output to protect users and sensitive electronic devices from high voltage circuits.

- Driving Capability: Given that the output of the MOC3052TVM_F132 is usually connected to a power transistor or Thyristor, it is crucial to ensure it has sufficient current to drive these loads.

- Operating Temperature: The design should ensure that the optocoupler operates reliably within the expected environmental temperatures.

- Switching Speed: Choose the appropriate switching speed based on application requirements to meet the demands for either fast or slow response.

Detailed Circuit Connection Example

Taking the control of an AC load as an example, we will detail how to design a simple Solid State Relay (SSR) circuit using the MOC3052TVM_F132:

- Input Connection: Connect the control signal to the input of the MOC3052TVM_F132, which are the two pins of the LED. Usually, an appropriate resistor is used to limit the current flowing through the LED in order to shield it from overcurrent damage.

- Output Connection: The output is connected to a Thyristor or transistor. The output of the MOC3052TVM_F132 activates this Thyristor through an optical signal, thus controlling the on/off state of the AC load.

- Load Connection: The AC load is connected to the output of the Thyristor. When the MOC3052TVM_F132 is activated, the Thyristor conducts, supplying power to the AC load.

- Isolation Consideration: Ensure good physical and electrical isolation between the input and output of the MOC3052TVM_F132 for safety.

In the design, the triggering current and voltage of the Thyristor, as well as the performance changes of the MOC3052TVM_F132 at different temperatures, should also be considered to ensure the circuit works reliably under all conditions.
