Name: MOC3052SM
Brand: onsemi
SKU: MOC3052SM
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

onsemi MOC3052SM

Part No.:: MOC3052SM

Manufacturer:: onsemi

Package:: 6-SMD, Gull Wing

Datasheet:: MOC3052SM.pdf

Description:: OPTOISOLATOR 4.17KV TRIAC 6SMD

In Stock:: 2826

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3052SM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3052SM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3052SM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

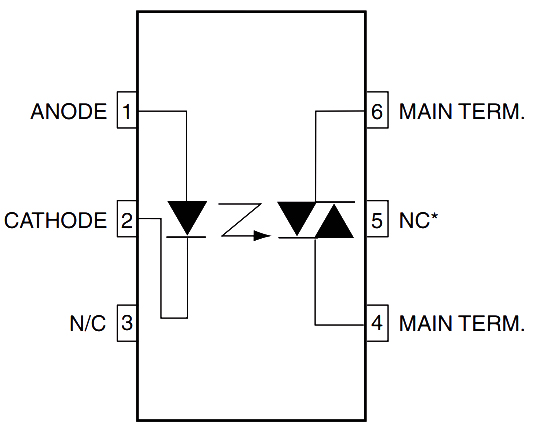

MOC3052SM Typical application Circuitry

MOC3052SM

The MOC3052SM is an optoisolator or optocoupler device that integrates a light-emitting diode (LED) and a photosensitive triac, designed to provide electrical isolation between its input and output circuits. This device enables low-voltage control circuits to safely control high-voltage AC loads, protecting sensitive electronics from high voltage transients.

Application Scenarios

The MOC3052SM is widely used in various applications such as solid-state relays (SSRs), motor control circuits, lighting dimmers, and industrial automation systems. Its primary function is to facilitate the safe interfacing between microcontrollers or digital logic circuits and power AC loads.

Parameter Features

Key features of the MOC3052SM include its high input-to-output isolation voltage, which ensures protection against high voltage spikes, its ability to directly drive an external triac for controlling larger AC loads, and its low LED trigger current, making it compatible with digital logic levels.

Design Considerations

When designing circuits that incorporate the MOC3052SM, it is crucial to consider:

- Isolation Capability: Ensuring that the MOC3052SM provides adequate electrical isolation to protect the control circuit from high voltage spikes.

- LED Drive Configuration: Properly designing the input circuit to drive the LED within the MOC3052SM, which often involves selecting the right series resistor to limit the LED current to a safe level.

- External Triac Selection: Choosing an external triac that matches the output characteristics of the MOC3052SM and can handle the intended load's current and voltage requirements.

- Heat Management: Planning for heat dissipation from the external triac to ensure reliable operation under all expected load conditions.

Solid-State Relay (SSR) Circuit Design Example

An example application for the MOC3052SM is in the design of a solid-state relay for controlling an AC load:

- Input Stage Setup: The control signal is applied to the anode and cathode of the internal LED in the MOC3052SM. A resistor should be connected in series with the anode to control the current flowing through the LED, ensuring it operates within the manufacturer's specified limits.

- Output Stage Activation: The illumination from the LED activates the internal phototriac, which then triggers an external power triac connected to the MOC3052SM's output pins. Proper identification of the output pins and accurate connection to the gate of the external triac are crucial.

- External Triac Connection: The AC load is connected in series with one of the main terminals of the external triac, with the other terminal connected to the AC supply line. The MOC3052SM controls the gate of the external triac, thus regulating the flow of power to the AC load.

- Zero Crossing Feature: If the MOC3052SM includes a zero-crossing circuit, it should be utilized to minimize electrical noise and wear on the external triac and the load by switching the AC load at the zero point of the AC cycle.

Designing this SSR circuit requires careful consideration of the load's specifications to ensure that the selected external triac is capable of handling the load's voltage and current requirements. Furthermore, selecting the appropriate value for the series resistor for the LED and any gate resistor for the triac is crucial for the reliable and safe operation of the SSR.
