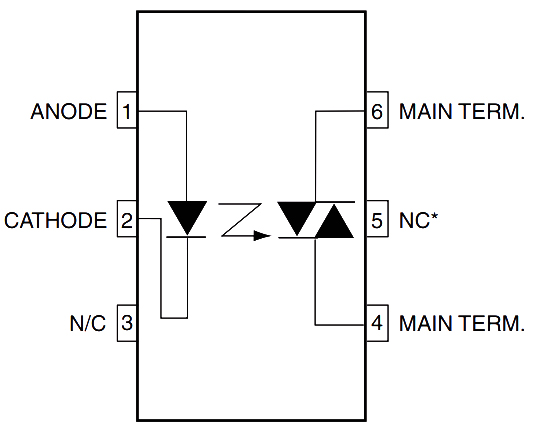

onsemi MOC3052FR2M

Part No.:: MOC3052FR2M

Manufacturer:: onsemi

Package:: 6-SMD, Gull Wing

Datasheet:: MOC3052FR2M.pdf

Description:: OPTOISOLATOR 7.5KV TRIAC 6SMD

In Stock:: 3554

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3052FR2M Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
OutputType:
Triac
ZeroCrossingCircuit:
No
NumberofChannels:
1
Voltage-Isolation:
7500Vpk
Voltage-OffState:
600 V
StaticdV/dt(Min):
1kV/µs
Current-LEDTrigger(Ift)(Max):
10mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
280µA (Typ)
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.15V
Current-DCForward(If)(Max):
60 mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MOC3052FR2M this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3052FR2M price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3052FR2M to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3052FR2M information

Views：

MOC3052FR2M Typical application Circuitry

MOC3052FR2M

The MOC3052FR2M is an optocoupler device, which incorporates a light-emitting diode (LED) and a photo-sensitive triac in a single package. It's designed primarily for electrically isolating the input signal from the output, allowing a low-voltage control circuit to safely control high-voltage AC loads.

Application Scenarios

The MOC3052FR2M is commonly used in applications such as solid-state relays (SSRs), motor controls, lighting dimmers, and various types of industrial automation systems. Its ability to provide electrical isolation while interfacing with high-voltage circuits makes it ideal for these applications.

Parameter Features

Key features of the MOC3052FR2M include its high input-to-output isolation voltage, which ensures protection against high voltage transients, and its capability to directly drive a triac, facilitating the control of AC loads. The device's low input LED current requirement allows it to be easily interfaced with digital logic circuits.

Design Considerations

When designing circuits that incorporate the MOC3052FR2M, several key factors must be considered:

- Isolation Capability: Ensuring that the MOC3052FR2M provides adequate isolation to protect the low-voltage control circuit from high-voltage spikes.

- LED Drive Configuration: Properly designing the input circuit to drive the LED within the MOC3052FR2M, which often involves selecting the right series resistor to limit the LED current to a safe level.

- External Triac Compatibility: Choosing an external triac that matches the output characteristics of the MOC3052FR2M and can handle the intended load current and voltage.

- Thermal Management: Considering the heat dissipation for the external triac to ensure reliable operation under the expected load conditions.

Solid-State Relay (SSR) Circuit Design Example

An example application for the MOC3052FR2M is in the design of a solid-state relay for controlling an AC load:

- Input Stage Configuration: The control signal is applied to the anode and cathode of the internal LED in the MOC3052FR2M. A resistor is connected in series with the anode to control the current flowing through the LED, ensuring it operates within the specified limits.

- Triggering the Output Stage: The light from the LED activates the phototriac, which, in turn, triggers an external power triac connected to the MOC3052FR2M's output pins. It is crucial to correctly identify the output pins and ensure they are properly connected to the gate of the external triac.

- Connecting the External Triac: The AC load is connected in series with one of the main terminals of the external triac, with the other terminal connected to the AC supply. The MOC3052FR2M controls the gate of the external triac, thereby controlling the power to the AC load.

- Utilizing Zero Crossing: If the MOC3052FR2M includes a zero-crossing feature, it should be used to minimize electrical noise and wear on the external triac and the load by switching the AC load at the zero point of the AC cycle.

When designing this SSR circuit, it is important to carefully consider the specifications of the load to ensure that the chosen external triac is capable of handling the load's voltage and current requirements. Furthermore, selecting the appropriate value for the series resistor for the LED and any gate resistor for the triac is crucial for the reliable and safe operation of the SSR.
