Name: MOC3041XSM
Brand: Isocom Components 2004 LTD
SKU: MOC3041XSM
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Isocom Components 2004 LTD MOC3041XSM

Part No.:: MOC3041XSM

Manufacturer:: Isocom Components 2004 LTD

Package:: 6-SMD, Gull Wing

Datasheet:: MOC3041XSM.pdf

Description:: OPTOISOLATOR 5.3KV TRIAC 6SMD

In Stock:: 3520

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3041XSM Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
OutputType:
Triac
ZeroCrossingCircuit:
Yes
NumberofChannels:
1
Voltage-Isolation:
5300Vrms
Voltage-OffState:
400 V
StaticdV/dt(Min):
600V/µs
Current-LEDTrigger(Ift)(Max):
15mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
400µA (Typ)
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.2V
Current-DCForward(If)(Max):
50 mA
OperatingTemperature:
-40°C ~ 100°C
MountingType:
Surface Mount

MOC3041XSM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3041XSM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3041XSM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3041XSM information

Views：

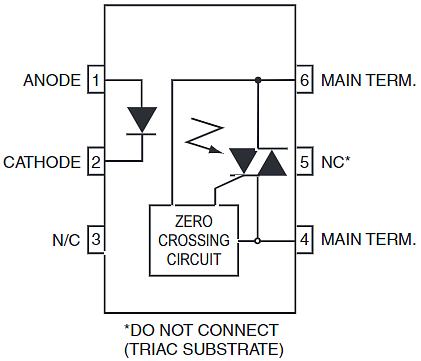

MOC3041XSM Typical application Circuitry

MOC3041XSM

The MOC3041XSM is a crucial component of the MOC3041 series, renowned for its integration in optoisolator triac driver circuits. This series is specifically designed to bridge a seamless interface between microcontroller-based or digital logic systems and AC power loads, thereby facilitating control over high-voltage components in a safe and isolated manner. The MOC3041XSM stands out for its utility in controlling AC power for a variety of applications, including home appliances, industrial controls, and office machines, where precise and safe control of high voltage is necessary.

1. Main Terminal Inputs (MT1, MT2): The MOC3041XSM is equipped with two main terminal inputs, MT1 and MT2, which are directly connected to the AC load. These terminals are crucial for the passage of the AC current, and their connection to the load must be carefully managed to ensure proper operation and safety.

2. Input LED (Anode, Cathode): The anode and cathode pins of the MOC3041XSM are connected to an internal LED, which when energized, activates the triac driver. This requires a forward current, typically sourced from a digital output pin of a microcontroller through a current-limiting resistor. This setup is pivotal for isolating the control circuit from the high-voltage AC side, enhancing the safety of the system.

3. Zero-Crossing Detection (ZC): The MOC3041XSM features a zero-crossing circuit that synchronizes the triac triggering with the AC waveform's zero-cross points. This function minimizes the generation of electrical noise and reduces inrush current, thereby extending the lifespan of the triac and the load. Connection to this feature requires no additional external components and is inherent in the MOC3041XSM's design, offering simplified implementation in AC control applications.

4. Triac Driver Output: The triac driver within the MOC3041XSM is activated when the internal LED is illuminated, allowing current to flow between the MT1 and MT2 terminals. This output stage is essential for driving the external triac, which in turn controls the AC load. Proper selection and connection of the external triac are crucial to match the load requirements and ensure reliable operation.

5. Optical Isolation Barrier: The MOC3041XSM provides an optical isolation barrier between the input LED and the triac driver output. This barrier ensures that any high-voltage surges or noise on the AC side do not affect the low-voltage control side, thereby protecting sensitive microcontroller circuits or digital logic from high-voltage transients.

6. Package and Mounting Considerations: The MOC3041XSM is available in a compact, optically isolated package that facilitates easy integration into PCB designs. Paying attention to the layout, especially the separation between the low-voltage and high-voltage sides, is essential for maintaining the isolation integrity and ensuring the overall safety and reliability of the application.

The integration of the MOC3041XSM into electronic circuits requires meticulous attention to each pin's function and their appropriate connections, ensuring the isolation and control capabilities of the MOC3041XSM are fully leveraged. With its inherent zero-crossing feature, optical isolation, and triac-driving capability, the MOC3041XSM offers a versatile and reliable solution for controlling AC loads in a wide array of applications, embodying the series' commitment to providing safe and efficient control solutions for interfacing with high-voltage power systems.
