ON Semiconductor MOC3041TVM

Part No.:: MOC3041TVM

Manufacturer:: ON Semiconductor

Package:: 6-DIP (0.400, 10.16mm)

Datasheet:: MOC3041TVM.pdf

Description:: OPTOISOLATOR 4.17KV TRIAC 6DIP

In Stock:: 3392

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3041TVM Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
OutputType:
Triac
ZeroCrossingCircuit:
Yes
NumberofChannels:
1
Voltage-Isolation:
4170Vrms
Voltage-OffState:
400 V
StaticdV/dt(Min):
1kV/µs
Current-LEDTrigger(Ift)(Max):
15mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
400µA (Typ)
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.25V
Current-DCForward(If)(Max):
60 mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

MOC3041TVM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3041TVM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3041TVM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3041TVM information

Views：

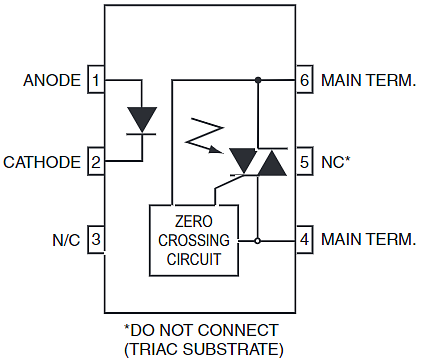

MOC3041TVM Typical application Circuitry

MOC3041TVM

The MOC3041TVM is a distinguished member of the MOC3041 series, renowned for its optoisolators that incorporate a zero-crossing circuit and a phototriac output. This particular model is adept at providing electrical isolation between low-voltage, microcontroller-based circuits and high-voltage AC loads, making it an indispensable component in applications like AC phase control, motor control, and lighting systems where electrical safety and noise minimization are paramount.

1. Input Side (LED Anode and Cathode): At the heart of the MOC3041TVM's input side is an infrared LED. When forward biased, this LED emits light, activating the device. The anode should be connected to a positive voltage through a current-limiting resistor, while the cathode connects to the ground. It's imperative to maintain the LED's forward current within specified limits to ensure optimal performance without compromising the LED's longevity.

2. Optical Isolation Barrier: The MOC3041TVM boasts an optical isolation barrier that separates the input LED from the output phototriac, maintaining electrical isolation between control signals and the powered AC circuit. This barrier is crucial for protecting sensitive microcontroller circuits from high-voltage transients, providing up to 7500V peak isolation.

3. Output Phototriac (MT1, MT2): The output configuration of the MOC3041TVM features a phototriac capable of driving AC loads directly. Connection of the main terminals, MT1 and MT2, to the AC load is critical. MT1 typically connects to the neutral line, while MT2 connects through the load to the live AC line. Proper orientation and connection of these terminals are essential for the MOC3041TVM to control the AC load effectively.

4. Zero-Crossing Functionality (ZC): A hallmark of the MOC3041TVM is its zero-crossing functionality, which ensures that the phototriac is triggered only as the AC waveform crosses zero volts. This feature significantly reduces electromagnetic interference (EMI) and mitigates inrush currents, making the MOC3041TVM ideal for applications requiring smooth control over AC loads, such as dimming lighting or adjusting motor speeds.

Incorporating the MOC3041TVM into a design necessitates meticulous attention to the connection details of each pin, ensuring that the optical isolation is maintained and that the AC load is managed safely and efficiently. The MOC3041TVM exemplifies the MOC3041 series' commitment to providing advanced solutions for safely interfacing low-voltage control circuits with high-voltage AC loads, offering designers a reliable and efficient means of controlling a wide range of AC-powered applications.
