What is the Additional Feature ?

Name: MOC3023X
Brand: Isocom Components 2004 LTD
SKU: MOC3023X
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Isocom Components 2004 LTD MOC3023X

Part No.:: MOC3023X

Manufacturer:: Isocom Components 2004 LTD

Package:: 6-DIP (0.300, 7.62mm)

Datasheet:: MOC3023X.pdf

Description:: OPTOISOLATOR 5.3KV TRIAC 6DIP

In Stock:: 3760

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3023X Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
OutputType:
Triac
ZeroCrossingCircuit:
No
NumberofChannels:
1
Voltage-Isolation:
5300Vrms
Voltage-OffState:
400 V
StaticdV/dt(Min):
10V/µs (Typ)
Current-LEDTrigger(Ift)(Max):
5mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
100µA
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.2V
Current-DCForward(If)(Max):
50 mA
OperatingTemperature:
-40°C ~ 100°C
MountingType:
Through Hole

MOC3023X this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3023X price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3023X to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3023X information

Views：

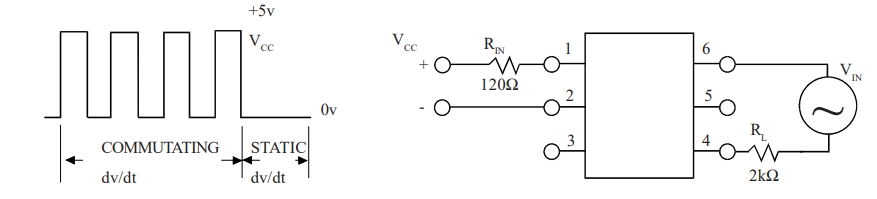

MOC3023X Typical application Circuitry

MOC3023X

The MOC3023X is an optocoupler or optoisolator chip, part of the MOC3023 series, designed for interfacing electronic controls with power triacs. It is used in applications requiring electrical isolation between a low-power control signal and a high-power load, especially in AC power control contexts.

1. Applications: The MOC3023X is commonly used in scenarios such as light dimmers, motor speed controllers, and solid-state relays, where electrical isolation between control and power circuits is crucial.

2. Key Specifications: The MOC3023X features high input-to-output isolation voltage, low trigger current for its internal LED, and the ability to directly drive a triac.

For an application example, let's discuss using the MOC3023X in a motor speed control circuit.

Circuit Design with MOC3023X for Motor Speed Control:

1. Input Side Connection (LED, Pins 1 and 2): The MOC3023X has an internal infrared LED. Connect Pin 1 (anode) to a PWM (Pulse Width Modulation) output of a microcontroller through a current-limiting resistor, while Pin 2 (cathode) is connected to the microcontroller's ground.

2. Output Side Connection (Phototriac, Pins 4, 5, and 6): The output side is a phototriac. Connect Pin 6 (MT2) to the gate of an external power triac, and Pin 4 (MT1) to the AC motor.

3. External Triac Connection: The external power triac, linked to Pin 6 of the MOC3023X, handles the high current for the motor. Connect its MT2 terminal to the AC power supply, and the MT1 terminal to the motor.

4. Snubber Circuit: Including a snubber circuit across the external triac is recommended to handle voltage spikes and prevent false triggering.

Design considerations with the MOC3023X:

- Electrical Isolation: Ensure strict isolation between the control circuit (microcontroller) and the high-power motor circuit.

- LED Current Limitation: Use a resistor to limit the current through the MOC3023X's internal LED.

- Voltage Ratings: The MOC3023X and the external triac should have voltage ratings appropriate for the motor and the power supply.

- Thermal Management: Consider heat dissipation, especially in the external triac, in high-power applications.

- Snubber Circuit: Implementing a snubber circuit is crucial for enhanced protection and stability in the operation of the triac.

Using the MOC3023X in this manner allows for effective and safe control of high-power AC motors, leveraging its ability to provide necessary isolation between control and power circuits.

MOC3023X FAQ

1. How to order MOC3023X on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that MOC3023X is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the MOC3023X. All suppliers must pass our qualification reviews before they can publish their products including MOC3023X on icwhale.com; we pay more attention to the channels and quality of MOC3023X products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the MOC3023X price and inventory displayed accurate?

The price and inventory of MOC3023X fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of MOC3023X?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the MOC3023X we delivered, we will accept the replacement or return of the MOC3023X only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of MOC3023X.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
