Name: MOC3023SV-M
Brand: Fairchild Semiconductor
SKU: MOC3023SV-M
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Fairchild Semiconductor MOC3023SV-M

Part No.:: MOC3023SV-M

Manufacturer:: Fairchild Semiconductor

Package:: 6-SMD, Gull Wing

Datasheet:: MOC3023SV-M.pdf

Description:: TRIAC OUTPUT OPTOCOUPLER, 5300V

In Stock:: 2281

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3023SV-M Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Active
OutputType:
Triac
ZeroCrossingCircuit:
No
NumberofChannels:
1
Voltage-Isolation:
4170Vrms
Voltage-OffState:
400 V
StaticdV/dt(Min):
-
Current-LEDTrigger(Ift)(Max):
5mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
100µA (Typ)
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.15V
Current-DCForward(If)(Max):
60 mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

MOC3023SV-M this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3023SV-M price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3023SV-M to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3023SV-M information

Views：

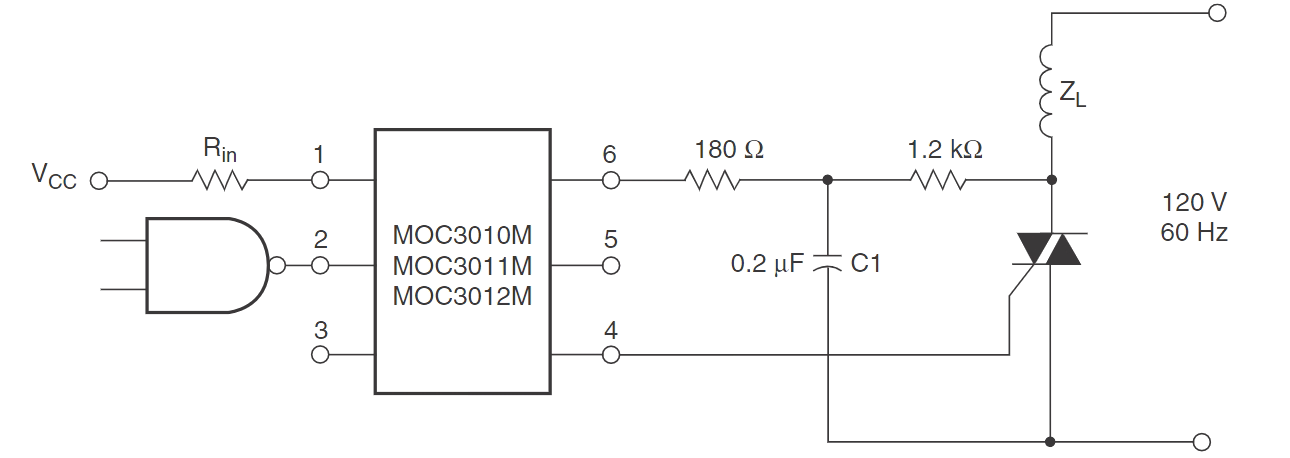

MOC3023SV-M Typical application Circuitry

MOC3023SV-M

The MOC3023SV-M is an optocoupler or optoisolator chip, a member of the MOC3023 series. It's designed to interface electronic controls with power triacs, providing electrical isolation between a low-power control circuit and a high-power load. This is particularly useful in AC power control applications.

1. Applications: The MOC3023SV-M is used in various scenarios such as light dimming systems, motor speed controllers, and solid-state relays, where controlling high-voltage or high-current AC loads using low-power control signals is necessary and electrical isolation is crucial.

2. Key Specifications: The MOC3023SV-M features high input-to-output isolation voltage, low trigger current for its internal LED, and the ability to directly drive a triac.

Let's discuss using the MOC3023SV-M in a light-dimming circuit.

Circuit Design with MOC3023SV-M for Light Dimming:

1. Input Side Connection (LED, Pins 1 and 2): The MOC3023SV-M contains an infrared LED. Connect Pin 1 (anode) to a digital or PWM output of a microcontroller through a current-limiting resistor. Connect Pin 2 (cathode) to the microcontroller's ground.

2. Output Side Connection (Phototriac, Pins 4, 5, and 6): The output side is a phototriac. Connect Pin 6 (MT2) to the gate of an external power triac, and Pin 4 (MT1) to one terminal of the AC load (light bulb).

3. External Triac Connection: The external power triac, connected to Pin 6 of the MOC3023SV-M, handles the main load current. Connect its MT2 terminal to the live AC supply, and the MT1 terminal to the light bulb.

4. Snubber Circuit: Including a snubber circuit across the external triac is recommended to prevent false triggering and voltage spikes.

Considering design using the MOC3023SV-M

- Electrical Isolation: Make that the high-power AC load and the low-power control circuit are properly isolated.

- LED Current Limitation: Use a resistor to limit the current through the MOC3023SV-M's LED.

- Voltage Ratings: The MOC3023SV-M and the external triac should have voltage ratings suitable for the application.

- Thermal Management: Pay attention to heat dissipation, especially in the external triac, for high-power applications.

- Snubber Circuit: A snubber circuit might be necessary for stable operation and protection of the triac.

Using the MOC3023SV-M in this manner enables effective and safe control of high-power AC loads, providing necessary isolation between control and power circuits.
