Lite-On Inc. MOC3023S-TA

Part No.:: MOC3023S-TA

Manufacturer:: Lite-On Inc.

Package:: 6-SMD, Gull Wing

Datasheet:: MOC3023S-TA.pdf

Description:: OPTOISOLATOR 5KV TRIAC 6SMD

In Stock:: 3570

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3023S-TA Specifications

Packaging:
Tape & Reel (TR)
Series:
MOC302x
ProductStatus:
Active
OutputType:
Triac
ZeroCrossingCircuit:
No
NumberofChannels:
1
Voltage-Isolation:
5000Vrms
Voltage-OffState:
400 V
StaticdV/dt(Min):
1kV/µs
Current-LEDTrigger(Ift)(Max):
5mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
250µA (Typ)
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.15V
Current-DCForward(If)(Max):
50 mA
OperatingTemperature:
-40°C ~ 100°C
MountingType:
Surface Mount

MOC3023S-TA this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3023S-TA price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3023S-TA to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3023S-TA information

Views：

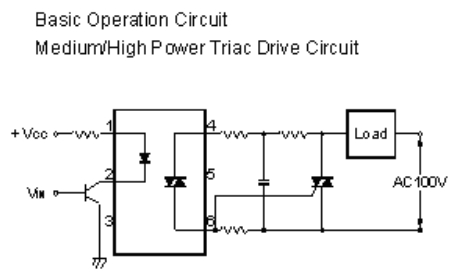

MOC3023S-TA Typical application Circuitry

MOC3023S-TA

The MOC3023S-TA is an optocoupler or optoisolator chip, which is part of the MOC3023 series. It is specifically designed to interface electronic controls with power triacs, suitable for controlling high-voltage or high-current AC loads with electrical isolation.

1. Applications: The MOC3023S-TA is typically used in AC power control applications such as light dimmers, motor speed controllers, and solid-state relays, where isolation between control and power circuits is essential.

2. Key Specifications: The MOC3023S-TA features high input-to-output isolation voltage, low LED trigger current, and the capability to directly drive a triac.

Let's consider using the MOC3023S-TA in a light dimming circuit as an application example.

Circuit Design with MOC3023S-TA for Light Dimming:

1. Input Side Connection (LED, Pins 1 and 2): The MOC3023S-TA contains an infrared LED. Connect Pin 1 (anode) to a PWM (Pulse Width Modulation) output of a microcontroller through a current-limiting resistor, and Pin 2 (cathode) to the microcontroller's ground.

2. Output Side Connection (Phototriac, Pins 4, 5, and 6): The output side is a phototriac. Connect Pin 6 (MT2) to the gate of an external power triac, and Pin 4 (MT1) to the AC load (light bulb).

3. External Triac Connection: The external power triac, connected to Pin 6 of the MOC3023S-TA, handles the main load current. Connect its MT2 terminal to the live AC supply, and the MT1 terminal to the light bulb.

4. Snubber Circuit: It's advisable to include a snubber circuit across the external triac to prevent false triggering and manage voltage spikes.

Design considerations with the MOC3023S-TA:

- Electrical Isolation: Ensure proper isolation between the low-power control circuit (microcontroller) and the high-power AC load.

- LED Current Limitation: Use a resistor to limit the current through the MOC3023S-TA's LED to prevent damage.

- Voltage Ratings: The MOC3023S-TA and the external triac should have voltage ratings suitable for the application.

- Thermal Management: Pay attention to heat dissipation, especially in the external triac, for high-power applications.

- Snubber Circuit: Consider including a snubber circuit for stable operation and protection of the triac.

In summary, the MOC3023S-TA is effectively utilized in light dimming applications, offering necessary isolation while controlling high-power AC loads.
