Name: MOC3021TM
Brand: Fairchild Semiconductor
SKU: MOC3021TM
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Fairchild Semiconductor MOC3021TM

Part No.:: MOC3021TM

Manufacturer:: Fairchild Semiconductor

Package:: 6-DIP (0.400, 10.16mm)

Datasheet:: MOC3021TM.pdf

Description:: TRIAC OUTPUT OPTOCOUPLER

In Stock:: 3447

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MOC3021TM Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
OutputType:
Triac
ZeroCrossingCircuit:
No
NumberofChannels:
1
Voltage-Isolation:
4170Vrms
Voltage-OffState:
400 V
StaticdV/dt(Min):
-
Current-LEDTrigger(Ift)(Max):
15mA
Current-OnState(It(RMS))(Max):
-
Current-Hold(Ih):
100µA (Typ)
TurnOnTime:
-
Voltage-Forward(Vf)(Typ):
1.15V
Current-DCForward(If)(Max):
60 mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

MOC3021TM this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MOC3021TM price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MOC3021TM to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

MOC3021TM information

Views：

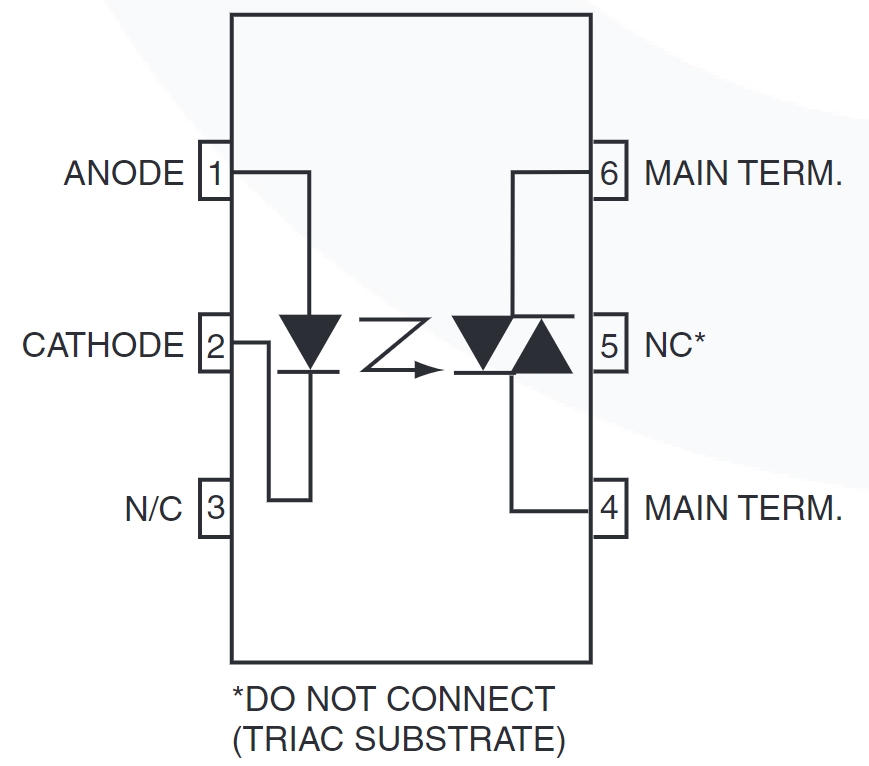

MOC3021TM Typical application Circuitry

MOC3021TM

The MOC3021TM is a specialized optoisolator chip used for controlling power to a load while maintaining electrical isolation between the control circuit and the load.

Functionality: The MOC3021TM optoisolator is pivotal in applications requiring control of AC power while ensuring that the control and load circuits are electrically isolated.

Application Scenario: It is commonly used in motor control systems, solid-state relays, and other applications where the control of high voltages and currents is required while maintaining electrical isolation.

Key Specifications: The device features a gallium arsenide infrared LED and a silicon bilateral switch, ensuring rapid response and high efficiency while minimizing the input current requirements.

Detailed Application in a Solid-State Relay

1. LED Connection:

- Forward Bias: The MOC3021TM's pin 1 (anode) should be connected to the positive terminal of the control signal source, and pin 2 (cathode) to the negative terminal.

- Current Limiting: To keep an LED from drawing too much current and burning out, connect a current limiting resistor in series with it.

2. Output of Triac Driver:

- Connection Orientation: Pin 6 (main terminal) should be connected to one end of the AC load, while pin 4 (main terminal) should be connected to the AC power source.

- Isolation: Ensure there is no direct electrical connection between the input and output terminals to maintain electrical isolation.

3. Zero Crossing Detection:

- Connection Consideration: Though MOC3021TM does not have built-in zero-crossing detection, it can be connected to a zero-crossing detection circuit to enhance efficiency and reduce noise.

- Noise Reduction: By guaranteeing that switching takes place at the AC waveform's zero-crossing point, electromagnetic interference and noise are reduced.

4. Circuit Snubber:

- Integration Need: A snubber circuit connected across pins 4 and 6 of the MOC3021TM is crucial to absorb voltage spikes and prevent false triggering.

- Component Selection: The snubber typically consists of a series resistor and capacitor; values should be chosen based on the specific load and application requirements.

Design Considerations

1. Electrical Isolation:

- Material Use: The MOC3021TM should be mounted in a manner that maximizes the physical and electrical separation between the input and output terminals.

- Safety Protocols: Adherence to safety standards and regulations is essential to prevent electrical shocks and ensure user safety.

2. Thermal Management:

- Heat Dissipation: Effective heat dissipation mechanisms should be in place to ensure that MOC3021TM operates within the safe temperature range.

- Environment Monitoring: Monitor the operating environment to prevent overheating and ensure optimal performance.

3. Testing and Validation:

- Performance Check: Regular tests should be conducted to validate the performance of MOC3021TM and the entire circuit.

- Quality Assurance: To guarantee the dependability and longevity of the application, every component needs to be of the highest caliber.

The MOC3021TM stands as a robust choice for applications demanding precise AC power control with the added benefit of electrical isolation. Ensuring proper connection, adhering to safety standards, and incorporating effective thermal management is key to harnessing the full potential of this optoisolator:
